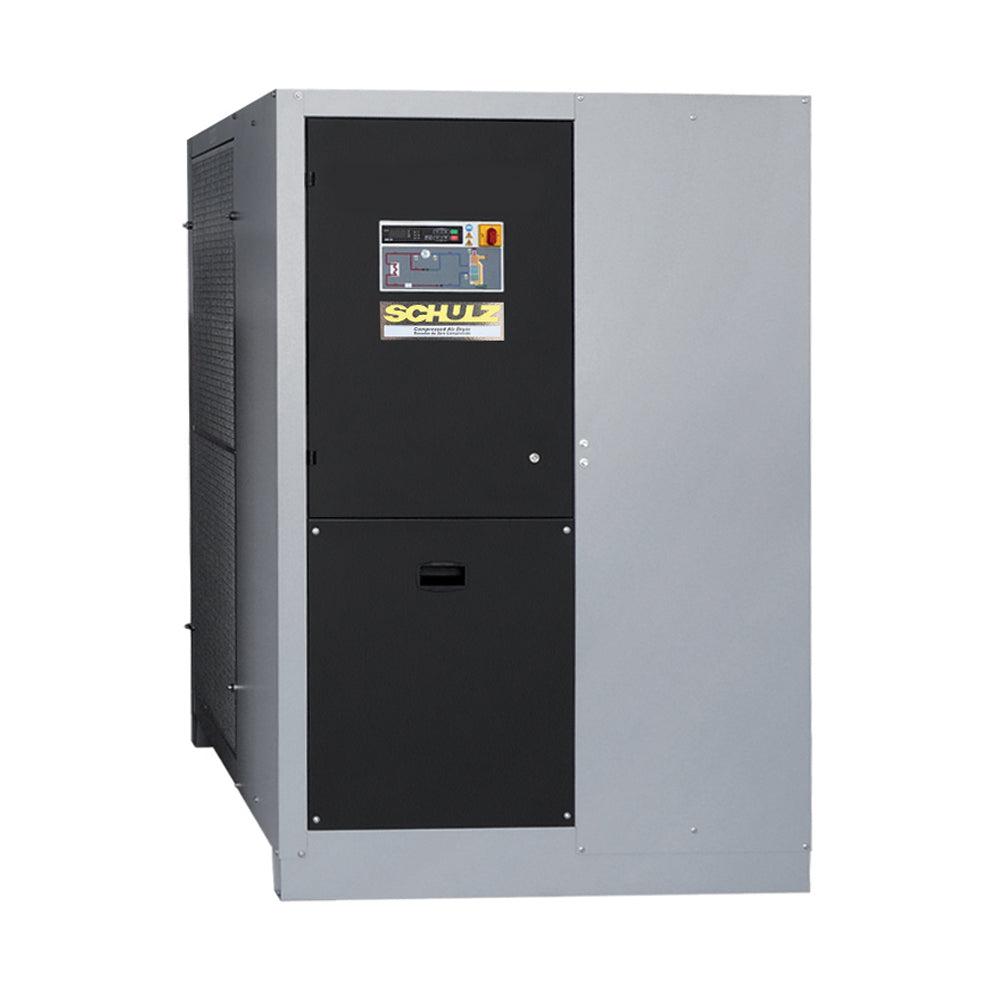

Schulz high-capacity dryers have been developed for applications requiring airflow above 500 cfm and inlet temperature up to 160 °F and room temperature up to 120 °F. The cooling system of this dryer uses aluminum to increase its performance. The digital controller, innovative hot gas by-pass valve and zero loss system ensure stable dew point under different load conditions. Removable panels facilitate easy and quick access to internal components and the scheduled management function for maintenance operations provides greater user convenience. The large sections of air flow through the dryer enable extremely low load losses which, combined with the scroll compressor, emit less noise and reduce the system’s power consumption. Select the best option for your company.
SACT HIGH CAPACITY AIR DRYERS ALUMINIUM TECHNOLOGIES DIRECT TO ENERGY SAVING
DMC 24 Digital Controller
ALU-DRY aluminium heat exchanger
High efficiency compressor
Tropicalised air condenser
Condenser protection filter
High efficiency fan(s)
Water condenser
High discharge temperature switch
Automatic condensing pressure control
High and low refrigerant safety pressure switch
Automatic hot gas bypass control
Zero loss drain
Schulz improves it’s range of compressed air dryers with the development of the SACT series (Aluminium Cooling Technology), focused to reduce energy consumption.
Main feature are:
Low pressure drop even with load variances;
Low power consumption thanks to the ALU-DRY heat exchanger, high efficiency compressors, innovative hot gas bypass valve and zero loss drain condensate system; - Constant pressure Dew Point with differing load conditions; - Functionally even at maximum working conditions (air inlet 160°F and ambient 120°F).
Model
SACT500-UR
Flow (CFM)
500
Connection (in)
2-1/2" NPT
Voltage (V)
460
Refrigerant Fluid
R407C
Drain Type
BM
Frequency (Hz)
60
Phase
Three
