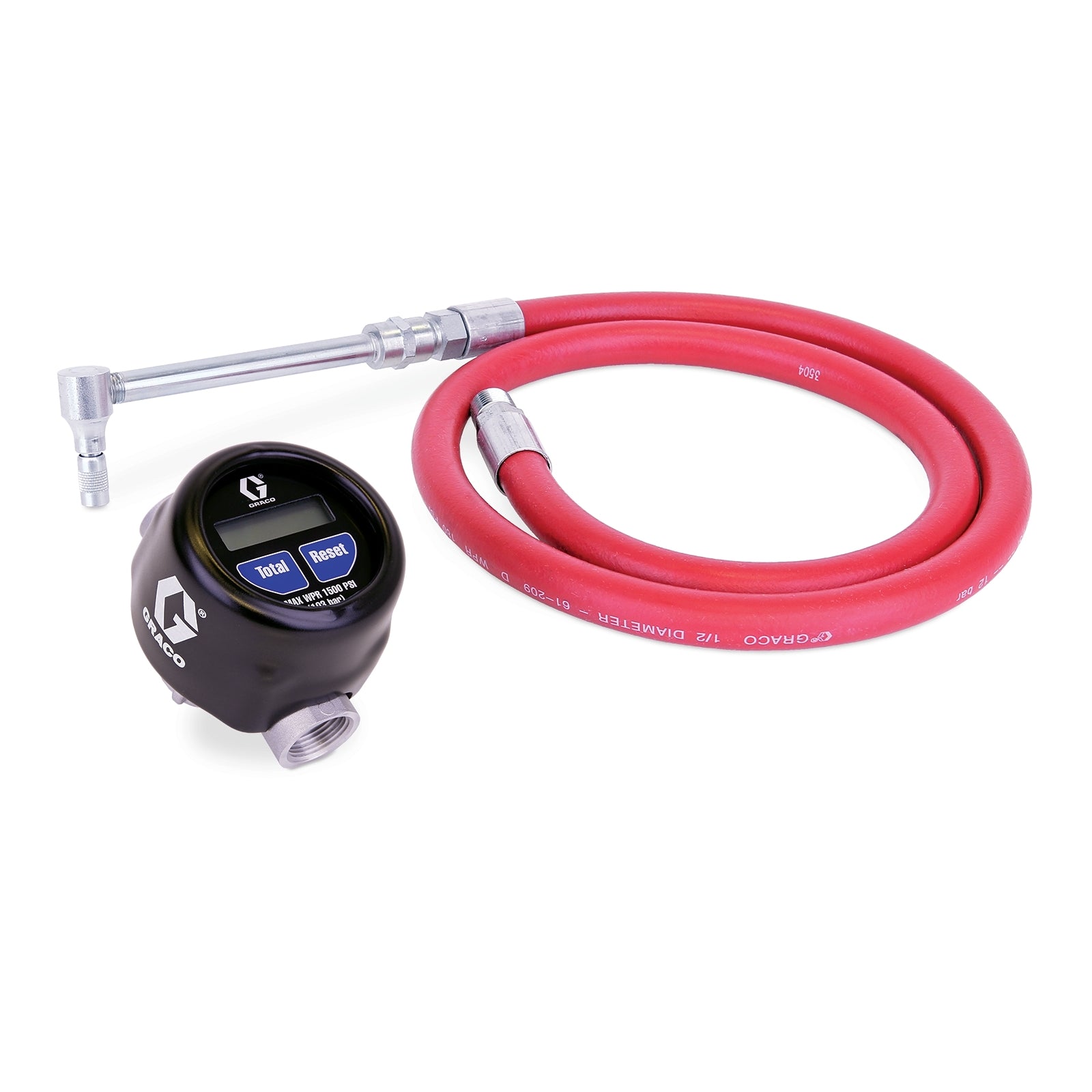

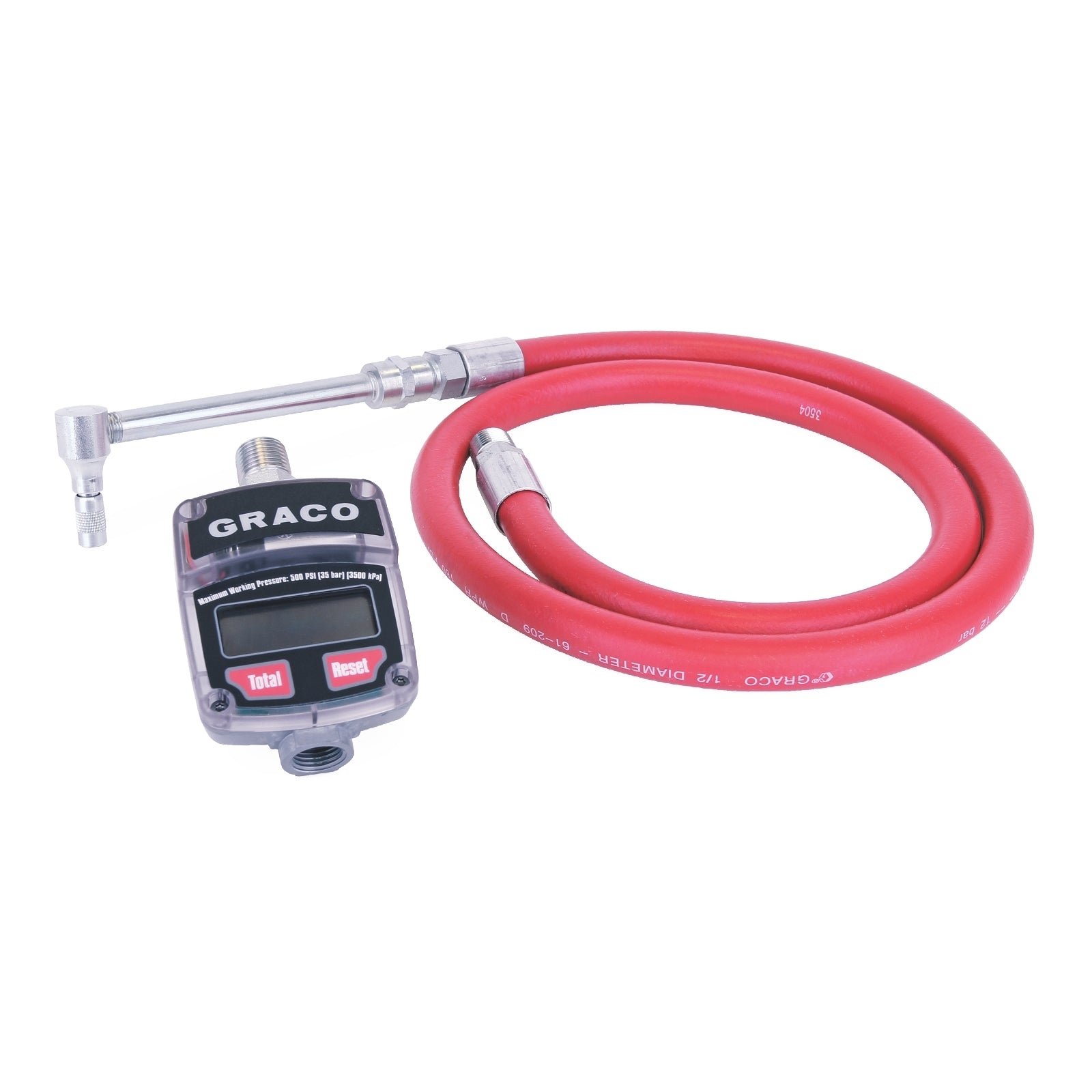

Graco 16 Gallon (60 L) Gear Lube Meter Dispense Kit
Graco 16 Gallon (60 L) Gear Lube Meter Dispense Kit

Graco 16 Gallon (60 L) Gear Lube Meter Dispense Kit

Regular price
$1,062.50
Sale price
$1,062.50
Quantity must be 1 or more


These durable, easy-to-use in-line electronic dispense meters are designed with automotive dealerships, fast lube centers, and service shops in mind.

Typical applications include automotive, fast lube centers, service shops, fleet service facilities, and in-plant.

  • Rugged stainless steel body remains corrosion free in hard environments for years of trouble-free service.
  • Large, easy-to-read LCD display show dispense quantities.
  • Heavy-duty construction for indoor or outdoor use.
  • Simple operator controls and measures in pints, quarts, liters or gallons.
  • Easy battery replacement, operates on single 9V alkaline battery.
  • Tracks totals in two modes: reset total for a periodic dispense history and non-reset total for the meter’s total dispense history.
  • Kit includes extension and nozzle for gear lube.
UPC Product: 00633955781191
Family Code: FAMMLD
Unit of Measure: EA
Height: 5 IN   |  12.7 CM
Length: 14.1 IN   |  35.814 CM
Width: 10.3 IN   |  26.162 CM
Volume: .42 FT3   |  .012 M3
Chargeable Weight: 4.75 LBS  | 2.15 KG

Technical Specifications

Battery Chemistry Alkaline
Battery Size 9 V
For Use With 非合成油和合成油(用于马达、齿轮和变速箱), Petroleum- and synthetic-based oils (motor, gear and ATF), Aceites minerales y sintéticos (motor, engranajes y ATF)
Inlet Size (cm) 1.27
Inlet Size (in) 0.5
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Working Pressure (bar) 34
Maximum Working Pressure (kPa) 3400
Maximum Working Pressure (psi) 500
Meter Accuracy (%) ±0.5
Unit of Measure Quart, Pint, Gallon, Liter
Weight (kg) 0.82
Weight (lb) 1.8
Wetted Material Nickel, Zinc, LCP, Nitrile Rubber
Type In-Line Meter Dispense Kit
Compatible Material Petroleum-Based Oil, Synthetic-Based Oil
Display Type Electronic
Valve Type Metered
Recommended Environment Indoor, Outdoor
Maximum Working Pressure (MPa) 3.4
Model LD
