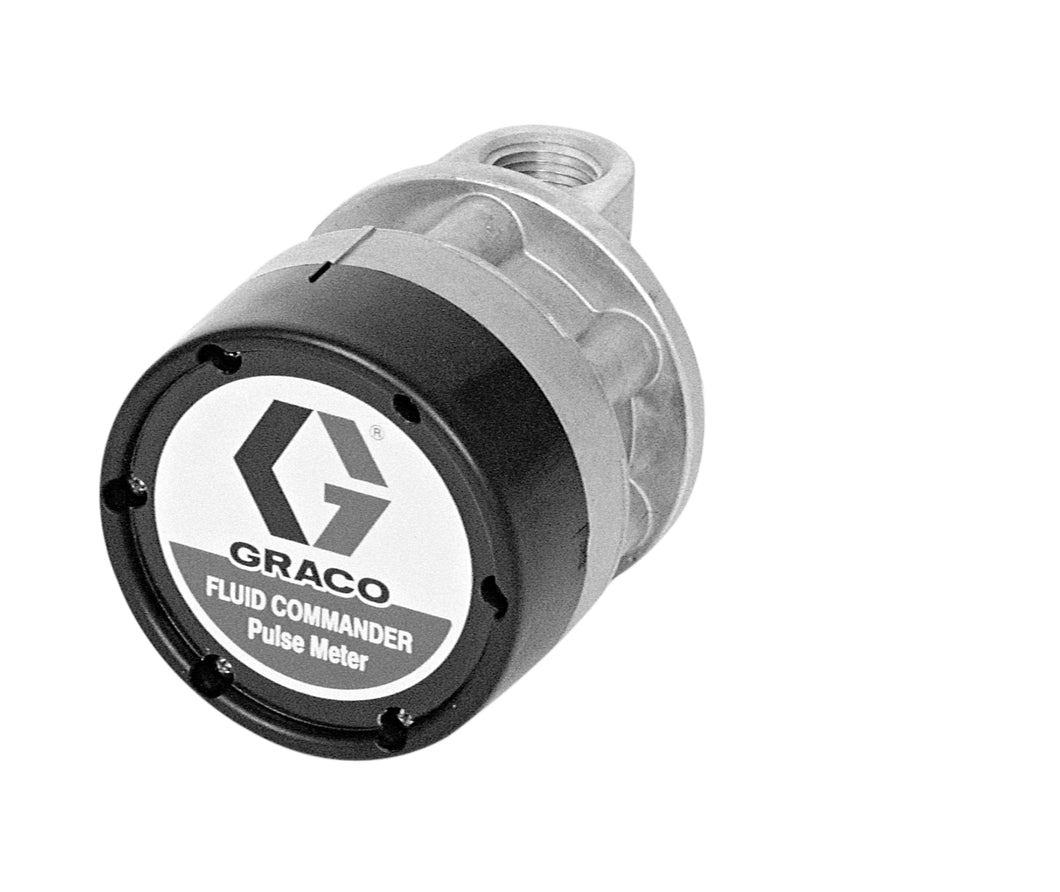

In-Line Meter with Pulse Output (Pints, Quarts, Gallons, Liters)

In-Line Meter with Pulse Output (Pints, Quarts, Gallons, Liters)

Regular price
$1,090.00
Sale price
$1,090.00
Quantity must be 1 or more


Accurately measure dispenses of petroleum- and synthetic-based oils (motor, gear and ATF.)

Typical applications include service shops, Heavy-duty dealerships, and Fleet service facilities.

  • Provide pulse signal output.
  • Measures in pints, quarts, or gallons.
UPC Product: 00633955733992
Family Code: FAMCTR
Unit of Measure: EA
Height: 6 IN   |  15.24 CM
Length: 6 IN   |  15.24 CM
Width: 12 IN   |  30.48 CM
Volume: .25 FT3   |  .007 M3
Chargeable Weight: 2.603 LBS  | 1.18 KG

Technical Specifications

Inlet Size (cm) 1.27
Inlet Size (in) 0.5
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 12
Maximum Flow Rate (L/min) 45.6
Maximum Working Pressure (bar) 103
Maximum Working Pressure (kPa) 10300
Maximum Working Pressure (psi) 1500
Unit of Measure Pint, Quart, Gallon, Liter
Type Electronic In-Line Meter
Maximum Working Pressure (MPa) 10.3
