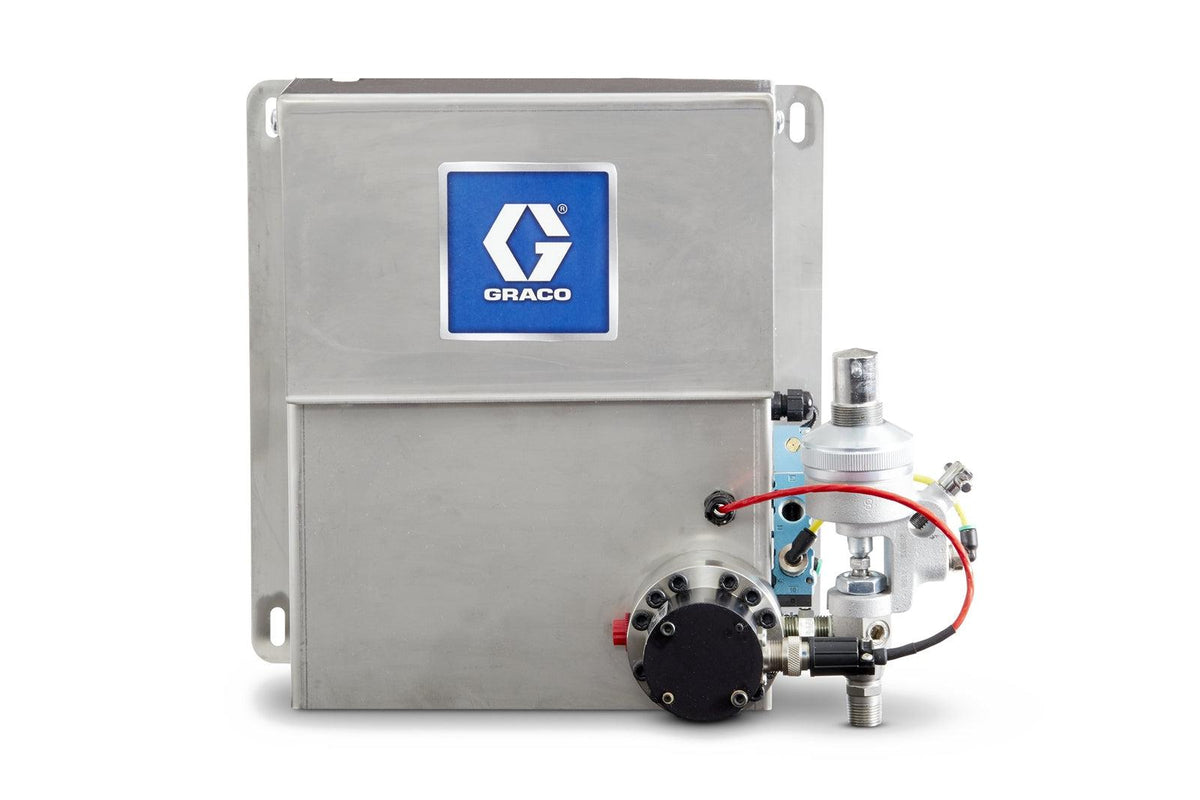

This fluid panel kit for the ProDispense Electronic Preset Dispense System is ideal for grease and paint applications.
For grease and paint applications
Feel free to call or chat with us for recommendations.
📦
Ships in 2-3 weeks, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
UPC Product: 00755652369738
Family Code: FAMPDS
Unit of Measure: EA
Height: 17.5 IN | 44.45 CM
Length: 19.25 IN | 48.895 CM
Width: 38.735 CM | 15.25 IN
Volume: 2.973 FT3 | .084 M3
Chargeable Weight: 30.948 LBS | 14.031 KG
Technical Specifications
| For Use With | G3000 流量计, G3000 メーター, G3000 meter, Medidor G3000, G3000 유량계 |
|---|---|
| Type | Fluid Panel |
| Weight (kg) | 8.4 |
| Weight (lb) | 18.5 |
| Air Inlet Size (in) | 5/32 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | Push |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Maximum Air Pressure (bar) | 7.03 |
| Maximum Air Pressure (kPa) | 703 |
| Maximum Air Pressure (psi) | 102 |
| Maximum Flow Rate (cc/min) | 3800 |
| Maximum Flow Rate (GPM) | 1 |
| Maximum Flow Rate (L/min) | 3.8 |
| Minimum Flow Rate (GPM) | 0.02 |
| Maximum Working Pressure (psi) | 3000 |
| Maximum Working Pressure (bar) | 207 |
| Model | ProDispense |
