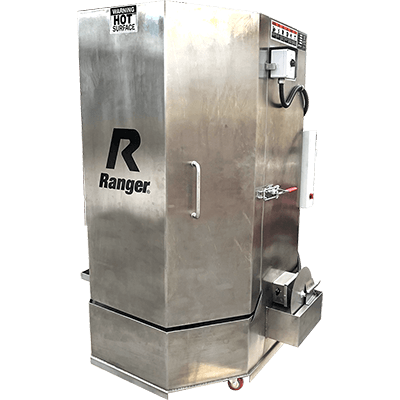

RS-500DS (5155051) Stainless Steel Spray Wash Cabinet / Dual-Heaters / Low-Water Shutoff
The stainless-steel Ranger RS-500DS spray wash cabinet will rapidly degrease all of the dirty parts in your garage. From larger truck and SUV engine components, to even your smallest nuts and bolts, this 50-gallon capacity parts washer will make your car parts shine like new!
Features
- Heavy-duty stainless steel construction
- Safe aqueous operation: No harsh chemicals
- 50 gallon tank
- Dual water heaters for quick startup
- Heated cabinet w/ adjustable thermostat
- High-power spray jets clean parts fast
- Automatic low water shutoff
- Removable tank screen
- Stainless oil skimmer
- Removable parts tree
- Powder coat finish
- Stainless steel nozzles
- Full opening octagonal door
- Large drain pipe
- Heavy-duty casters
- Friction-drive turntable system
- Neoprene-sealed wash cabinet
- Contamination-proof interior welds
- Gasket-free door
- Small parts basket
- Stainless steel handles
- Free bucket and soap included
| Overall height: | 66" (1,676 mm) |
| Inside height: | 43" (1,092 mm) |
| Inside width: | 32" (813 mm) |
| Turntable diameter: | 30" (762 mm) |
| Tank capacity: | 50 gallons |
| Load capacity: | 500 lbs. (227 kg) |
| Cycle timer: | 0 - 60 min |
| Recommended floor space: | 44" x 43" (1,118 mm x 1,092 mm) |
| Brass nozzles: | 18 |
| Steel construction: | 12 Gauge / .109 thickness |
| Pump output: | 75 psi @ 70 gpm |
| Motor: |
1 HP / 208-230V / 60 Hz / 1 Ph or 3 HP / 380-415V / 50 Hz / 3 Ph
|
| Electric heater: | 6 kW |
| Water temperature: | 160° - 180° F (71° - 82° C) |
| Shipping weight: | 670 lbs. (304 kg) |
| Shipping dimensions: | 46" x 46" x 68" (5155051 x 5155051 x 1,727 mm) |
