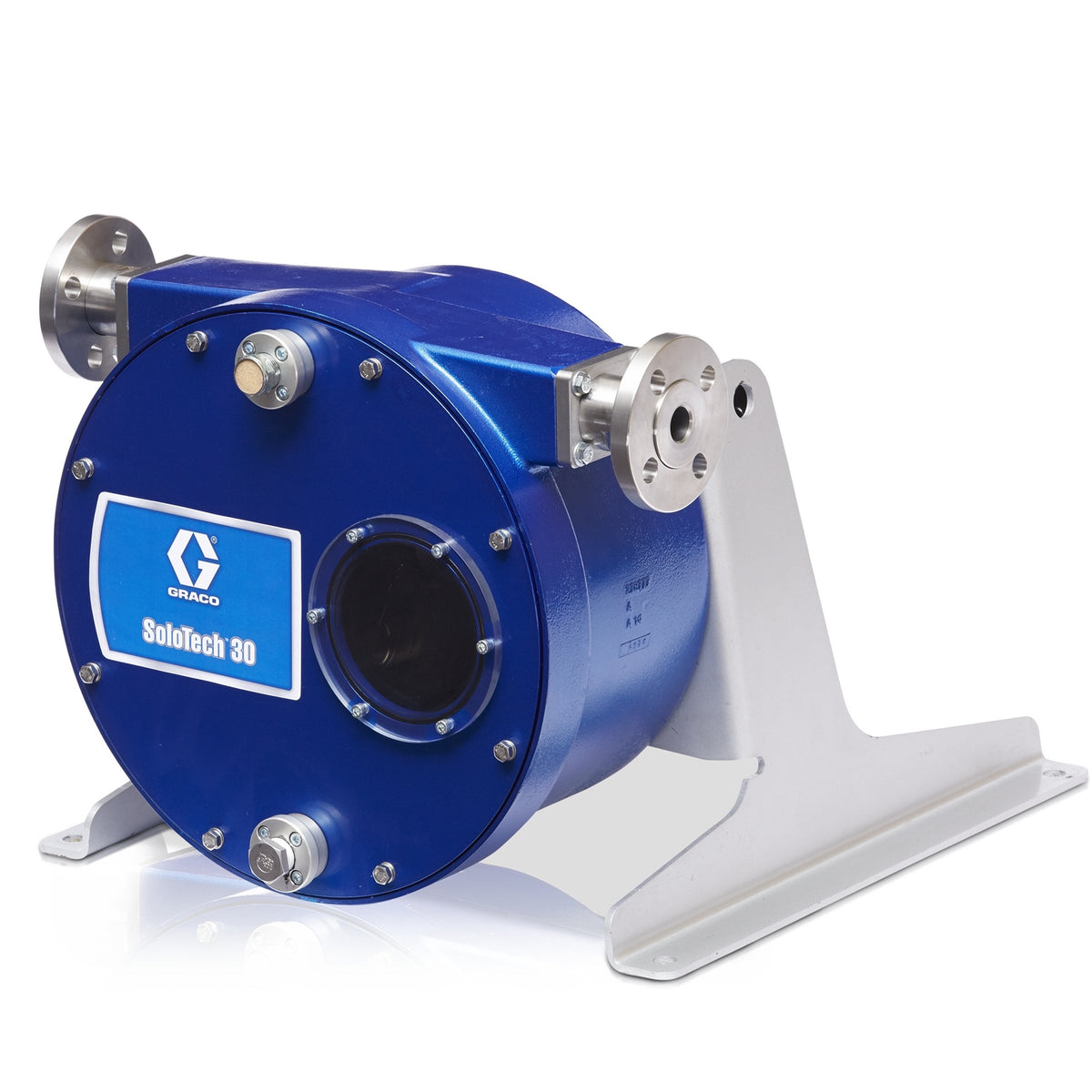

Graco’s SoloTech 30 Hose pump design utilises a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
Pump Construction
- Cast aluminium housing reduces pump weight
- Improved mounting flexibility with adjustable feet
-
Electric Motor
- Choose between AC and Brushless DC models
- Multiple gearbox offerings to meet your exact flow rate needs
- Hazardous location motors available
-
Brushless DC Motor
- Batch dispense mode
- Wider turndown ratio allows for larger flow range
- Maintenance reminders
-
Single Roller Design
- Single roller design improves hose life by reducing the number of compressions, temperature and friction
- Metallic roller with bearings provides constant compression and flow
-
Removable Cover
- Aluminium covers with larger sight window makes it easy to access and see internal parts
- Optional leak detector kit mounts on cover
-
Hose Barb Assembly
- Easy to install or remove – no special tools needed
- Available with PVDF and SST barbs options
- Floating flange for easy installation
- More flow per revolution than conventional designs
- Inexpensive to maintain - no valves, seals or glands
- Pumps are reversible and can be used to empty lines or clear blockages
- Extended hose life - only one hose compression per revolution
UPC Product: 00755652326489
Family Code: FAMPPP
Unit of Measure: EA
Height:
0 IN
| 0 CM
Length:
0 IN
| 0 CM
Width:
0 IN
| 0 CM
Volume:
0 FT3
| 0 M3
Chargeable Weight:
0 LBS
| 0 KG
Technical Specifications
| Type | Electric Peristaltic Pump |
|---|---|
| Application | Industrial |
| Barb Material | Stainless Steel |
| Flow Rate (GPM) | 16 |
| Gear Ratio | 19.13:1 |
| Hose Diameter (cm) | 3 |
| Hose Diameter (in) | 1.2 |
| Hose Diameter (mm) | 30 |
| Hose Material | Nitrile |
| Inlet Size (cm) | 3.2 |
| Inlet Size (in) | 1-1/4 |
| Inlet Size (mm) | 32 |
| Inlet Thread Type | Flange |
| Maximum Flow Rate (GPM) | 15.8 |
| Maximum Flow Rate (L/min) | 59.8 |
| Maximum Fluid Pressure (bar) | 9 |
| Maximum Fluid Pressure (kPa) | 900 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Storage Temperature (°C) | 40 |
| Maximum Storage Temperature (°F) | 104 |
| Minimum Flow Rate (GPM) | 2.675 |
| Minimum Storage Temperature (°C) | -10 |
| Minimum Storage Temperature (°F) | 14 |
| Model | SoloTech |
| Motor Type | High Speed, IEC Gearbox Only |
| Outlet Size (cm) | 12.5 |
| Outlet Size (in) | 4.92 |
| Outlet Size (mm) | 125 |
| Overall Width (cm) | 59 |
| Overall Width (in) | 23.3 |
| Overall Width (mm) | 592 |
| Pump Speed (RPM) | 15-91 |
| Series | i30 |
| Standards Met | ATEX, CE |
| Volume Per Cycle (gal) | 1.8 |
| Volume Per Cycle (L) | 7 |
| Housing Material | Powder Coated Aluminum |
