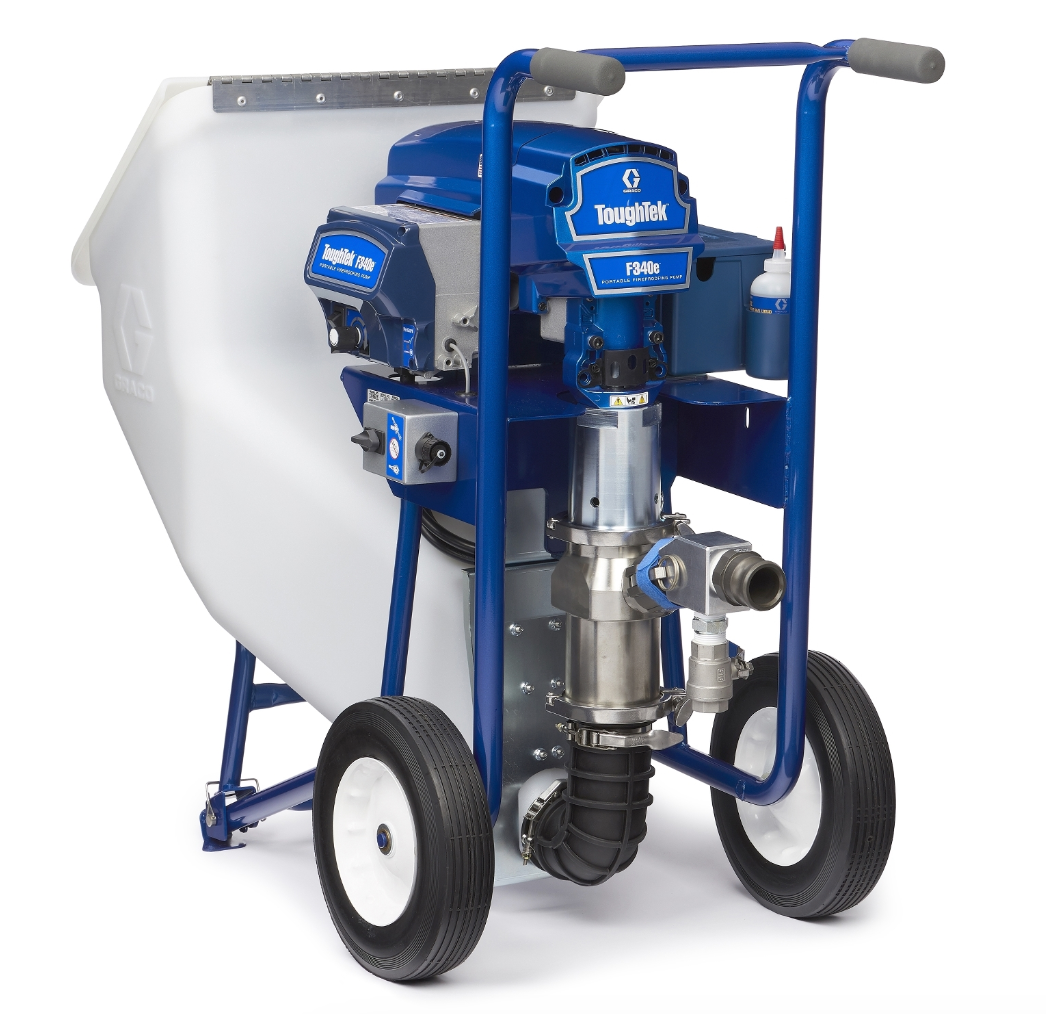

Engineered with Graco’s proprietary piston pump technology, the ToughTek F340e piston pump is perfect for small to medium jobs that spray up to 100 bags per day and is capable of producing pressures of up to 600 psi (41 bar) using an energy efficient direct drive electric motor. This high pumping pressure will allow your crew to spray up to 150 feet (46 m) from the machine and pump 15 bags per hour.
- Piston pump technology easily handles fireproofing materials
- Gets projects done faster with high-pressure performance
- Electric operation – plugs into a standard 120V, 15A wall outlet
- Long lasting wear parts for more uptime, less downtime
- Easy to use, simple to maintain
- Ideal for fireproofing over structural steel or spray foam insulation
- Built-in protection system continually monitors operation
- Dual LED indicators provide instant feedback while applying material
- Automatically shuts pump off to protect from thermal overload or excessive pressure
| TYPE | Electric Piston Pump |
|---|---|
| APPLICATION | Fireproofing |
| COMPATIBLE MATERIAL | Cementitious Material |
| FLUID OUTLET SIZE (IN) | 1-1/2 |
| FLUID OUTLET SIZE (MM) | 38.1 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| FLUID SECTION TYPE | 2-Ball |
| HOPPER CAPACITY (GAL) | 20 |
| INCLUDES | Remote On/Off Switch, Interruptor de encendido/apagado remoto |
| INPUT VOLTAGE (V AC) | 230 |
| MATERIAL | Fireproofing |
| MATERIAL OUTPUT (BAGS/HR) | 20 |
| MAXIMUM CONTINUOUS CYCLE RATE (CPM) | 150 |
| MAXIMUM FLOW RATE (GPM) | 12 |
| MAXIMUM FLOW RATE (L/MIN) | 24.61 |
| MAXIMUM HOSE LENGTH (FT) | 150 |
| MAXIMUM INPUT AMPERAGE (A) | 10 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 49 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 120 |
| MAXIMUM WORKING PRESSURE (BAR) | 41.3 |
| MAXIMUM WORKING PRESSURE (KPA) | 4130 |
| MAXIMUM WORKING PRESSURE (PSI) | 600 |
| MINIMUM OPERATING TEMPERATURE (°C) | 0 |
| MINIMUM OPERATING TEMPERATURE (°F) | 32 |
| MODEL | ToughTek |
| MOTOR TYPE | Brushless |
| PORTABLE | Portable |
| POWER RATING (HP) | 2 |
| SERIES | F340e |
| WEIGHT (LB) | 205 |
| WEIGHT (KG) | 93 |
| MAXIMUM WORKING PRESSURE (MPA) | 4.1 |
