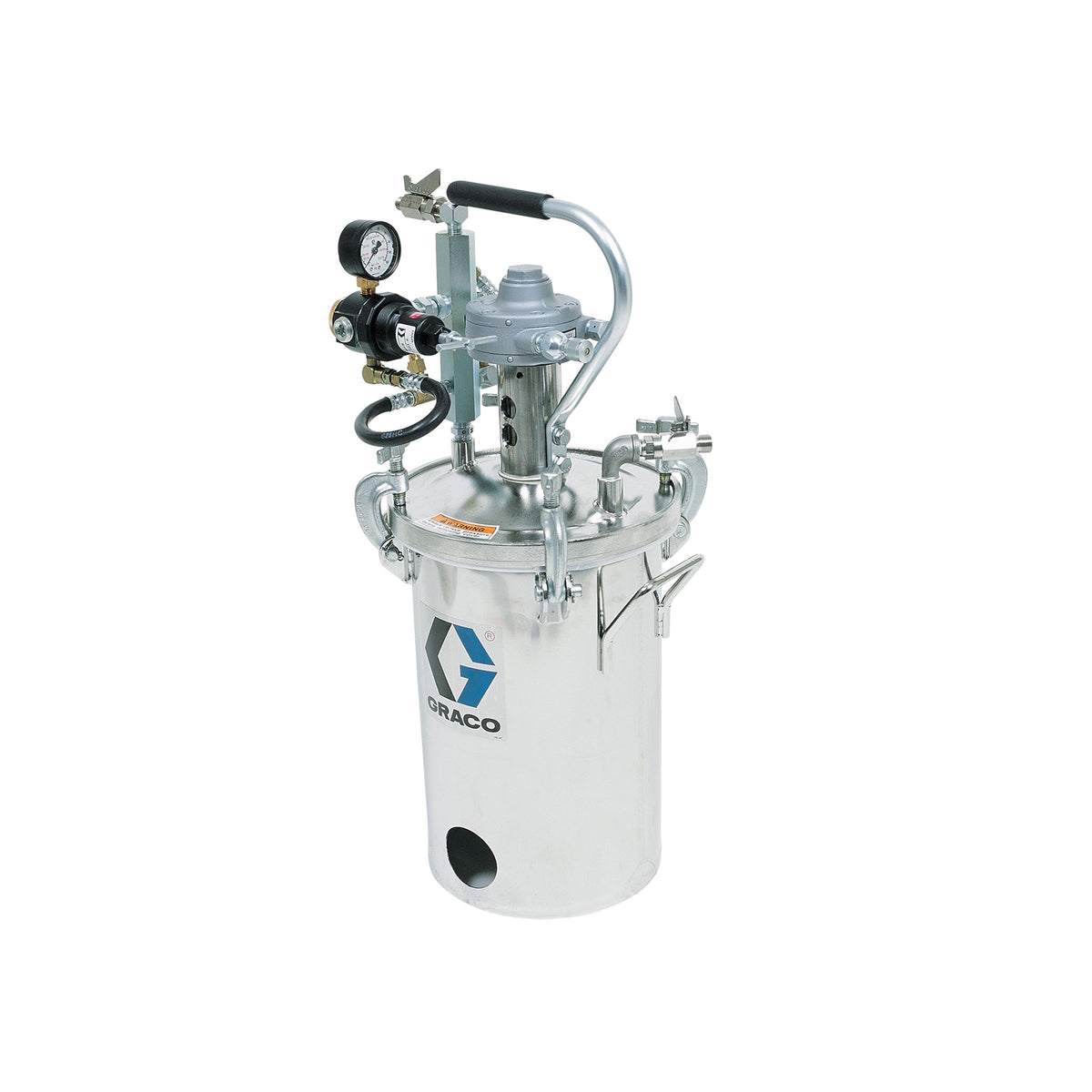

7,5 Litres Low Pressure (HVLP) Pot w/ Agitator, Regulated to 1 bar (15 psi), ASME Rated, 66 cm (26.0 in), 17 kg (38 lbs), SST

7,5 Litres Low Pressure (HVLP) Pot w/ Agitator, Regulated to 1 bar (15 psi), ASME Rated, 66 cm (26.0 in), 17 kg (38 lbs), SST

Regular price
$2,414.29
Sale price
$2,414.29
Quantity must be 1 or more


Designed with electroplated surfaces that prevent debris build-up and keep your operation free of contaminants, Graco pressure pots are precision-welded and surfaced.

  • ASME-rated to ensure it meets factory standards
  • High-quality stainless steel design is compatible with many materials
  • Use in stand-alone spraying, material/catalyst supply, or as a moisture-sensitive material reservoir
UPC Product: 00633955377158
Family Code: FAMQFP
Unit of Measure: EA
Height: 27.6 IN   |  70.104 CM
Length: 15.6 IN   |  39.624 CM
Width: 15.6 IN   |  39.624 CM
Volume: 3.887 FT3   |  .11 M3
Chargeable Weight: 45 LBS  | 20.41 KG

Technical Specifications

Includes アジテーター, Agitator, Agitator, Agitateur, Agitador, 교반기, Rührwerk, Roerwerk, Agitatore
Inlet Size (cm) 0.635
Inlet Size (in) 1/4
Inlet Size (mm) 6.35
Inlet Thread Type NPT
Maximum Volume Capacity (gal) 2
Maximum Volume Capacity (L) 8
Maximum Working Pressure (bar) 1
Maximum Working Pressure (kPa) 100
Maximum Working Pressure (psi) 15
Outlet Size (cm) 0.9525
Outlet Size (in) 3/8
Outlet Size (mm) 9.525
Outlet Thread Type NPSM
Overall Height (cm) 66
Overall Height (in) 26
Overall Height (mm) 660
Overall Width (cm) 33.3
Overall Width (in) 13.125
Overall Width (mm) 333
Weight (kg) 17.4
Weight (lb) 38.25
Wetted Material Stainless Steel, Polypropylene, Santoprene
Type Tank
Inlet Thread Gender Male
Maximum Working Pressure (MPa) 0.1

;
