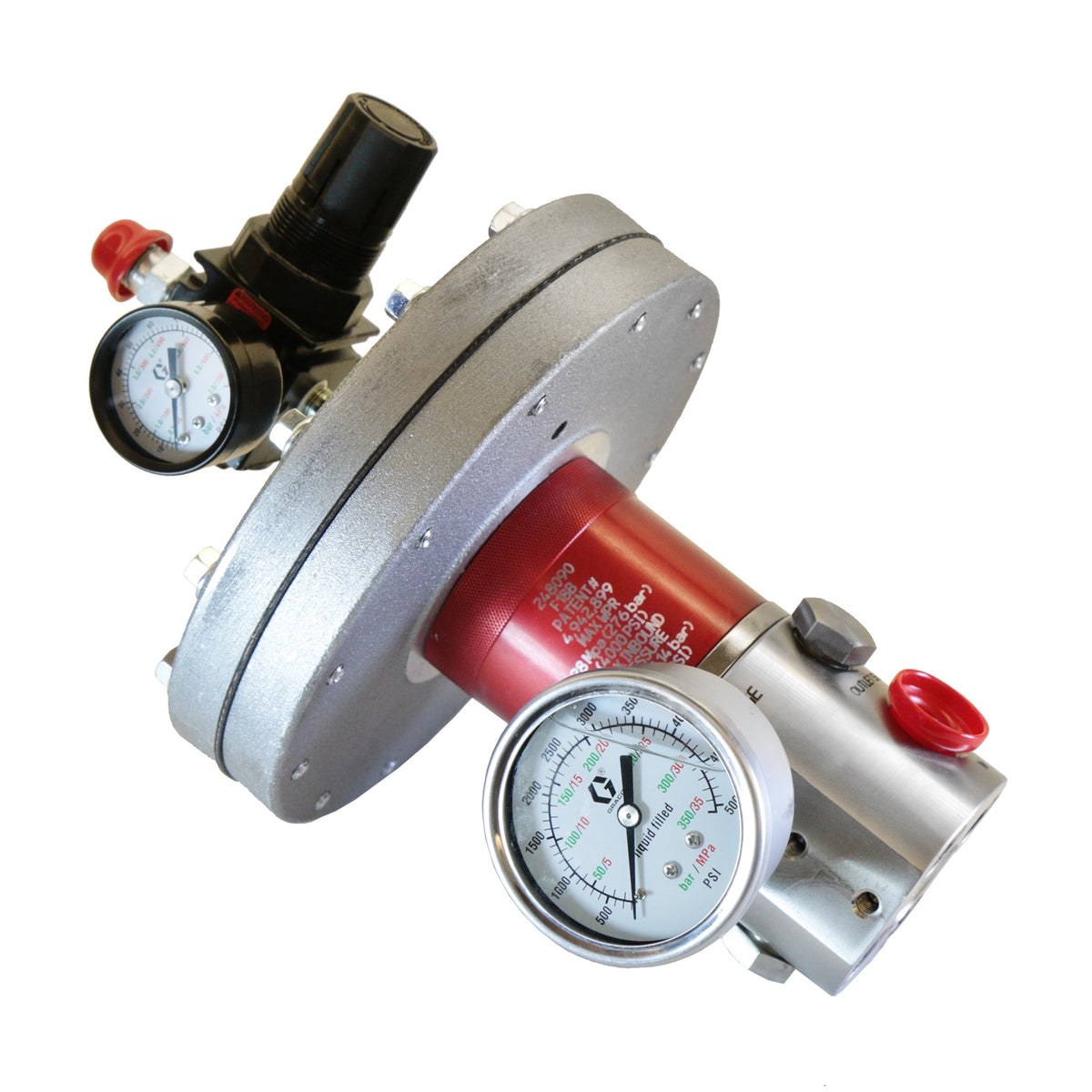

Air-Operated Fluid Pressure Regulator

Air-Operated Fluid Pressure Regulator

Regular price
$2,428.57
Sale price
$2,428.57
Quantity must be 1 or more


For a balanced fluid system, pressure control is essential. Graco provides a wide selection of fluid pressure regulators to keep your system functioning more productively by providing rugged, precise pressure regulation.

  • Compatible with catalyst and waterborne materials
  • Manual or air-operated
  • Tungsten and carbide materials to resist wear
  • Valve cartridge for quick cleaning and replacement
  • Compact and lightweight – perfect for spray packages
UPC Product: 00633955038332
Family Code: FAMAPA
Unit of Measure: EA
Height: 18 IN   |  45.72 CM
Length: 10.8 IN   |  27.432 CM
Width: 8.4 IN   |  21.336 CM
Volume: .95 FT3   |  .027 M3
Chargeable Weight: 15.1 LBS  | 6.85 KG

Technical Specifications

Actuation Type Air
Compatible Material Waterborne
Gauge Port Size (cm) 0.635
Gauge Port Size (in) 1/4
Gauge Port Size (mm) 6.35
Gauge Port Type NPT
Inlet Size (cm) 1.27
Inlet Size (in) 1/2
Inlet Size (mm) 12.7
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 2
Maximum Flow Rate (L/min) 7.57
Maximum Regulated Pressure (bar) 276
Maximum Regulated Pressure (kPa) 27600
Maximum Regulated Pressure (psi) 4000
Maximum Viscosity (cP) 15000
Maximum Working Pressure (bar) 414
Maximum Working Pressure (kPa) 41400
Maximum Working Pressure (psi) 6000
Minimum Regulated Pressure (bar) 34
Minimum Regulated Pressure (kPa) 3400
Minimum Regulated Pressure (psi) 500
Outlet Size (cm) 1.27
Outlet Size (in) 1/2
Outlet Size (mm) 12.7
Outlet Thread Type NPT
Wetted Material Stainless Steel, Passivated Stainless Steel, Nickel, Cobalt, Tungsten Carbide, PTFE
Application Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating
Type Fluid Regulator
Flow Control Type Regulation
Maximum Regulated Pressure (MPa) 28
Maximum Working Pressure (MPa) 41
Minimum Regulated Pressure (MPa) 3.4

;
