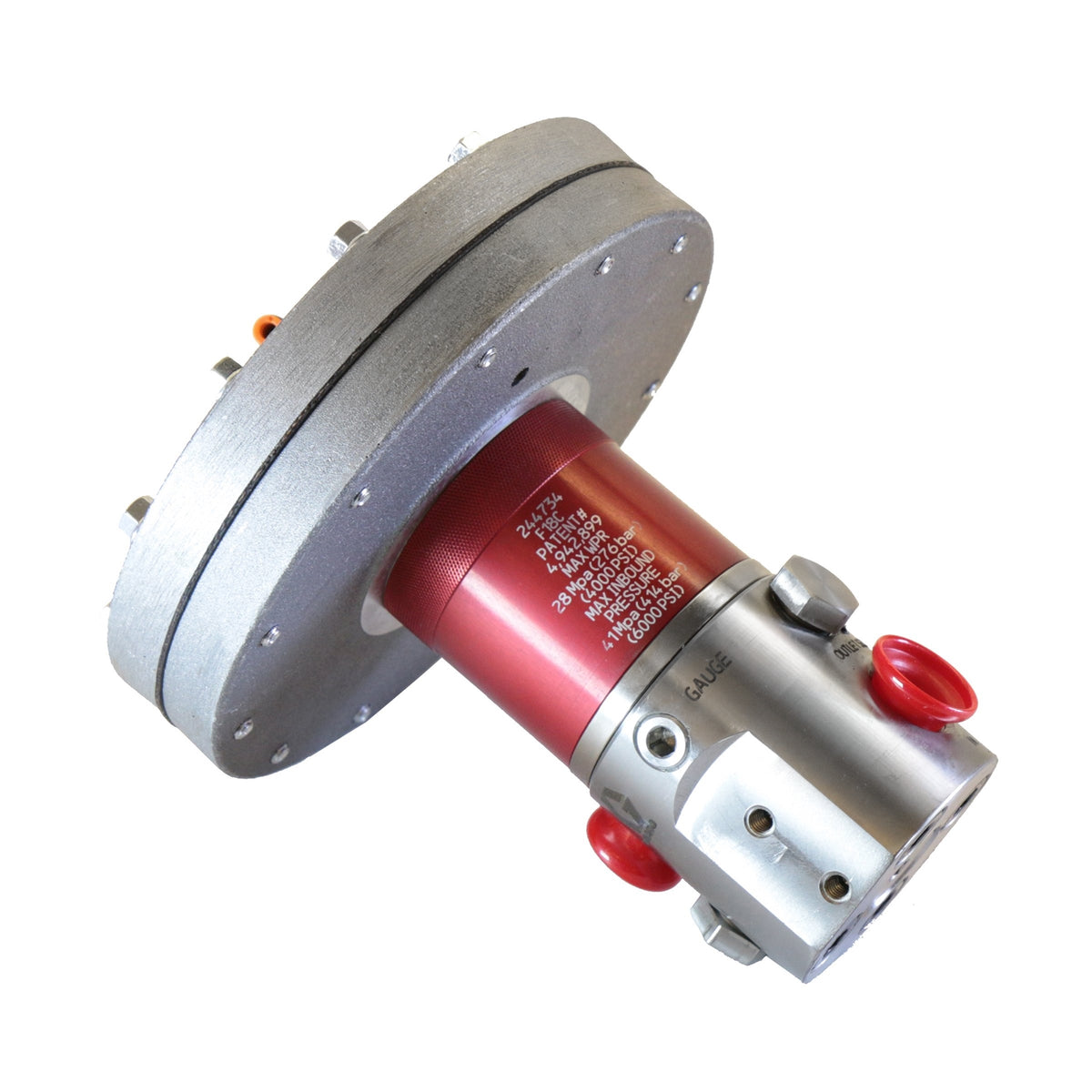

These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
UPC Product: 00633955716421
Family Code: FAMAPA
Unit of Measure: EA
Height:
18 IN
| 45.72 CM
Length:
9.6 IN
| 24.384 CM
Width:
9.6 IN
| 24.384 CM
Volume:
.96 FT3
| .027 M3
Chargeable Weight:
13.4 LBS
| 6.08 KG
Technical Specifications
| Actuation Type | Air |
|---|---|
| Compatible Material | Waterborne |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 0.9525 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 2 |
| Maximum Flow Rate (L/min) | 7.57 |
| Maximum Regulated Pressure (bar) | 276 |
| Maximum Regulated Pressure (kPa) | 27600 |
| Maximum Regulated Pressure (psi) | 4000 |
| Maximum Viscosity (cP) | 15000 |
| Maximum Working Pressure (bar) | 414 |
| Maximum Working Pressure (kPa) | 41400 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Regulated Pressure (bar) | 34 |
| Minimum Regulated Pressure (kPa) | 3400 |
| Minimum Regulated Pressure (psi) | 500 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Type | NPT |
| Wetted Material | Stainless Steel, Passivated Stainless Steel, Nickel, Cobalt, Tungsten Carbide, PTFE |
| Application | Bonding, Sealing, Gasketing, Encapsulation, Thermal Management, Molding, Spray, Fluid Transfer, Unloading, Underfill, Infusion, Metering, Regulating |
| Type | Fluid Regulator |
| Flow Control Type | Regulation |
| Maximum Regulated Pressure (MPa) | 28 |
| Maximum Working Pressure (MPa) | 41 |
| Minimum Regulated Pressure (MPa) | 3.4 |
