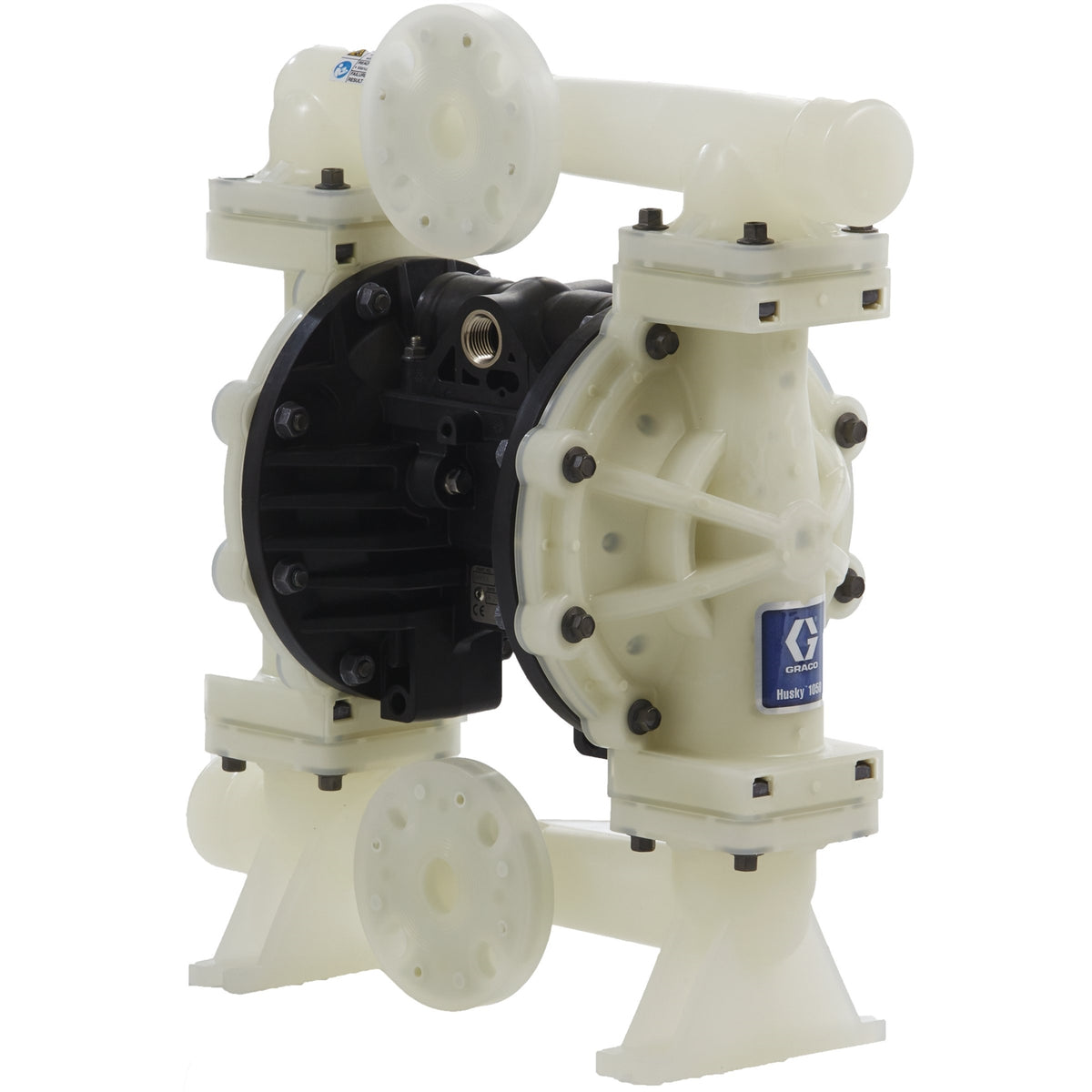

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
UPC Product: 00633955532250
Family Code: FAMAOD
Unit of Measure: EA
Height:
19.2 IN
| 48.768 CM
Length:
15.6 IN
| 39.624 CM
Width:
8.4 IN
| 21.336 CM
Volume:
1.46 FT3
| .041 M3
Chargeable Weight:
23.5 LBS
| 10.66 KG
Technical Specifications
| Type | Pneumatic Diaphragm Pump |
|---|---|
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | 316 Stainless Steel |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
| Maximum Air Consumption (SCFM) | 67 |
| Maximum Air Pressure (bar) | 8.6 |
| Maximum Air Pressure (kPa) | 860 |
| Maximum Air Pressure (psi) | 125 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 50 |
| Maximum Flow Rate (L/min) | 189 |
| Maximum Fluid Pressure (bar) | 8.6 |
| Maximum Fluid Pressure (kPa) | 860 |
| Maximum Fluid Pressure (psi) | 125 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Solid Size (mm) | 3.175 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Series | 1050 |
| Standards Met | CE |
| Weight (lb) | 18 |
| Maximum Fluid Pressure (MPa) | 0.86 |
| Maximum Air Pressure (MPa) | 0.86 |
| Connection Type | Center Flange ANSI/DIN |
| diaphragm_compatible_material | PTFE |
