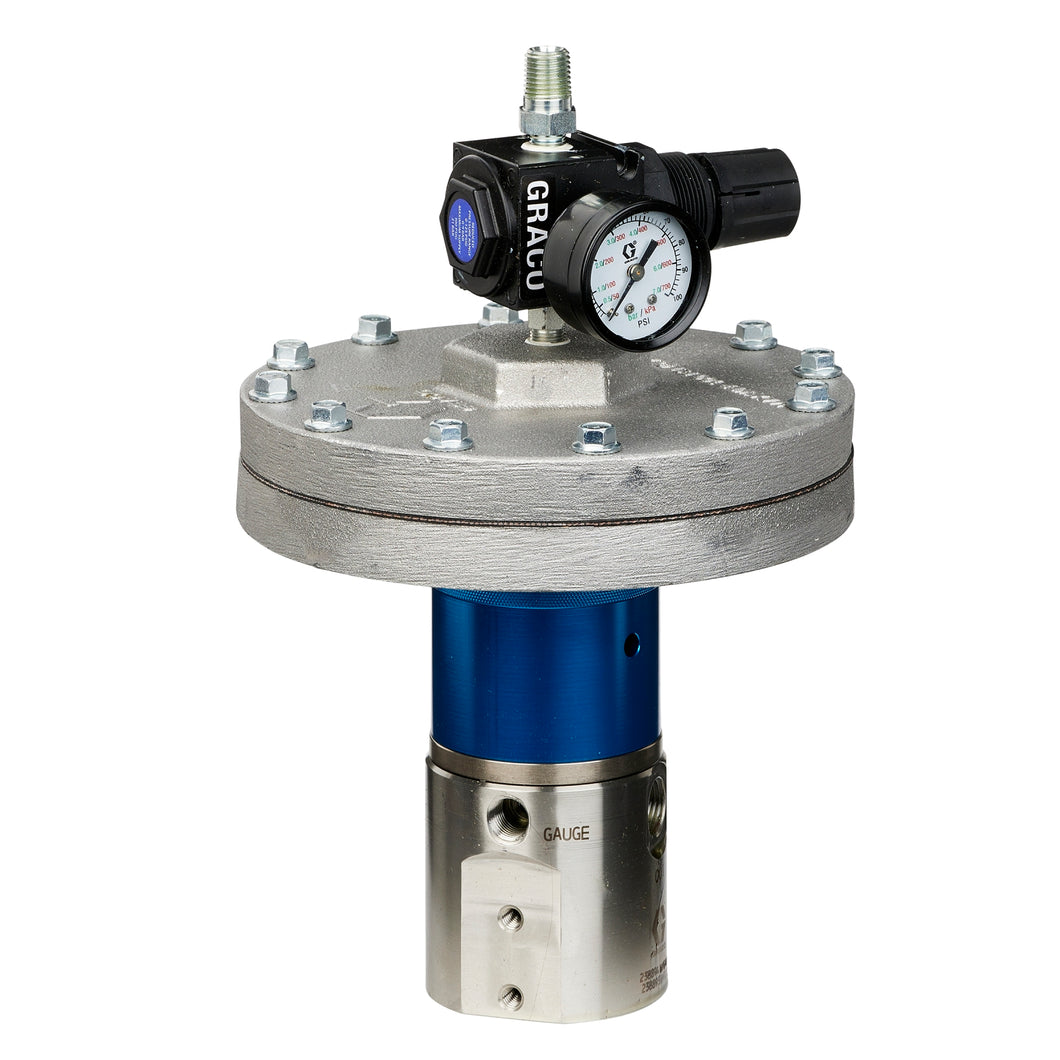

Graco 238894 Corrosion Resistant High Fluid Pressure Regulator, 500-4000 psi Range, 1.0 gpm, SST, Air, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge

Graco 238894 Corrosion Resistant High Fluid Pressure Regulator, 500-4000 psi Range, 1.0 gpm, SST, Air, 3/8(f) x 3/8(f), 1/4(f) Port, with gauge

Regular price
$2,100.00
Sale price
$2,100.00
Quantity must be 1 or more


  • Stainless steel wetted materials are compatible with catalyst and waterborne materials
  • Tungsten and carbide materials ensure low wear and long life
  • Valve cartridge for quick cleaning and replacement – reduce downtime
  • Glycerin-filled gauge for accurate pressure reading
UPC Product: 00633955724846
Family Code: FAMQFP
Unit of Measure: EA
Height: 18 IN   |  45.72 CM
Length: 10.8 IN   |  27.432 CM
Width: 9.6 IN   |  24.384 CM
Volume: 1.08 FT3   |  .031 M3
Chargeable Weight: 15 LBS  | 6.8 KG

Technical Specifications

Actuation Type Air
Gauge Port Size (cm) 0.635
Gauge Port Size (in) 1/4
Gauge Port Size (mm) 6.35
Gauge Port Type NPT
Includes 计量表, ゲージ, Gauge, Gauge, Manomètre, Medidor, 게이지, Anzeigegerät, Meter, Manometro
Inlet Size (cm) 0.9525
Inlet Size (in) 3/8
Inlet Size (mm) 9.525
Inlet Thread Type NPT
Maximum Flow Rate (GPM) 1
Maximum Flow Rate (L/min) 3.8
Maximum Regulated Pressure (bar) 276
Maximum Regulated Pressure (kPa) 27600
Maximum Regulated Pressure (psi) 4000
Maximum Viscosity (cP) 15000
Maximum Working Pressure (bar) 414
Maximum Working Pressure (kPa) 41400
Maximum Working Pressure (psi) 6000
Minimum Regulated Pressure (bar) 34
Minimum Regulated Pressure (kPa) 3400
Minimum Regulated Pressure (psi) 500
Outlet Size (cm) 0.9525
Outlet Size (in) 3/8
Outlet Size (mm) 9.525
Wetted Material Stainless Steel
Type Fluid Regulator
Maximum Regulated Pressure (MPa) 28
Maximum Working Pressure (MPa) 41
Minimum Regulated Pressure (MPa) 3.4
