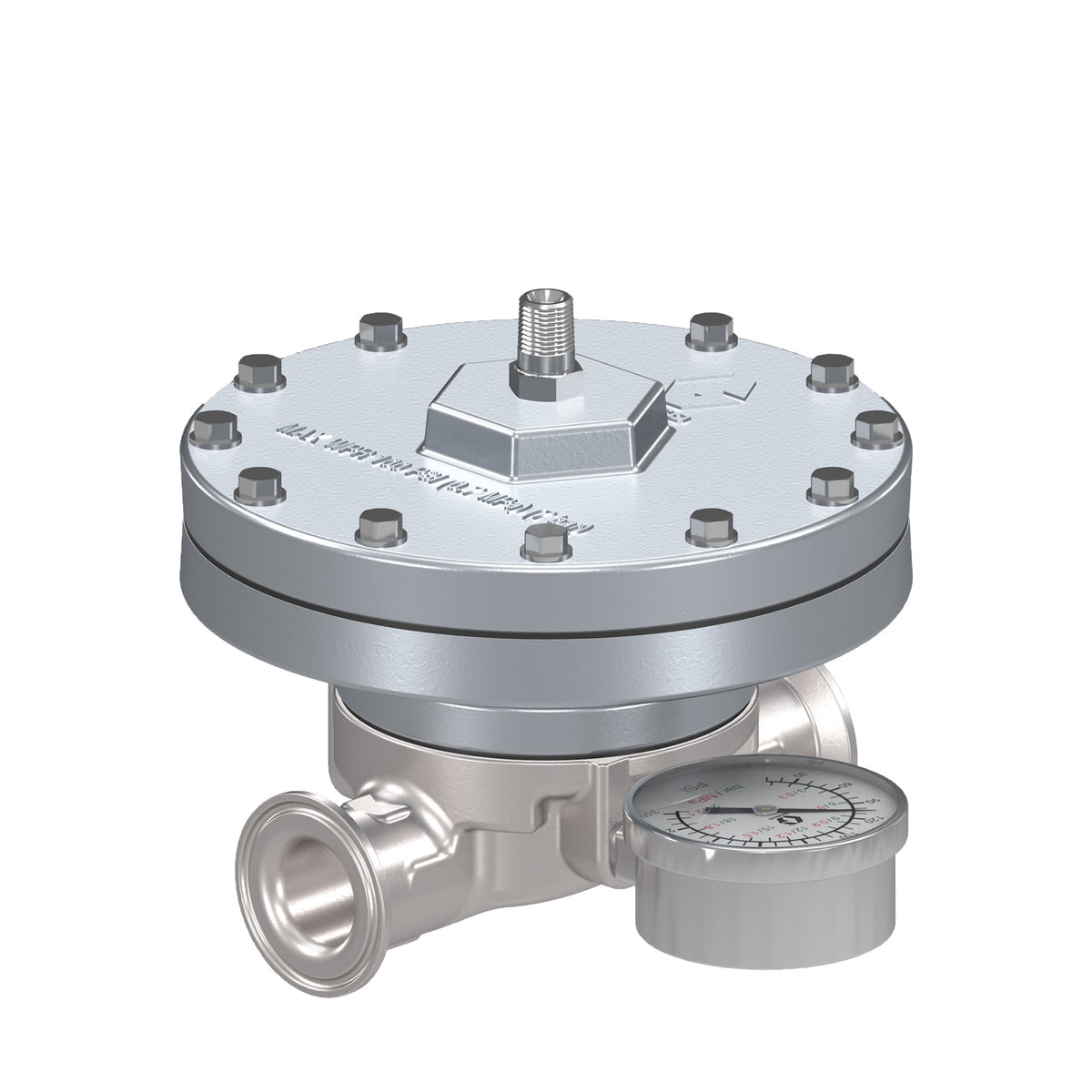

Graco’s low shear back pressure regulator (BPR) minimizes shear and prevents paint degradation so that manufacturers produce consistent finish quality.
Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Air operated model works with Intelligent Paint Kitchen (IPK) control to reduce energy consumption and paint shear
- Ultralife series ceramic coated parts resist wear and increase service life
- Low profile, compact design and backwards compatibility mean easy installation and replacement
UPC Product: 00769946064643
Family Code: FAMCNV
Unit of Measure: EA
Height:
7 IN
| 17.78 CM
Length:
13 IN
| 33.02 CM
Width:
8.5 IN
| 21.59 CM
Volume:
.448 FT3
| .013 M3
Chargeable Weight:
7.2 LBS
| 3.27 KG
Technical Specifications
| Compatible Material | Waterborne, Solventborne |
|---|---|
| Gauge Port Size (cm) | 0.635 |
| Gauge Port Size (in) | 1/4 |
| Gauge Port Size (mm) | 6.35 |
| Gauge Port Type | NPT |
| Inlet Size (cm) | 3.8 |
| Inlet Size (in) | 1.5 |
| Inlet Size (mm) | 38 |
| Inlet Thread Type | Sanitary Flange |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kg/cm²) | 7 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 10 |
| Maximum Flow Rate (L/min) | 38 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Regulated Pressure (bar) | 17.6 |
| Maximum Regulated Pressure (kg/cm²) | 17.6 |
| Maximum Regulated Pressure (kPa) | 1724 |
| Maximum Regulated Pressure (psi) | 250 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (bar) | 21.1 |
| Maximum Working Pressure (kg/cm²) | 21.1 |
| Maximum Working Pressure (kPa) | 2068 |
| Maximum Working Pressure (psi) | 300 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Regulated Pressure (bar) | 1.8 |
| Minimum Regulated Pressure (kg/cm²) | 1.8 |
| Minimum Regulated Pressure (kPa) | 172 |
| Minimum Regulated Pressure (psi) | 25 |
| Outlet Size (cm) | 3.8 |
| Outlet Size (in) | 1.5 |
| Outlet Size (mm) | 38 |
| Outlet Thread Type | Sanitary Flange |
| Wetted Material | Stainless Steel, Tungsten Carbide |
| Type | Back Pressure Regulator |
| Minimum Regulated Pressure (MPa) | 0.17 |
