- Exclusive TurboCone improves chip separation
- Canisters filter 98% of 2-micron particles
- Digital timer can be set for up to 99 minutes
- Swivel casters for easy maneuverability
Description

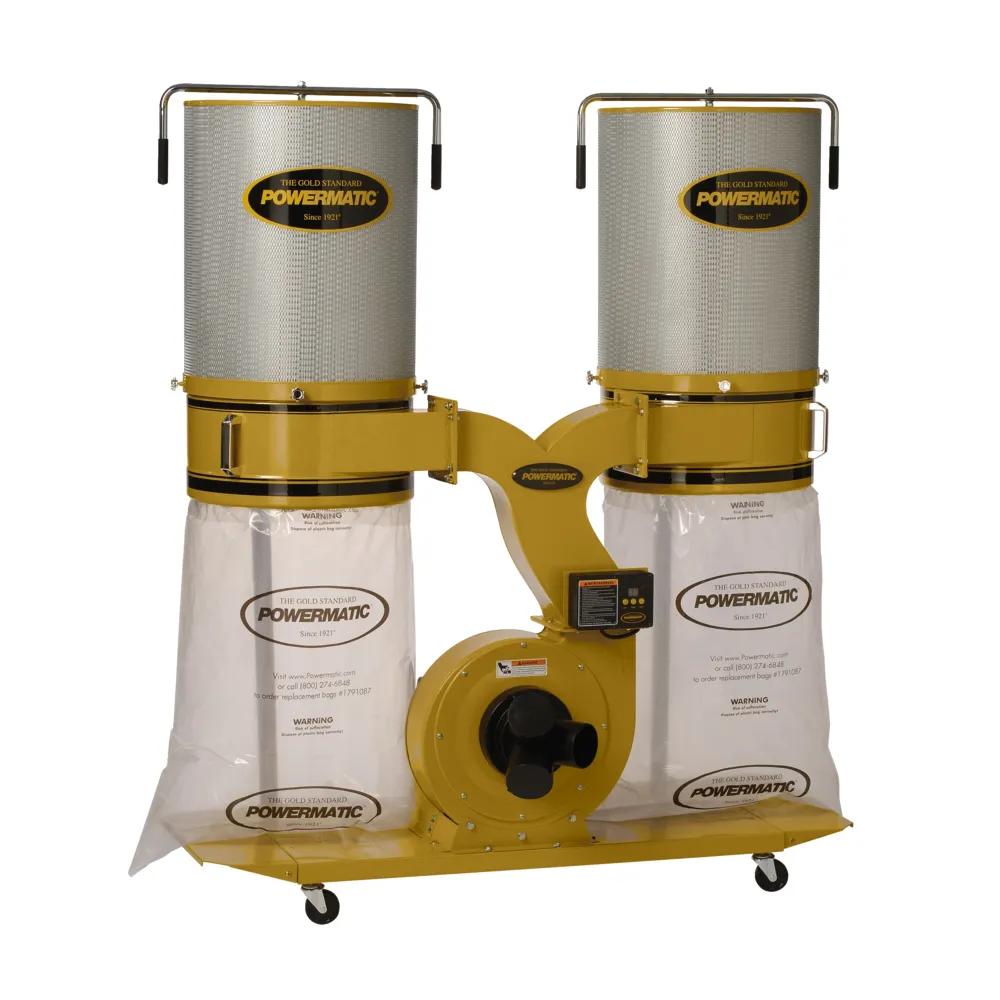

The Powermatic PM1900TX-CK3 TurboCone dust collector configured for 460V three-phase power delivers industrial dust collection with refined filtration performance. A 3 HP motor drives the TurboCone system to separate chips efficiently and prevent premature filter loading. Dual 2-micron canister filters capture fine dust particles while maintaining airflow consistency, and oversized collection bags support extended operation. All-metal ductwork improves airflow rigidity, and the four-caster base with integrated handles provides mobility in larger production shops.
Features
- Dual 2-micron canister filters capture fine airborne dust while providing increased surface area to maintain steady airflow and reduce filter maintenance
- TurboCone separation system pre-sorts heavy chips to limit filter loading and sustain consistent dust collection performance
- 3 HP motor with steel impeller delivers reliable suction when powered by 460V three-phase service for industrial-duty operation
- Triple 4-inch dust ports allow multiple machines to be connected for flexible shop-wide dust collection
- All-metal duct construction enhances airflow stability and long-term durability in demanding production environments
Specifications
| SKU | PM9-1792074K-4 |
|---|---|
| Collection Bag Diameter | 20 in. |
| Efficiency Micron | 2 Micron |
| Gross Weight | 272 |
| Impeller Diameter | 14 in. |
| Impeller Material | Steel |
| Input Power | 460V Three Phase |
| Model Number | PM1900TX-CK3 |
| Motor HP | 3 |
| Net weight | 264 |
| Old Material Number | 1792074K |
| Prewired Voltage | 230V |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Speeds CFM Filtered Air | 1891 |
| Style Type | Canister Filtration |
| UPC | 019907651840 |
| Warranty | 5 Year |
