- Exclusive TurboCone improves chip separation
- Bags filter 96% of 30-micron particles
- Digital timer can be set for up to 99 minutes
- Swivel casters for easy maneuverability
Description

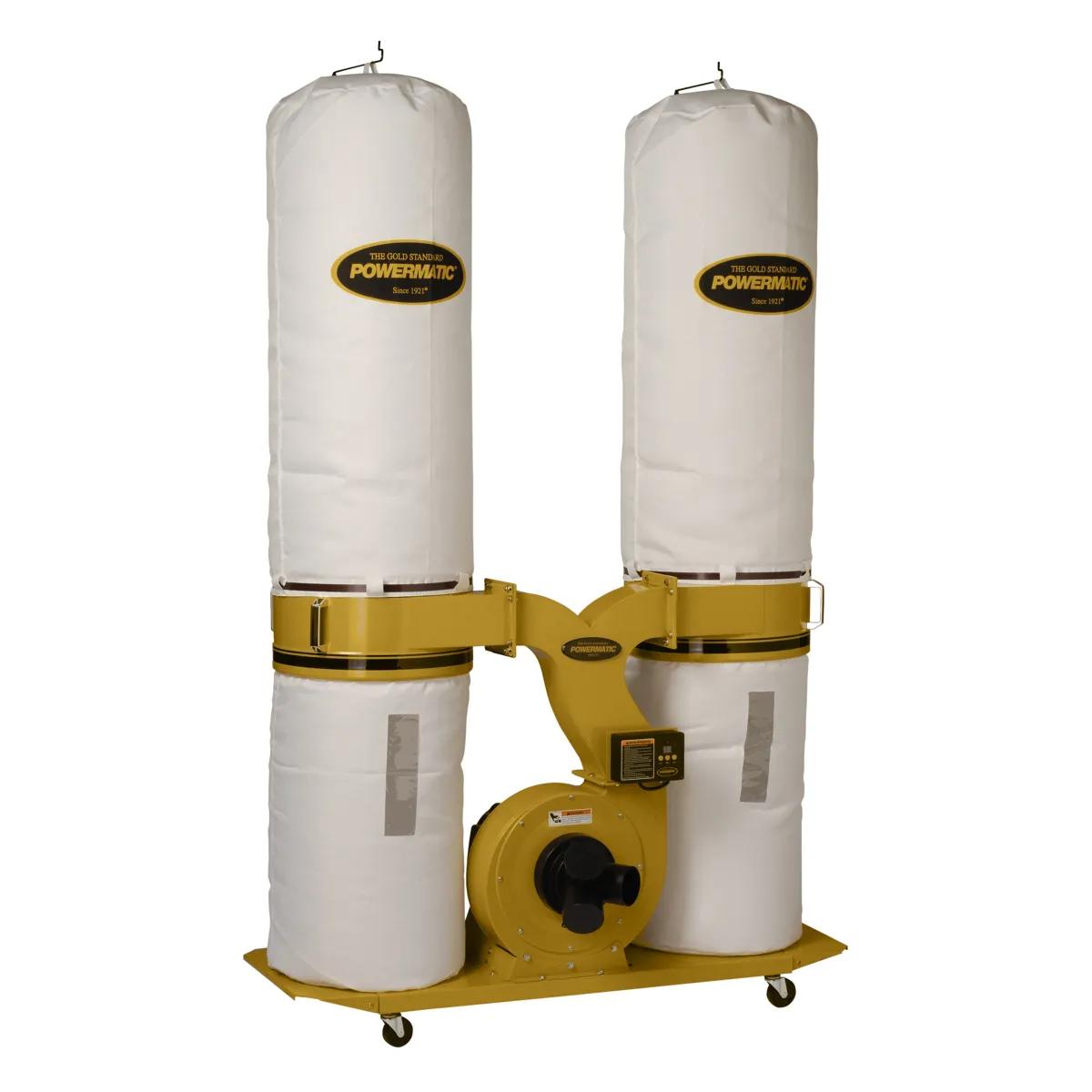

The Powermatic PM1900TX-BK3 TurboCone dust collector configured for 460V three-phase power delivers reliable chip collection in high-output shops with dedicated electrical service. A 3 HP motor powers the TurboCone system, improving debris separation before material reaches the filter bags. Dual 30-micron cloth filters manage heavy chip loads, while large collection bags extend run time between changes. All-metal ductwork enhances durability and airflow efficiency, and the wheeled base allows flexible placement across the shop floor.
Features
- TurboCone separation system directs chips away from the filters to maintain airflow and improve overall collection efficiency
- 3 HP motor driving a steel impeller delivers consistent suction for demanding 460V three-phase shop applications
- Dual 30-micron cloth filter bags support high-volume chip collection while extending run time between bag changes
- Cone-shaped internal design helps reduce premature filter loading for longer filter life and less maintenance
- All-metal duct construction adds structural rigidity and promotes smoother airflow through the system
Specifications
| SKU | PM9-1792073K-4 |
|---|---|
| Collection Bag Diameter | 20 in. |
| Efficiency Micron | 30 Micron |
| Gross Weight | 215 |
| Impeller Diameter | 14 in. |
| Impeller Material | Steel |
| Input Power | 460V Three Phase |
| Model Number | PM1900TX-BK3 |
| Motor HP | 3 |
| Net weight | 207 |
| Old Material Number | 1792073K |
| Prewired Voltage | 230V |
| Product Type | Machines |
| Prop 65 | Cancer and Reproductive Harm |
| Speeds CFM Filtered Air | 1891 |
| Style Type | Bag Filtration |
| UPC | 019907651833 |
| Warranty | 5 Year |
