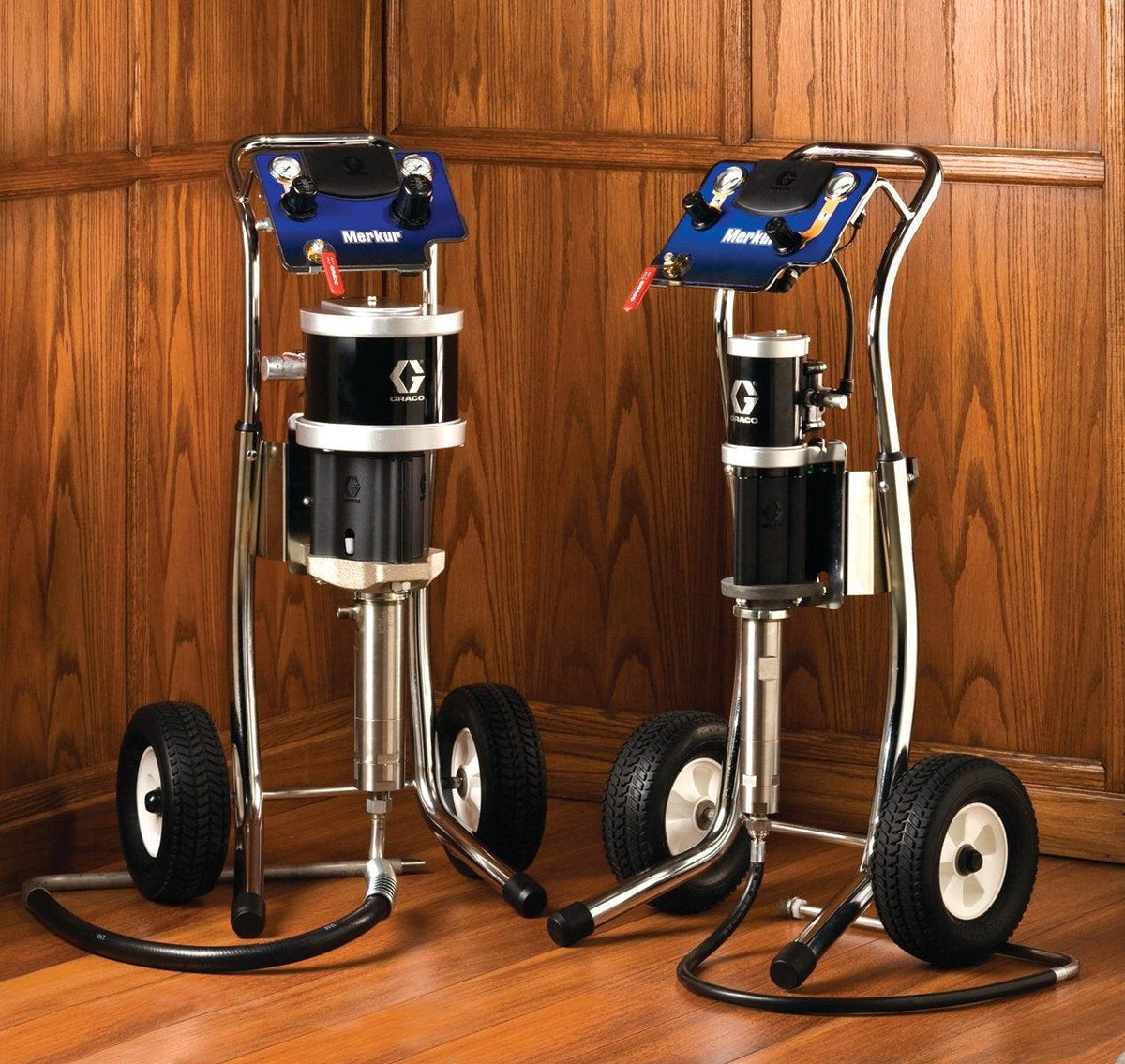

Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high-quality finishes for all of your demanding applications.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Highest technology air motor on the market
- Proven to outperform and outlast other pumps in their class
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- External valve access allows for easy servicing and online replacement to minimise downtime
- Operator control panel located at operator height for easy setting and monitoring
- Throat seal and rod enclosure protects pumped material and wet cup from contamination, but can be easily removed to monitor and service
UPC Product: 00633955364325
Family Code: FAMQFP
Unit of Measure: EA
Height:
24 IN
| 60.96 CM
Length:
33.6 IN
| 85.344 CM
Width:
16.8 IN
| 42.672 CM
Volume:
7.84 FT3
| .222 M3
Chargeable Weight:
81.612 LBS
| 37.001 KG
Technical Specifications
| Compatible Material | Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating |
|---|---|
| Fluid Inlet Size (cm) | 1.27 |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Size (mm) | 12.7 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | NPT |
| Hose Inlet Diameter (cm) | 0.476 |
| Hose Inlet Diameter (in) | 3/16 |
| Hose Inlet Diameter (mm) | 4.76 |
| Includes | ポンプとガンのエアコントロール, Pump and Gun Air Controls, Pump and Gun Air Controls, Commandes pneumatiques de pompe et de pistolet, Bomba y controles de aire de pistola, 펌프 및 건 에어 제어장치, Pumpen- und Pistolen-Luftregler, Luchtregelaars voor pomp en pistool, Comandi pneumatici pistola e pompa |
| Maximum Air Inlet Pressure (bar) | 7 |
| Maximum Air Inlet Pressure (kPa) | 700 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 0.4 |
| Maximum Flow Rate (L/min) | 1.5 |
| Maximum Working Pressure (bar) | 103 |
| Maximum Working Pressure (kPa) | 10300 |
| Maximum Working Pressure (psi) | 1500 |
| Sprayer Type | High Pressure |
| Weight (kg) | 12.25 |
| Weight (lb) | 27 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| Spray Type | No Applicator |
| Mount Type | Wall Mount |
| Model | Merkur |
| Type | Bare Package |
| Product Type | Bare Package |
| Technology Type | Airless |
| Gun Included | 0 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Pump Type | Pneumatic Piston Pump |
| Gun Type | No Applicator |
| Gun Model | No Applicator |
| Pump Ratio | 15:1 |
| Gun Technology | Bare Package |
