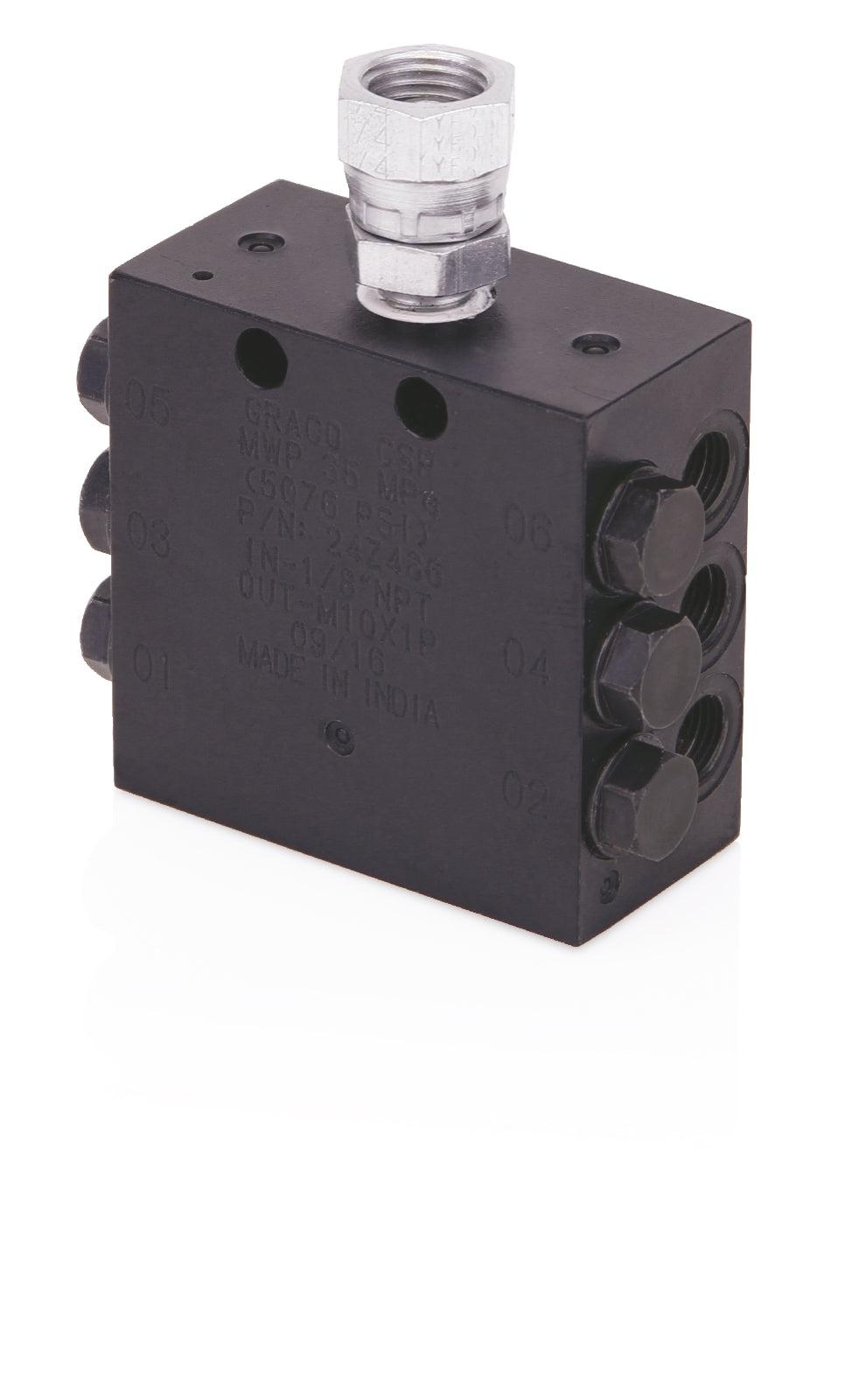

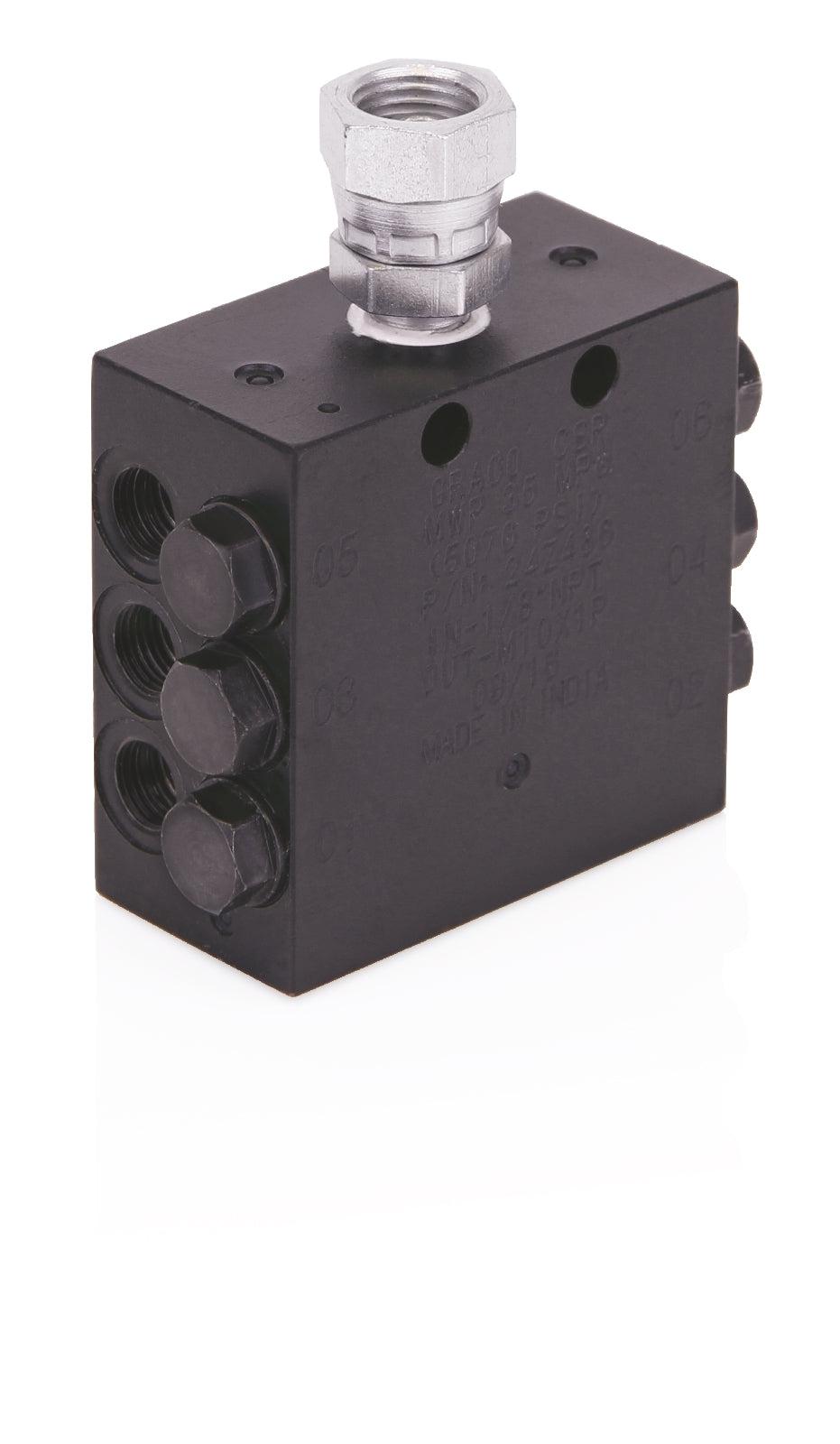

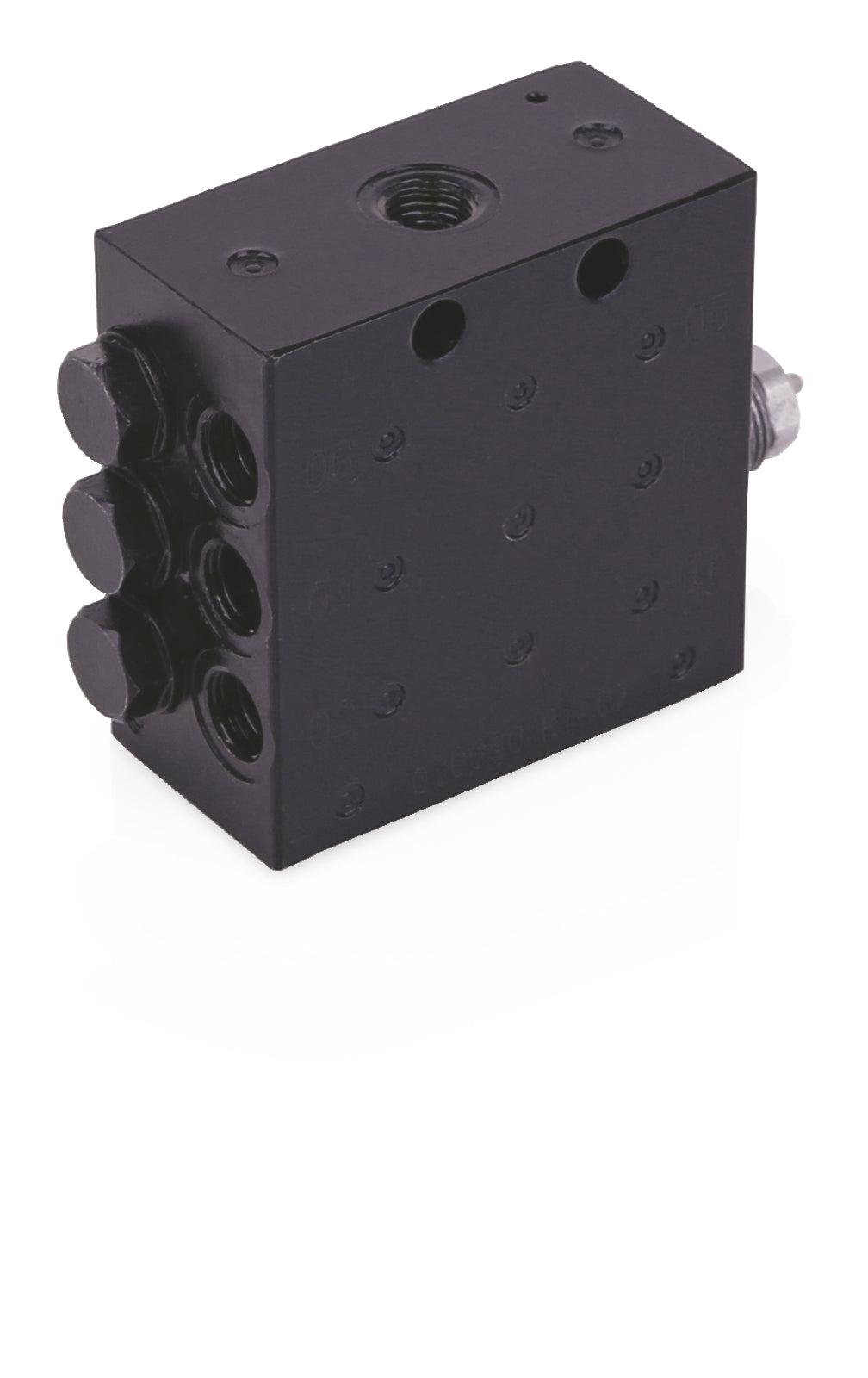

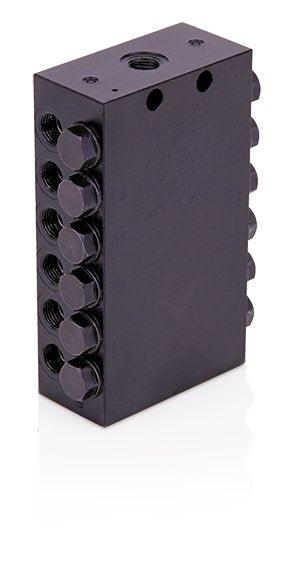

Graco CSP Divider Valve, 1/8 in. BSPP, 22 Outlets
Graco CSP Divider Valve, 1/8 in. BSPP, 22 Outlets
Graco CSP Divider Valve, 1/8 in. BSPP, 22 Outlets
Graco CSP Divider Valve, 1/8 in. BSPP, 22 Outlets
Graco CSP Divider Valve, 1/8 in. BSPP, 22 Outlets

Graco CSP Divider Valve, 1/8 in. BSPP, 22 Outlets

Regular price
$557.00
Sale price
$557.00
Quantity must be 1 or more


Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

  • 1/8 in. BSPP inlet
  • Space efficient design with 22 outlets, without indicator
  • Outlets can be combined to meet larger bearing needs
  • Built-in durability with Zinc Iron plating to stand up to harsh environments
  • High output pressure - maximum working pressure of 350 bar (5076 psi) for both oil and grease
UPC Product: 00755652413356
Family Code: FAMMPM
Unit of Measure: EA
Height: 3.81 CM   |  1.5 IN
Length: 7.5 IN   |  19.05 CM
Width: 4.25 IN   |  10.795 CM
Volume: .001 M3   |  .028 FT3
Chargeable Weight: 5.2 LBS  | 2.36 KG

Technical Specifications

Minimum Working Pressure (bar) 15
Maximum Working Pressure (psi) 5076
Minimum Working Pressure (psi) 217.5
Inlet Thread Type BSPP
Inlet Size (in) 1/8
Number of Outlets 22
Minimum Output Volume (cm³) 0.2
Maximum Working Pressure (bar) 350
Maximum Operating Temperature (°F) 212
Cycle Indicator None
Outlet Thread Type BSPP
Outlet Thread Gender Female
Minimum Working Pressure (kPa) 1500
Maximum Working Pressure (kPa) 35000
Maximum NLGI Grade #2
Material Carbon Steel
Inlet Size (mm) 3.175
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 100
Inlet Size (cm) 0.3175
Type Divider Valve
Divider Valve Series CSP
Application On-Road Vehicles, Off-Road Equipment
Model Trabon
Series CSP
Discharge Per Piston Stroke (in³) N/A
