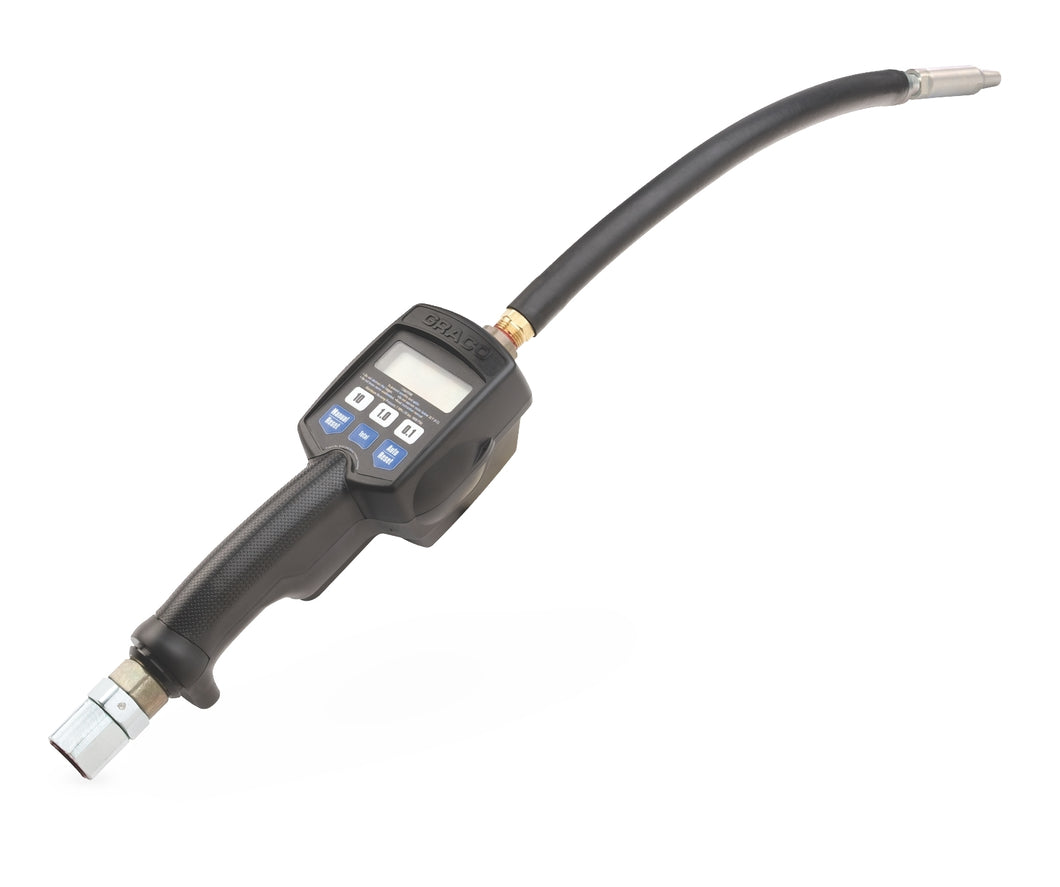

Graco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, and In-plant.
Easy to read LCD screen keeps dispenses precise.
Inlet 1/2 in. BSPP with swivel.
Rugged meter body is impact resistant for long life.
Ergonomically-design, comfortable handle with two-finger trigger.
Preset meter automatically shuts-off flow when preset quantity has been dispensed.
5 year warranty. See manufacturers website for details.
UPC Product: 00633955595675
Family Code: FAMMLD
Unit of Measure: EA
Height:
4.8 IN
| 12.192 CM
Length:
14.4 IN
| 36.576 CM
Width:
4.8 IN
| 12.192 CM
Volume:
.19 FT3
| .005 M3
Chargeable Weight:
4.6 LBS
| 2.09 KG
Technical Specifications
Approvals
CE
Compatible Material
Oil, Antifreeze
Dispense Type
Preset
Display Type
Electronic
Extension Type
Flexible
Fluid Inlet Thread Gender
Female
Fluid Outlet Thread Gender
Female
Includes
Nozzle, Extension, Boquilla, extensión
Inlet Size (cm)
1.27
Inlet Size (in)
1/2
Inlet Size (mm)
12.7
Inlet Thread Type
BSPP
Maximum Operating Temperature (°C)
49
Maximum Operating Temperature (°F)
120
Maximum Storage Temperature (°F)
120
Maximum Storage Temperature (°C)
49
Maximum Working Pressure (psi)
1000
Maximum Working Pressure (kPa)
6900
Maximum Working Pressure (bar)
69
Meter Accuracy (%)
±0.5
Overall Height (cm)
8.3
Overall Height (in)
3.25
Overall Height (mm)
83
Overall Length (cm)
28
Overall Length (in)
11
Overall Length (mm)
280
Overall Width (cm)
8.3
Overall Width (in)
3.25
Overall Width (mm)
83
Meter Technology
Oval Gear, Engranaje oval
Metering Gun Weight (lb)
3
Metering Gun Weight (kg)
1.36
Wetted Material
Stainless Steel, Nitrile Rubber, Zinc, CS, LCP
Warranty
5 year Structural Components, Cinco años para componentes estructurales, 2 years Electronics, dos años para electrónica, 1 year Wear Parts, un año para piezas desgastadas
