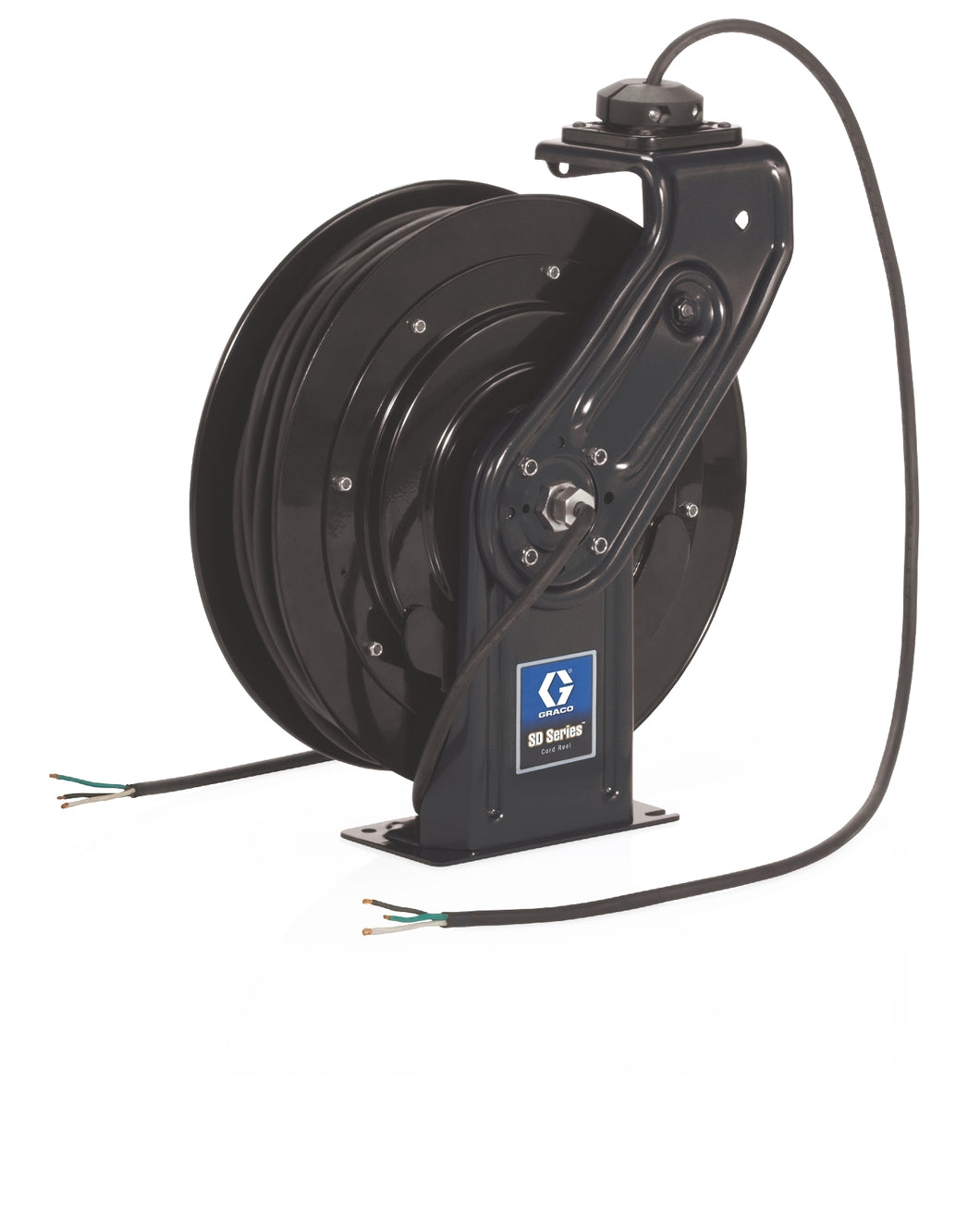

SD™ 10 Series 120 Volt Cord Reel - No Accessory, Cord Only - 95 ft (29 m), 16 AWG, 10 Amp Cord - Black

SD™ 10 Series 120 Volt Cord Reel - No Accessory, Cord Only - 95 ft (29 m), 16 AWG, 10 Amp Cord - Black

Regular price
$977.50
Sale price
$977.50
Quantity must be 1 or more


Organize your work space for a safer, more productive work environment. Make Graco your single source for your entire reel bank.

  • Heavy-duty steel construction, SD Series size 10.
  • 95 foot (29 m) cord and features a 5 foot lead-in cable.
  • Adjustable Arm - Easily change the arm position to fit more applications. Works on walls, ceilings or bench mounts.

  • Cord only, no accessory
  • Heavy-Duty Pedestal - High-strength steel construction with rolled edges and ribbed stress points that won't flex or twist.

UPC Product: 00755652331704
Family Code: FAMCRD
Unit of Measure: EA
Height: 0 IN   |  0 CM
Length: 0 IN   |  0 CM
Width: 0 IN   |  0 CM
Volume: 0 FT3   |  0 M3
Chargeable Weight: 0 LBS  | 0 KG

Technical Specifications

Type Cord Reel
Cord Length (ft) 95
Cord Length (m) 29
Includes Cord Only
Insulation Type SJTOW, SJTOW
Maximum Current (A) 10
Maximum Operating Temperature (°C) 50
Maximum Operating Temperature (°F) 122
Overall Height (cm) 49.53
Overall Height (in) 19.5
Overall Height (mm) 495.3
Overall Length (cm) 44.5
Overall Length (in) 17.5
Overall Length (mm) 445
Overall Width (cm) 11.938
Overall Width (in) 4.7
Overall Width (mm) 119.38
Power Cord Connect Type NEMA 5-15P
Reel Color Black, Negro
Series 10
Sound Power Level (dB(A)) 87
Sound Pressure Level (dB) 80
Voltage (V ac) 120
Weight (kg) 21
Weight (lb) 46.3
Wire Gauge (AWG) 16, 16
Model SD
