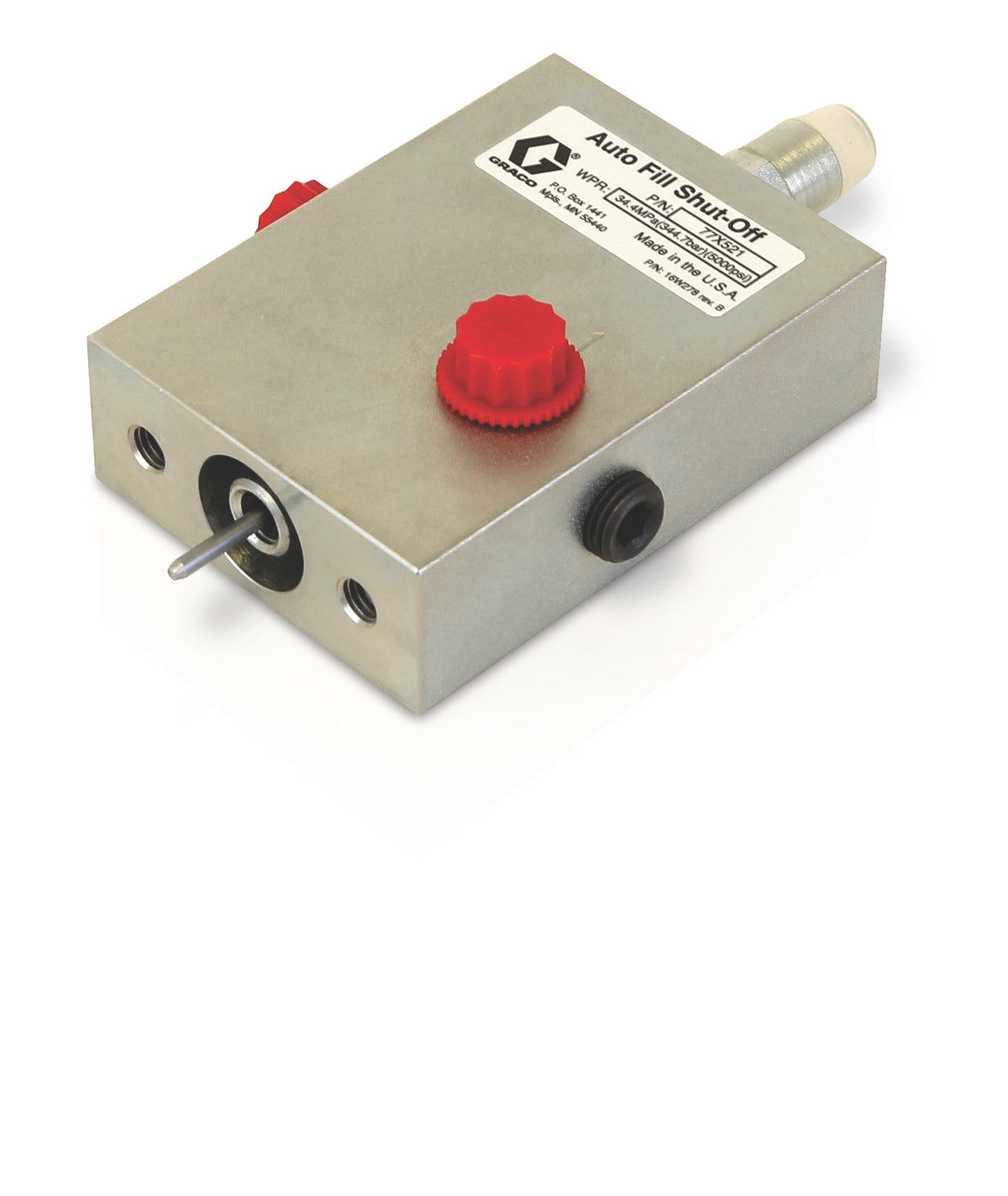

- Remote Fill Manifold and Auto-Fill Shutoff Kit
- Ground-level fill port eliminates climbing
- Spill-free, single-person operations
- Mechanical system enables mine-safety, powered-down, refilling best practices
UPC Product: 00633955676299
Family Code: FAMHPM
Unit of Measure: EA
Height:
3.6 IN
| 9.144 CM
Length:
16.8 IN
| 42.672 CM
Width:
16.8 IN
| 42.672 CM
Volume:
.59 FT3
| .017 M3
Chargeable Weight:
7 LBS
| 3.18 KG
Technical Specifications
| Application | In-Plant Machinery, Off-Road Equipment |
|---|---|
| Compatible Material | Grease |
| For Use With | 电动 Dyna-Star HP 和 HF 泵, Electric Dyna-Star HP と HF ポンプ, Electric Dyna-Star HP and HF Pumps, Electric Dyna-Star HP and HF Pumps, Pompes électriques Dyna-Star HP et HF, Bombas eléctricas Dyna-Star de alta presión y alta frecuencia, Elektrische Dyna-Star HP- und HF-Pumpen, Elektrische Dyna-Star HP- en HF-pompen, Pompe elettriche Dyna-Star HP e HF |
| Includes | 自动加注截止阀, 自動充填シャットオフバルブ, Auto-Fill Shut Off Valve, Auto-Fill Shut-Off Valve, Vanne d’arrêt automatique du remplissage automatique , Válvula de cierre de llenado automático, Ventil für automatischen Befüllstopp, Afsluitventiel voor automatisch vullen, Valvola di chiusura riempimento automatico, 隔膜组件, ダイアフラムアセンブリ, Diaphragm Assembly, Diaphragm Assembly, assemblage membrane , Ensamblaje del diafragma, Membranbaugruppe, membraanconstructie, gruppo membrana, 管, チューブ, Tubes, Tubes, tubes , Tubos, Rohre, buizen, tubi, 接头, フィッティング, Fittings, Fittings, raccords , Conexiones, Fittings, fittingen, raccordi, 硬件, ハードウェア, Hardware, Hardware, matériel, Hardware, Hardware, hardware, elementi di montaggio |
| Inlet Size (cm) | 0.9525 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (bar) | 344 |
| Maximum Working Pressure (kPa) | 34400 |
| Maximum Working Pressure (psi) | 5000 |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (in) | 3/8 |
| Outlet Size (mm) | 9.525 |
| Outlet Thread Gender | Female |
| Outlet Thread Type | NPT |
| Type | Shut-Off Valve |
| Maximum Working Pressure (MPa) | 34.5 |
