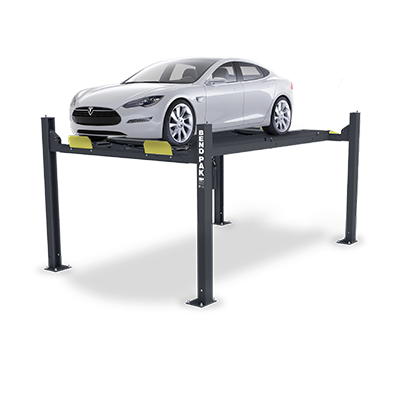

5175820 HD-9AE BENDPAK 9,000 Lb. Capacity / Alignment / Includes Turnplates and Slip Plates
The HD-9AE alignment lift features adjustable multi-position leveling, integrated front radius plates and rear slip plates. This makes it compatible with all leading alignment instrumentation, including 3D and camera wheel alignment systems.
Features
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Multi-caster slip plates
- Dual radius plate positions
- Heavy-duty stainless steel lifting cables
- Dual-hub cable sheaves
- Grease nipples on every sheave and sheave axle
- Single hydraulic cylinder
- Integrated hydraulic flow restrictor
- Durable powder-coat finish
- Spring-loaded safety locks
- Simple push-button lock release
- Aircraft-quality stainless steel and aluminum pneumatic cylinders
- Secondary lock system
- Fully enclosed cables, airlines, safety latches and sheaves
- Multiple adjustable height locking positions
- Maintenance-free power system
- Easy-to-reach operator controls
| Lifting Capacity* | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| Rise | |
| A - Min. Runway Height: | 6.5" (165 mm) |
| B - Max. Rise: | 70" (1,778 mm) |
| C - Max. Lifting Height: | 76.5" (1,943 mm) |
| Time to Full Rise: | 60 seconds |
| Outside Dimensions | |
| D - Overall Width: | 127" (3,226 mm) |
| E - Outside Length: | 198" (5,029 mm) |
| F - Overall Length: | 224" (5,690 mm) |
| G - Height of Columns: | 88" (2,235 mm) |
| Inside Dimensions | |
| H - Width Between Columns: | 117" (2,972 mm) |
| I - Drive-Thru Clearance: | 103.5" (2,629 mm) |
| Runways | |
| J - Runway Width: | 19" (483 mm) |
| K - Length of Runways: | 188" (4,775 mm) |
| L - Width Between Runways: | 40" (1,016 mm) |
| Alignment | |
| M - Min. 4-Wheel Alignment: | 71" (1,803 mm) |
| N - Max. 4-Wheel Alignment: | 145" (3,683 mm) |
| O - Max. 2-Wheel Alignment: | 160" (4,064 mm) |
| Minimum Wheelbase | |
| Rated Capacity: | 135" (3,429 mm) |
| 75% Capacity: | 115" (2,921 mm) |
| 50% Capacity: | 95" (2,413 mm) |
| 25% Capacity: | 80" (2,032 mm) |
| Locking | |
| Locking Positions: | 12 |
| Lock Spacing: | 4 |
| Power Unit | |
| Motor: | 220 VAC / 60 Hz / 1 Ph |
| Noise: | 45 dB |
| Shipping | |
| Weight: | 2,270-lbs. (1,029 kg) |
| Dimensions: | 190'' x 22'' x 42'' (4,826 mm x 558 mm x 1,066 mm) |
