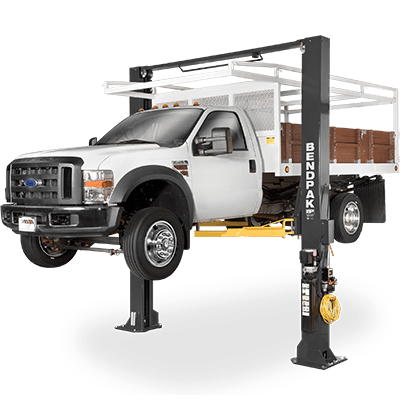

BendPak XPR-12CL-LTA (5175258) 12,000-lb. Capacity / Clearfloor / 72" Long-Reach Telescoping Arms / Two-Post Vehicle Lift
BendPak XPR-12CL-LTA (5175258) 12,000-lb. Capacity / Clearfloor / 72" Long-Reach Telescoping Arms / Two-Post Vehicle Lift
BendPak XPR-12CL-LTA (5175258) 12,000-lb. Capacity / Clearfloor / 72" Long-Reach Telescoping Arms / Two-Post Vehicle Lift
BendPak XPR-12CL-LTA (5175258) 12,000-lb. Capacity / Clearfloor / 72" Long-Reach Telescoping Arms / Two-Post Vehicle Lift

BendPak XPR-12CL-LTA (5175258) 12,000-lb. Capacity / Clearfloor / 72" Long-Reach Telescoping Arms / Two-Post Vehicle Lift

$12,895.00
$11,794.90
$1,100.10
See Lower Price in Cart

SKU: 5175258

Contact us for more information

5175258 XPR-12CL-LTA BENDPAK 12K Capacity / Clearfloor / Long-Reach Triple-Telescoping Arms

If you need to service vehicles up to 12,000 lbs. capacity with extremely long wheelbases, BendPak's XPR-12CL-LTA offers nearly 72 inches of reach, compared to 58 inches on our standard triple-telescoping arms. Ideal for hard-to-reach lift points that other two-post lifts cannot access.

Features

  • 12,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Padded overhead safety shutoff bar
  • Extended height top-beam provides greater overhead clearance
  • Single-point safety release
  • Dual direct-drive hydraulic cylinders
  • Dual-synchro equalization system for equal lifting
  • Oversized 53" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"
  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber lift pads with stackable adapters
  • 16-piece specialty adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads
  • Convenient storage is included for truck and van adapters
  • Long-reach triple-telescoping arms provide increased range for lifting point access
Lifting Capacity* 12,000 lbs. (5,443 kg)
*Max Capacity / Front Axle 6,000 lbs. (2,722 kg)
*Max Capacity / Rear Axle 6,000 lbs. (2,722 kg)
Rise
A - Rise: 69" (1,753 mm)
B - Rise + Pad Only: 74" (1,880 mm)
C - Rise + Pad + 63 mm Adapter: 80" (2,032 mm)
D - Min. Height + Pad: 5" (127 mm)
Time to Full Rise: 90 seconds
Outside Dimensions
E - Height Overall: 170" (4,318 mm)
F - Width Overall: 155" (3,937 mm)
G - Outside Columns: 144" (3,658 mm)
Inside Dimensions
H - Inside Columns: 120" (3,048 mm)
I - Drive-Thru Clearance: 106" (2,692 mm)
J - Floor To Overhead Switch: 165" (4,191 mm)
Arms & Pads
K - Front Arm Reach: (MIN) 37" (940 mm)
K - Front Arm Reach: (MAX) 72" (1,829 mm)
L - Rear Arm Reach: (MIN) 37" (940 mm)
L - Rear Arm Reach: (MAX) 72" (1,829 mm)
Max Load Per Arm 3,000 lbs. (1,361 kg)
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB
Shipping
Weight: 2,724-lbs. (1,235.6 kg)
Dimensions: 174'' x 29'' x 29'' (4,419 mm x 736 mm x 736 mm)
