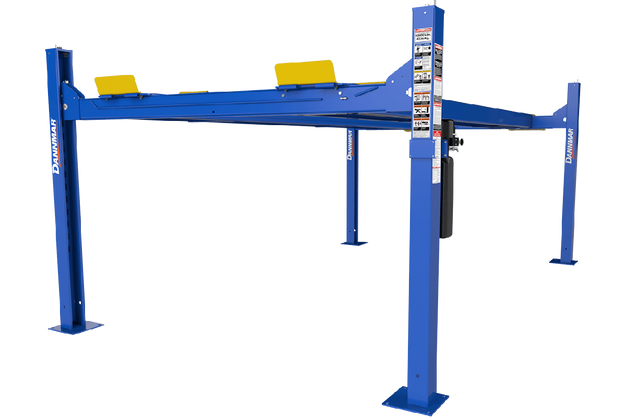

5175317 D4-12 DANNMAR 12K Capacity 4-Post
Dannmar’s D4-12 four-post lift is engineered to handle up to 12,000-lbs. lifting capacity and provide the rugged durability your shop or garage needs. These are commercial-grade vehicle lifts from Dannmar and they have become the benchmark of quality throughout the industry.
Features
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493
- Mid to long-style approach ramps for low-ground clearance vehicles
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Pneumatic push-button safety release
- Heavy-duty 1/2” aircraft cable and 1.75” roller axles
- Safety locks enclosed in columns minimize pinch points
- Oversized sheave diameter reduces cable fatigue
- Large self-lubricating cable rollers
- Multi-position safety locks in each column
- Customizable power unit location
- Approach ramps incorporate built-in rear-wheel chocks
- Independent backup slack-cable safety latches
- Runways feature non-skid surface
- ETL approved
| Lifting Capacity | 12,000 lbs. (5,443 kg) |
| A - Min. Runway Height | 6.75" (171 mm) |
| B - Max. Rise | 68.75" (1,746 mm) |
| C - Max. Lifting Height | 77.5" (1,969 mm) |
| D - Ramp Clearance* (Max. Rise) | 49" (1,245 mm) |
| E - Height of Columns | 92" (2,337 mm) |
| F - Drive-Thru Clearance | 98” (2,482 mm) |
| G - Overall Width | 127.5" (3,239 mm) |
| H - Width Between Columns | 115.75" (2,940 mm) |
| I - Overall Length | 233.5" (2,940 mm) |
| J - Outside Columns | 115.75" (2,940 mm) |
| K - Width Between Runways | 34.5" (876 mm) or 41.5" (1,054 mm) |
| L - Runway Centerline | 54.5" (1,384 mm) or 61.5" (1,562 mm) |
| M - Outside Edge of Runways | 74.5" (1,892 mm) or 81.5" (2,070 mm) |
| N - Runway Width | 20" (508 mm) |
| O - Length of Runways | 194.75" (4,947 mm) |
| Min. Wheelbase @ Rated Capacity | 140” (3,556 mm) |
| Min. Wheelbase @ 75% Capacity | 120” (3,048 mm) |
| Min. Wheelbase @ 50% Capacity | 100” (2,540 mm) |
| Min. Wheelbase @ 25% Capacity | 80” (2,032 mm) |
| Locking Positions | 15 (spaced every 4” / 102 mm) |
| Time to Full Rise | 60seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
