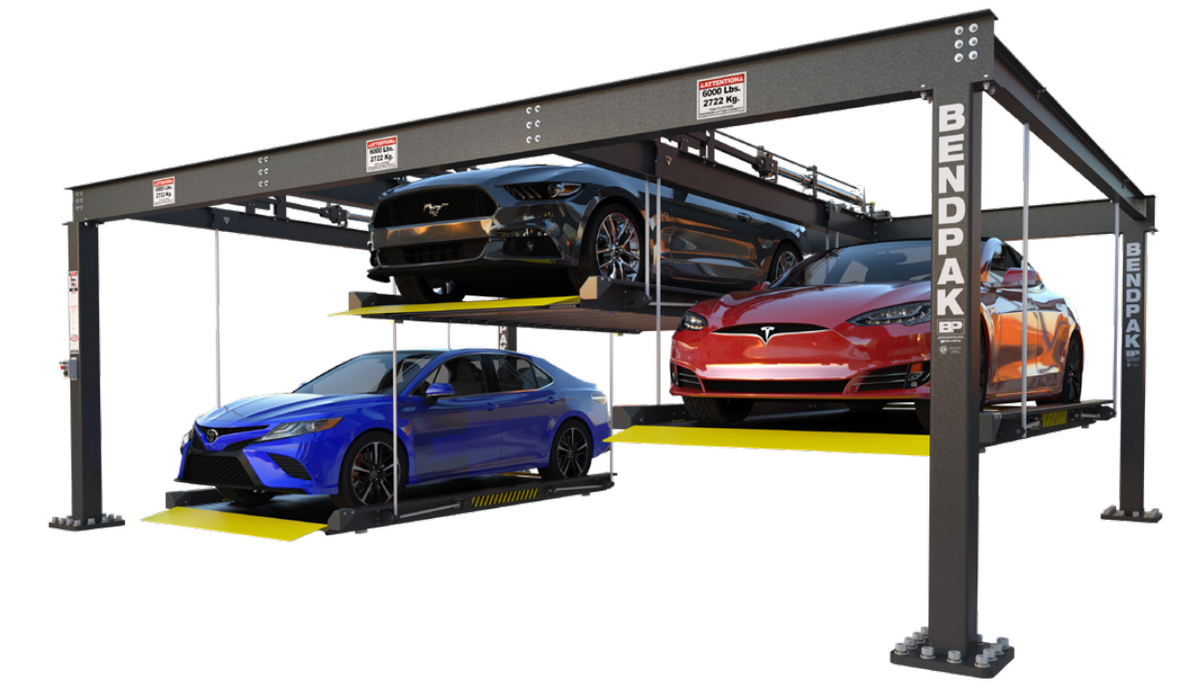

Specifications PL-6KT
- 6,000-lb. capacity per deck (18,000 lbs. total)
- Perfect for cars, light trucks, motorcycles and ATVs
- Rugged I-beam and C-channel construction
- Built-in wheel stops
- Wide base-plate for maximum stability
- Front and rear wheel chocks
- Superstructure features durable powder-coat finish
- Dual hydraulic cylinders with heavy-duty steel lifting cable
- Heavy-duty steel construction
- Reliable electric-hydraulic power system
- Full-width platform to keep bottom vehicles protected
- Simple controls
- Oversized sheave diameter reduces cable fatigue
- High-speed lifting
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
Overall Width:
308” (7,834 mm)
Overall Length:
236.5” (6,008 mm)
Overall Height:
123.75" (3,140 mm)
Min. Runway Height:
9” (230 mm)
Max. Rise:
89” (2,261 mm)
Width Between Posts:
283" (7,197 mm)
Platform Width:
82" (2,086 mm)
Platform Length:
152" (3,862 mm)
Drive Clearance:
93" (2,374 mm)
Locking Positions:
1
Lifting Time:
30 seconds
Standard Motor:
220 VAC / 60 Hz / 1Ph
Shipping Weight:
8,889-lbs. (4,032 kg)
Shipping Dimensions:
310'' x 32'' x 63'' (7,874 mm x 813 mm x 1,600 mm)
