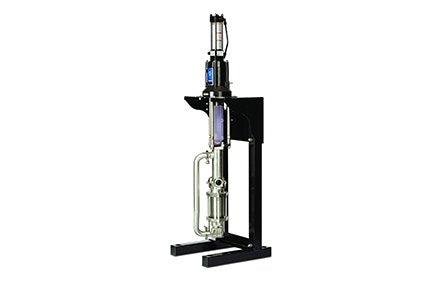

Viscount II 1200/2400 Bin Supply Piston Pump for Ink Applications

Viscount II 1200/2400 Bin Supply Piston Pump for Ink Applications

Regular price
$20,711.11
Sale price
$20,711.11
Quantity must be 1 or more


Save up to 80% on energy costs when you choose a hydraulic piston pump! When paired with any of Graco's priming piston pumps, the Viscount II hydraulic air motor offers exceptional cost savings by operating on 20% of the energy used by a pneumatic motor. The Viscount II, Graco's patented hydraulic motor, replaces the King, Bulldog or Senator motors with the 800 or 2100 pump.

  • Clean, quiet and efficient hydraulic power
  • Extremely durable hydraulic pump with long-life packing design
  • Highly efficient Viscount hydraulic motor reduces energy costs
  • Stainless steel wetted parts with neoprene packing
UPC Product: 00633955032996
Family Code: FAMINK
Unit of Measure: EA
Height: 16.8 IN   |  42.672 CM
Length: 14.4 IN   |  36.576 CM
Width: 61.2 IN   |  155.448 CM
Volume: 8.57 FT3   |  .243 M3
Chargeable Weight: 256 LBS  | 116.12 KG

Technical Specifications

Type Piston Transfer Pump
Air Inlet Size (in) 0.7506
Air Inlet Size (mm) 19.05
Application Industrial
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Size (mm) 38.1
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Material Carbon Steel
Maximum Flow Rate (GPM) 8
Maximum Flow Rate (L/min) 30.3
Maximum Hydraulic Fluid Inlet Pressure (bar) 103
Maximum Hydraulic Fluid Inlet Pressure (kPa) 10300
Maximum Hydraulic Fluid Inlet Pressure (psi) 1500
Maximum Operating Temperature (°C) 66
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (bar) 131
Maximum Working Pressure (kPa) 13100
Maximum Working Pressure (psi) 1900
Model Viscount
Power Type Hydraulic
Series II
Maximum Working Pressure (MPa) 13.1
Package Options None
