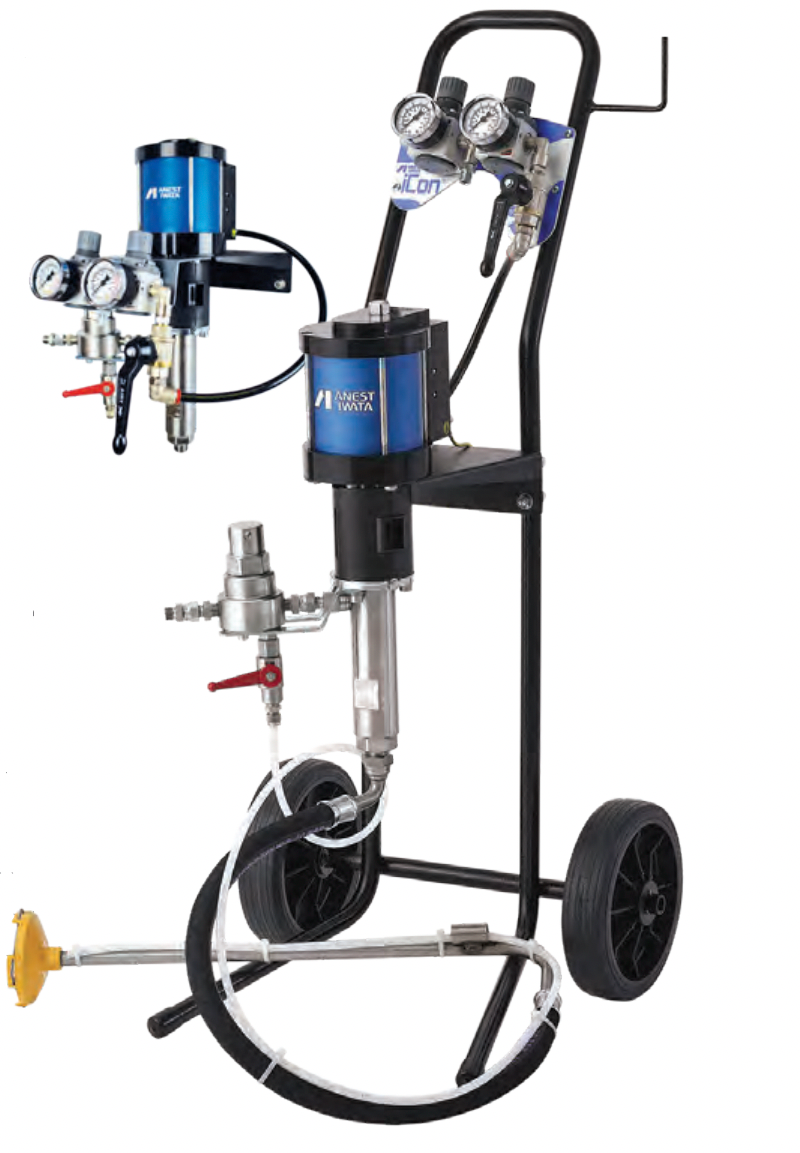

14000210-T / ICON-M333N-S2 32:1 SYS cart + Tip 513
Our iCon Series multi spray units combine the advantages of airless technology (speed, low overspray) with the advantages of conventional air spray (fine atomization finish) to suit a wide range of applications.
Available in 30:1, 32:1 and 36:1 pressure ratio’s, the iCon pumps can be used with air-assisted automatic and MSGS-200 Series manual guns. They are available cart mount and wall mount and an optional hopper setup is available.
RELIABLE
• All wetted parts are stainless steel
• Double action pilot valve
• Hard chrome plated internals
• Fluid valve seats made of carbide
EASY TO MAINTAIN
• Spring-loaded self adjusting packings
VERSATILE
• 6L hopper or suction hose
• Easily transportable
Available as a cart frame or wall mount system with the MSGS-200 Series Multi Spray Gun and 513 tip, suction hose or 6L hopper, and 25ft twin hose with high pressure fluid line and grounded air line.
| PRESSURE RATIO: | 32:1 |
| MAX. FLUID WORKING PRESSURE: | 3249 psi |
| MAX. AIR INLET PRESSURE: | 102 psi |
| MAX. FLUID DELIVERY | 60 ml |
| MAX. VOLUME/MIN. | 3.6 l/min. |
|
MAX. NO. OF CYCLES PER MIN. |
60 cyc |
