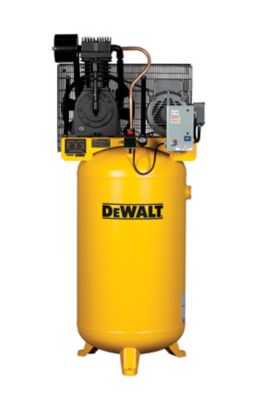

The DEWALT 80 gal. 2 stage air compressor uses a powerful 7.5 HP induction motor to deliver a steady 21.2 SCFM at 175 PSI. This DEWALT air compressor features a Baldor industrial class electric motor, which provides enough power to operate more than one air tool or device at one time. with a capacity for serious work, this machine has the endurance to keep pneumatic tools big and small running. This machine is ready for any job. Install this powerhouse into your work area, wire it up and get to work. This unit features a 230v electric motor. It should be connected to a power supply that is 230 Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. (This unit requires a 40-amp double pole breaker for proper installation.) This compressor does not include a power cord.

• Cast iron, 2 stage, oil lubricated pump
• Heavy duty 230 volt induction motor
• 80 gal. tank is ASME certified to meet all safety standards
• Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs
• Shipped with synthetic oil for optimum pump performance and long life
• Equipped with pre-wired and mounted magnetic starter

Limited Warranty: 2 Year Pump, 1 Year All Other Parts

Brand	DeWALT
Product Weight	510 lb.
Product Length	43 in.
Warranty	Limited Warranty: 2 Year Pump,1 Year All Other Parts
Airflow Volume	22.1 CFM at 100 PSI and 21.2 CFM at 175 PSI
Air Outlet Size	0.75 in.
Amperage	31 A
Application/Use	Air Brushing, Blow Cleaning, Bolting/Wrenching, Brad Nailing/Stapling, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, HVLP Painting, Sanding, Spraying, Surface Prep
Color	Yellow
Compressor Type	Oil lubricated
Country of Origin	Made in USA
Drain System	Manual
Drive Type	Belt
Handles Included	No
Hose Included	No
Lubrication Type	Oil
Maximum Operating Pressure	175 PSI
Number of Power Speeds	1
Number of Wheels	0
Oil Free Compressor	No
Portable or Stationary	Stationary
Power Type	Electric
Product Height	73.5 in.
Product Width	33 in.
Pump Material	Cast Iron
Pump Oil Capacity	53 oz.
Regulator Included	No
Running Horsepower	7.5 hp
Stage Type	Two-Stage
Tank Capacity	80 gal.
Tank Fill Time	5 min
Tank Orientation	Vertical
Tank Pressure Gauge	Yes
Voltage	230V
Manufacturer Part Number	DXCM804
