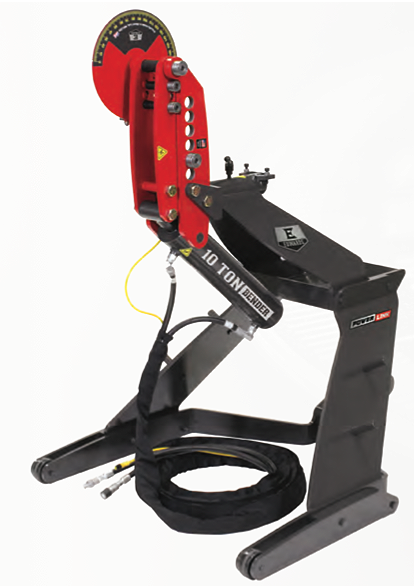

The 10 Ton Bender is a quick-connect hydraulic tool that greatly expands your fabrication capabilities. Designed for medium to heavy material, the Edwards 10 Ton Bender powers through 2" (I.D.) Schedule 40 pipe, 2-1/2" (O.D.) tube and 2" square tube quickly and accurately.

• Bend a wide variety of round or square tube and pipe up to 180°
• Horizontal or Vertical operation provides the user flexibility
• Over 300 standard dies available to handle your bending needs Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate.
• Heavy-duty rolling base for easy movement.
• Easy to use Hand/Jog controls with integrated E-Stop.
• 20’ quick-connect hoses for simple “plug & play” operation.
• Integrated proximity sensor and degree wheel ensure you make the right bend every time.
• Built in storage on the frame keeps your Bender Dies conveniently close

Specifications:

• Bend Capacity: 180°
• Pipe Capacity (In.): 2 (ID) Sch 40
• Tube Capacity (In.): 2-1/2 (OD) .095
• Square Tube Capacity (in.): 2 (OD) .25
• Cylinder (In.): 1-3/4 Ram
• Stroke (In.): 14
• Product Dimensions (In.): 40-1/2 x 36-1/2 x 42
