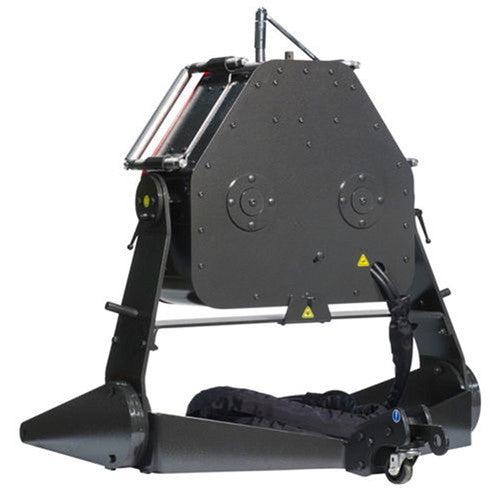

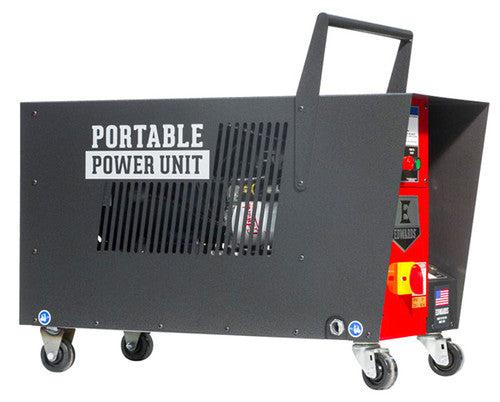

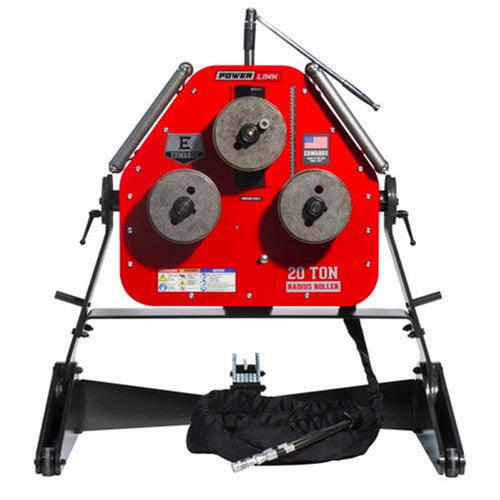

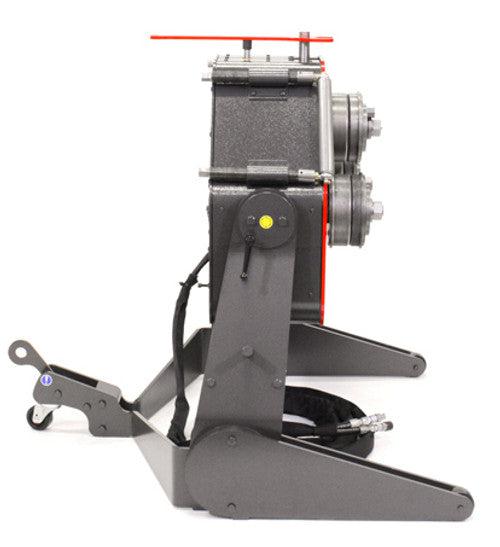

Edwards - Radius Roller and Portable Power Unit 3 Phase, 460 Volt

The Pipe, Tube and Section Radius Roller is another essential quick-connect hydraulic tool. Plug it into your Edwards Ironworker with the PowerLink System or power it separately with an Edwards Portable Power Unit to greatly expand your fabrication capabilities. Designed for medium to heavy material, the Edwards Radius Roller powers through your job quickly and accurately. The variable speed hydraulic drive allows you to dial in the appropriate speed for various materials. Quickly change the orientation from vertical for smaller projects to horizontal for those larger, heavier jobs.

• Bends a smooth, long diameter curve for a wide variety of materials including pipe, tube, square tube, solid round, at bar, angle iron & channel.
• Horizontal or Vertical operation provides the user flexibility.
• Variable speed hydraulic drive allows users to dial in the appropriate speed for different materials.
• Includes a 6 Universal Piece Die Set that accepts square tube, at bar, angle iron, & channel.
• Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate.
• Heavy-duty rolling base for easy movement.
• Easy-to-use Hand/Jog controls with integrated E-Stop.
• 20’ quick-connect hoses for simple “plug & play” operation.
• Built in storage on the frame keeps your Dies conveniently close.

Specifications:

• Round Pipe Capacity (In.): 2 (Sch. 40)
• Round Tube Capacity (In.): 2-1/2 (.095)
• Square Tube Capacity (In.): 2 (.120)
• Solid Round Capacity (In.): 1-3/8
• Flat Bar (Easy Way) (In.): 3 (.375)
• Flat Bar (Hard Way) (In.): 2-1/4 (.375)
• Angle Iron (In.): 2 (.250)
• Product Dimensions (In.): 43 x 45 x 49
