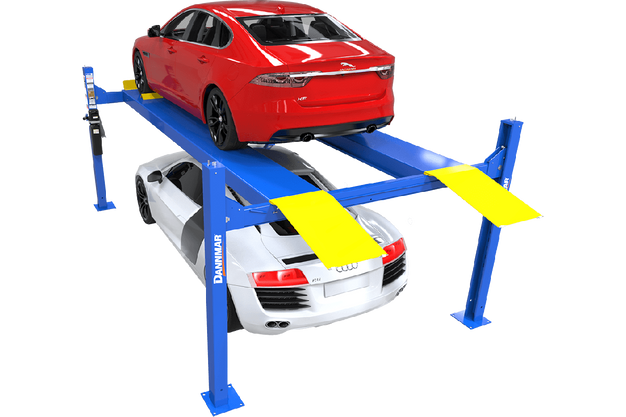

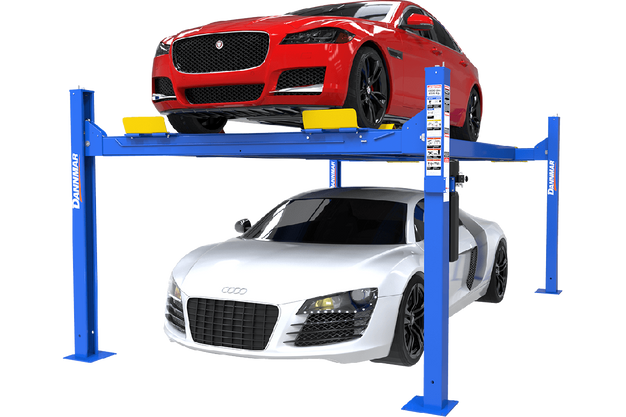

DANNMAR D4-12 12,000 Capacity Four-Post Vehicle Lift
DANNMAR D4-12 12,000 Capacity Four-Post Vehicle Lift
DANNMAR D4-12 12,000 Capacity Four-Post Vehicle Lift
DANNMAR D4-12 12,000 Capacity Four-Post Vehicle Lift

DANNMAR D4-12 12,000 Capacity Four-Post Vehicle Lift

$6,744.74

SKU: 5175317

Contact us for more information

5175317 D4-12 DANNMAR 12K Capacity 4-Post

Dannmar’s D4-12 four-post lift is engineered to handle up to 12,000-lbs. lifting capacity and provide the rugged durability your shop or garage needs. These are commercial-grade vehicle lifts from Dannmar and they have become the benchmark of quality throughout the industry.

Features

  • CE Approved and Certified
  • Meets or exceeds the standards prescribed by European Standard EN-1493
  • Mid to long-style approach ramps for low-ground clearance vehicles
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Pneumatic push-button safety release
  • Heavy-duty 1/2” aircraft cable and 1.75” roller axles
  • Safety locks enclosed in columns minimize pinch points
  • Oversized sheave diameter reduces cable fatigue
  • Large self-lubricating cable rollers
  • Multi-position safety locks in each column
  • Customizable power unit location
  • Approach ramps incorporate built-in rear-wheel chocks
  • Independent backup slack-cable safety latches
  • Runways feature non-skid surface
  • ETL approved
Lifting Capacity 12,000 lbs. (5,443 kg)
A - Min. Runway Height 6.75" (171 mm)
B - Max. Rise 68.75" (1,746 mm)
C - Max. Lifting Height 77.5" (1,969 mm)
D - Ramp Clearance* (Max. Rise) 49" (1,245 mm)
E - Height of Columns 92" (2,337 mm)
F - Drive-Thru Clearance 98” (2,482 mm)
G - Overall Width 127.5" (3,239 mm)
H - Width Between Columns 115.75" (2,940 mm)
I - Overall Length 233.5" (2,940 mm)
J - Outside Columns 115.75" (2,940 mm)
K - Width Between Runways 34.5" (876 mm) or 41.5" (1,054 mm)
L - Runway Centerline 54.5" (1,384 mm) or 61.5" (1,562 mm)
M - Outside Edge of Runways 74.5" (1,892 mm) or 81.5" (2,070 mm)
N - Runway Width 20" (508 mm)
O - Length of Runways 194.75" (4,947 mm)
Min. Wheelbase @ Rated Capacity 140” (3,556 mm)
Min. Wheelbase @ 75% Capacity 120” (3,048 mm)
Min. Wheelbase @ 50% Capacity 100” (2,540 mm)
Min. Wheelbase @ 25% Capacity 80” (2,032 mm)
Locking Positions 15 (spaced every 4” / 102 mm)
Time to Full Rise 60seconds
Motor 220 VAC / 60 Hz / 1 Ph
