Used in conjunction with system pressure switch–can warn of a fault while allowing lube system to continue to deliver to critical bearings.
Requires replacement of the rupture disc to restart the lube system.
Easy information on blocked lines, high system pressure or blocked bearings.

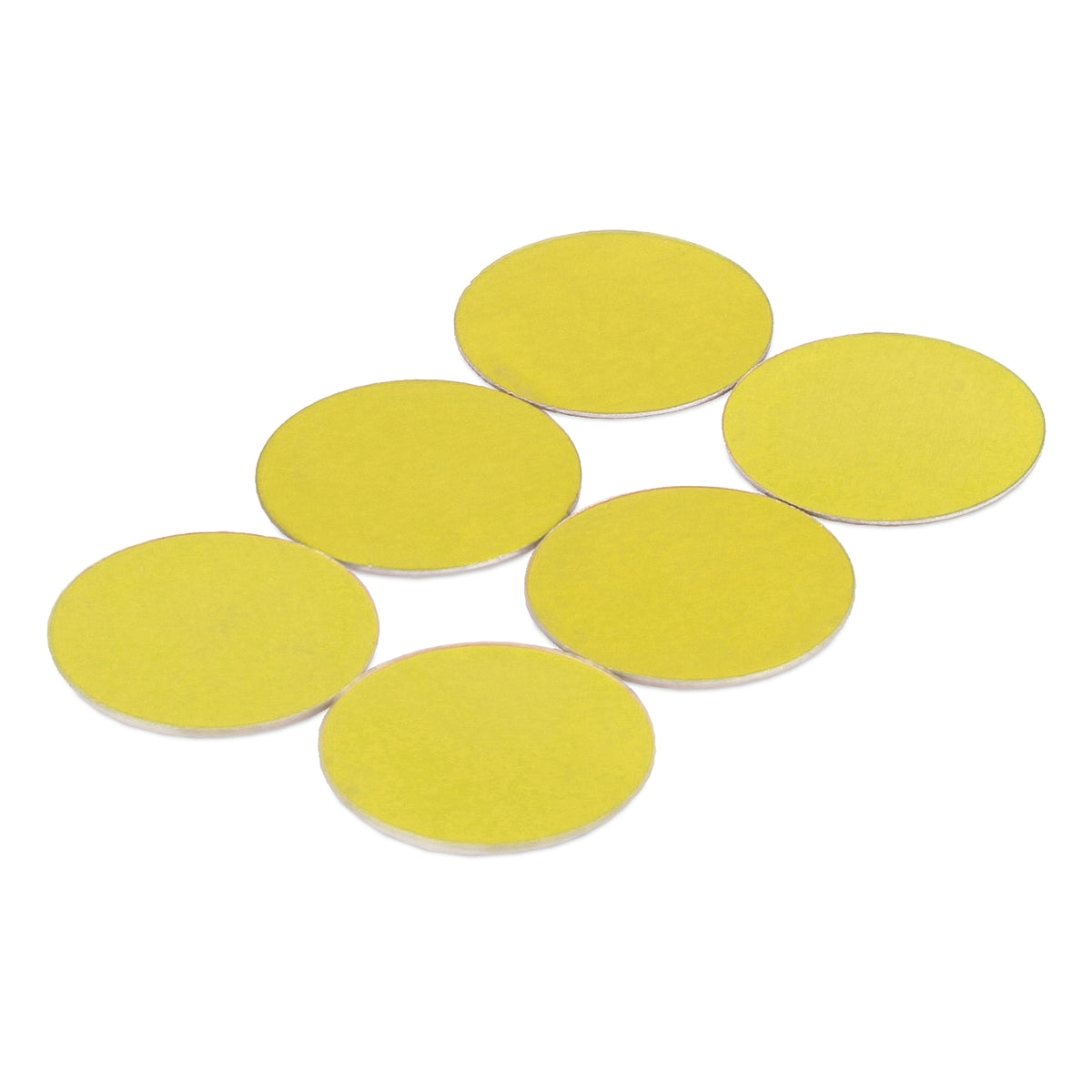

Replacement Rupture Packs of 6 (11/16 inch / 17.5 mm diameter discs)
1,450 psi - yellow
- Lubriquip part number 560-900-270
UPC Product: 00633955335004
Family Code: FAMCPT
Unit of Measure: EA
Height:
.2 IN
| .508 CM
Length:
4.25 IN
| 10.795 CM
Width:
2.45 IN
| 6.223 CM
Volume:
.001 FT3
| 0 M3
Chargeable Weight:
0.013 LBS
| 0.006 KG
Technical Specifications
| Type | Rupture Disk |
|---|---|
| Color | Yellow |
| Maximum Working Pressure (psi) | 1450 |
| Maximum Working Pressure (kPa) | 9991 |
| Maximum Working Pressure (bar) | 100 |
| Number of Pieces | 6 |
| Overall Diameter (cm) | 1.7 |
| Overall Diameter (in) | 0.688 |
| Overall Diameter (mm) | 17 |
| Maximum Working Pressure (MPa) | 10 |
