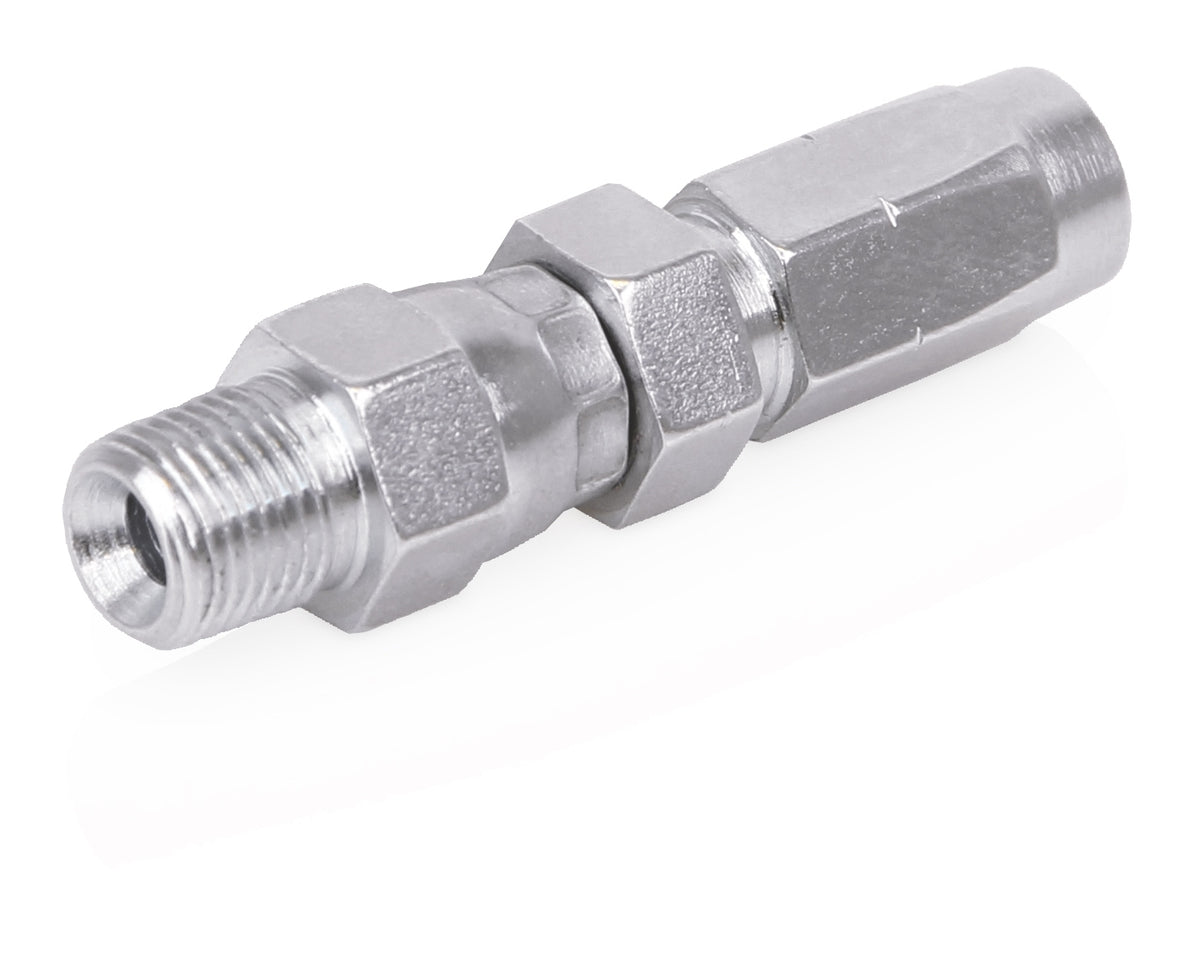

Field-Installable Swivel Hose End Fitting
1/8" ID Hose
1/8 NPT Male
UPC Product: 755652319559
Family Code: FAMCPT
Unit of Measure: EA
Height:
.5 IN
| 1.27 CM
Length:
2 IN
| 5.08 CM
Width:
.5 IN
| 1.27 CM
Volume:
0 M3
| 0 FT3
Chargeable Weight:
.08 LBS
| .03 KG
Technical Specifications
| Connection Type | Threaded |
|---|---|
| Hose Inside Diameter (in) | 0.125 |
| Hose Inside Diameter (mm) | 3 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20670 |
| Maximum Working Pressure (psi) | 3000 |
| Overall Length (cm) | 5 |
| Overall Length (in) | 2 |
| Overall Length (mm) | 51 |
| System of Measurement | Imperial |
| Thread Gender | Male |
| Thread Size (cm) | 0.3175 |
| Thread Size (in) | 0.125 |
| Thread Size (mm) | 3.175 |
| Thread Type | NPT |
| Maximum Working Pressure (MPa) | 20.7 |
