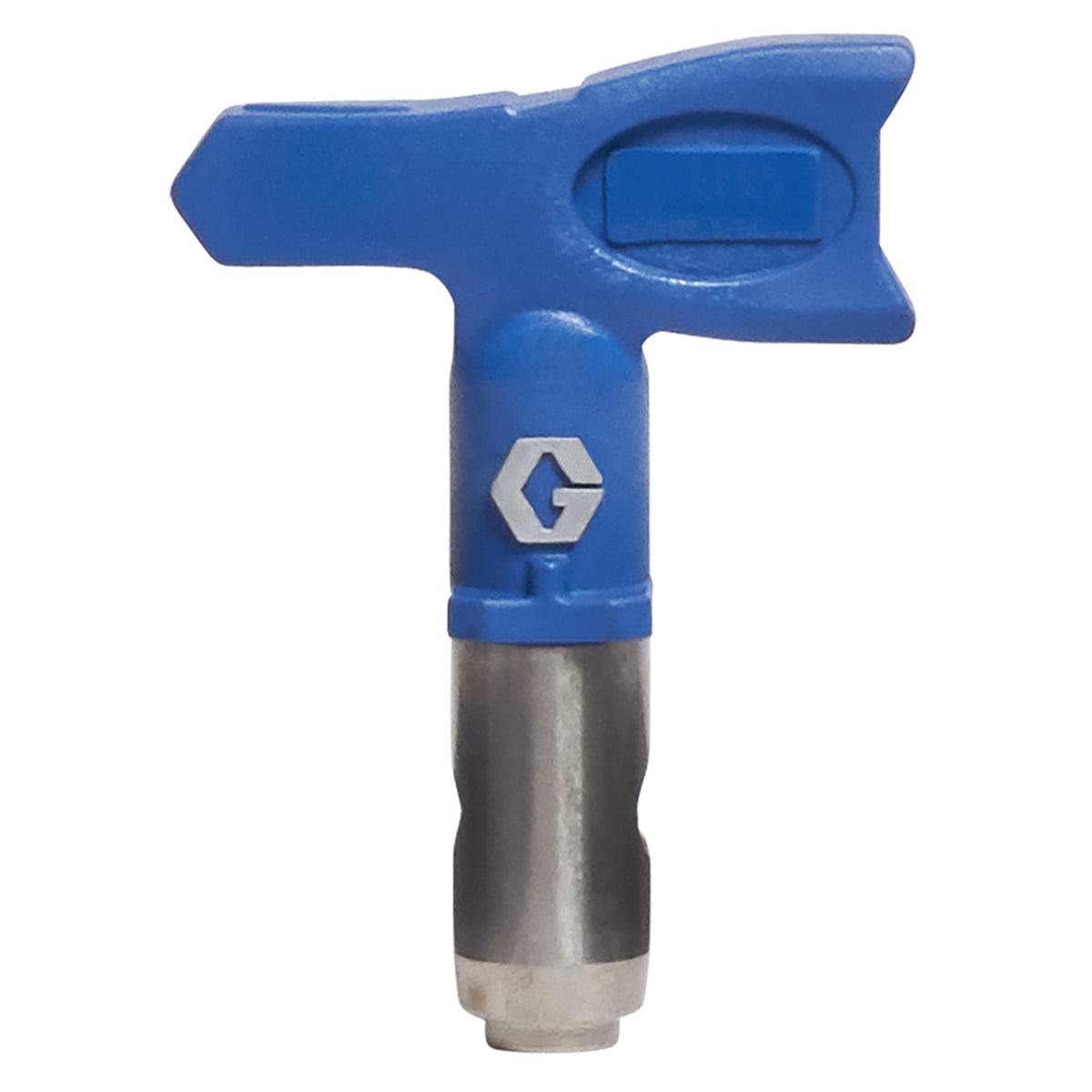

The Reverse-A-Clean (RAC) 439 RAC X SwitchTip produces an 8 to 10 inch fan and has a 0.039 inch orifice. Reverse the SwitchTip to easily clear clogs.
Used for residential, commercial or industrial applications.
-
Best Tip on the Market
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
-
Easy to Identify Tip Size
- Large raised tip size numbers are always legible – even when covered with paint
-
Superior Tip Design
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
UPC Product: 00633955267527
Family Code: FAMLTX
Unit of Measure: EA
Height: .85 IN | 2.159 CM
Length: 2.75 IN | 6.985 CM
Width: 5.31 IN | 13.487 CM
Volume: .007 FT3 | 0 M3
Chargeable Weight: 0.075 LBS | 0.034 KG
Technical Specifications
| ORIFICE DIAMETER (IN) | 0.039 |
|---|---|
| MAXIMUM WORKING PRESSURE (KPA) | 28000 |
| MAXIMUM WORKING PRESSURE (PSI) | 4050 |
| MAXIMUM WORKING PRESSURE (BAR) | 280 |
| COMPATIBLE MATERIAL | Lacquer to Mastic, Latex Paint |
| FOR USE WITH | RAC X 喷嘴座, RAC X ハンドタイト チップガード, RAC X HandTite Tip Guard, RAC X HandTite 팁 가드 |
| TYPE | Spray Tip |
| MAXIMUM FAN WIDTH (IN) | 8 |
| MAXIMUM FAN WIDTH (MM) | 254 |
| SPRAY PATTERN | Fan |
| TIP TYPE | Airless |
| PATTERN SIZE (IN) | 8 to 10 |
| MAXIMUM FLOW RATE (GPM) | 1.63 |
| MAXIMUM FAN WIDTH (CM) | 20 |
| MAXIMUM FLOW RATE (L/MIN) | 6.17 |
| MINIMUM FAN WIDTH (IN) | 8 |
| MINIMUM FAN WIDTH (MM) | 203 |
| PATTERN SIZE (MM) | 203.2 to 254 |
| MODEL | RAC X |
| SERIES | LTX SwitchTi |
