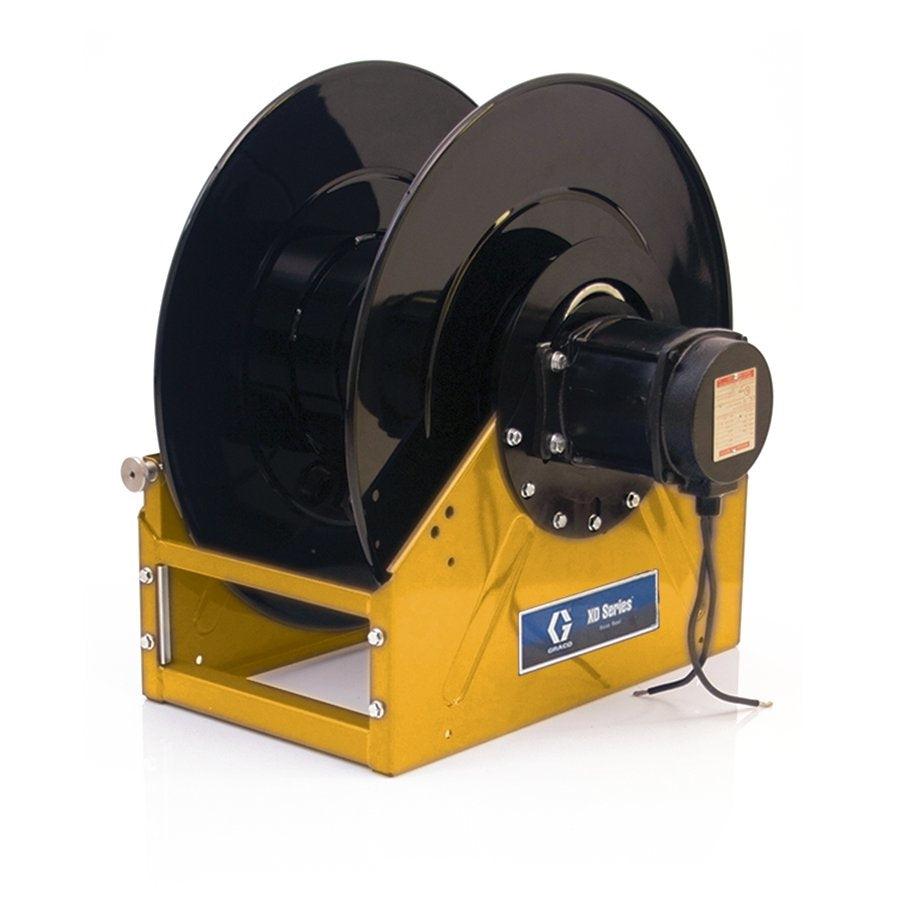

Graco XD70™, Diesel Fuel/WOE, 1-1/2 in. (38 mm) Inlet/Outlet, Bare Reel (1-1/2 in. X 50 ft. (38 mm X 15 m) Capacity), NPT, Pneumatic Motor, Yellow

Graco XD70™, Diesel Fuel/WOE, 1-1/2 in. (38 mm) Inlet/Outlet, Bare Reel (1-1/2 in. X 50 ft. (38 mm X 15 m) Capacity), NPT, Pneumatic Motor, Yellow

Regular price
$3,520.00
Sale price
$3,520.00
Quantity must be 1 or more


The innovative design of the XD60, XD70 and XD80 Series Powered Hose Reel family is packed with features to help you work safer, smarter and faster. The direct-drive motor options include hydraulic, pneumatic and electric for air, water, petroleum- and synthetic-based oil, grease, diesel fuel dispense and waste oil evacuation applications.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Safe, Reliable Direct Drive and Gear Motors - Drive unit is clean and lubricated for life No need to worry about greasy, exposed drive chains that need maintenance and can be dangerous to operators
  • Easy System Integration - Easily change the inlet and motor direction to give you the option of a right or left hand flow orientation
  • Heavy-duty Welded Spool - Built to handle the weight of heavy hoses, designed to surround and protect the drive unit from the elements to promote longer lasting, safer operation
  • Rugged and Durable Body - Heavy-duty one piece welded frame is engineered to flex under extreme operating conditions and is stronger than bolted frames that can loosen with use Individually painted and powder coated components have superior corrosion resistance over assembled and painted products
UPC Product: 00633955139336
Family Code: FAMPHR
Unit of Measure: EA
Height: 38.4 IN   |  97.536 CM
Length: 27.6 IN   |  70.104 CM
Width: 36 IN   |  91.44 CM
Volume: .625 M3   |  22.08 FT3
Chargeable Weight: 229.845 LBS  | 104.206 KG

Technical Specifications

Color Yellow
Dry Weight (lb) 124
Inlet Size (in) 1.5
Inlet Size (mm) 38.1
Inlet Thread Type NPT
Maximum Temperature (°C) 82
Maximum Temperature (°F) 180
Maximum Working Pressure (psi) 100
Minimum Temperature (°C) -40
Minimum Temperature (°F) -40
Outlet Size (in) 1.5
Outlet Size (mm) 38.1
Outlet Thread Type NPT
Overall Height (in) 26.1
Overall Height (mm) 663
Overall Length (in) 26
Overall Length (mm) 660
Overall Width (in) 23.7
Overall Width (mm) 602
Series 70
Type Pneumatic Motor-Rewind Hose Reel
Application Diesel Fuel, WOE
Bare Reel 1
Maximum Working Pressure (kPa) 670
Outlet Thread Gender Female
Hose Length (ft) 50
Outlet Size (cm) 3.81
Frame Type Box Frame
Recommended Fluid Type Diesel Fuel, Combustible diésel, WOE, WOE
Maximum Working Pressure (bar) 6.7
Maximum Working Pressure (MPa) 0.7
Inlet Thread Gender Female
Inlet Size (cm) 3.81
Reel Thread Type NPT
Overall Height (cm) 66.3
Overall Length (cm) 66
Recommended Environment Indoor, Outdoor
Overall Width (cm) 60.2
Hose Reel Type Bare Reel
Model XD
