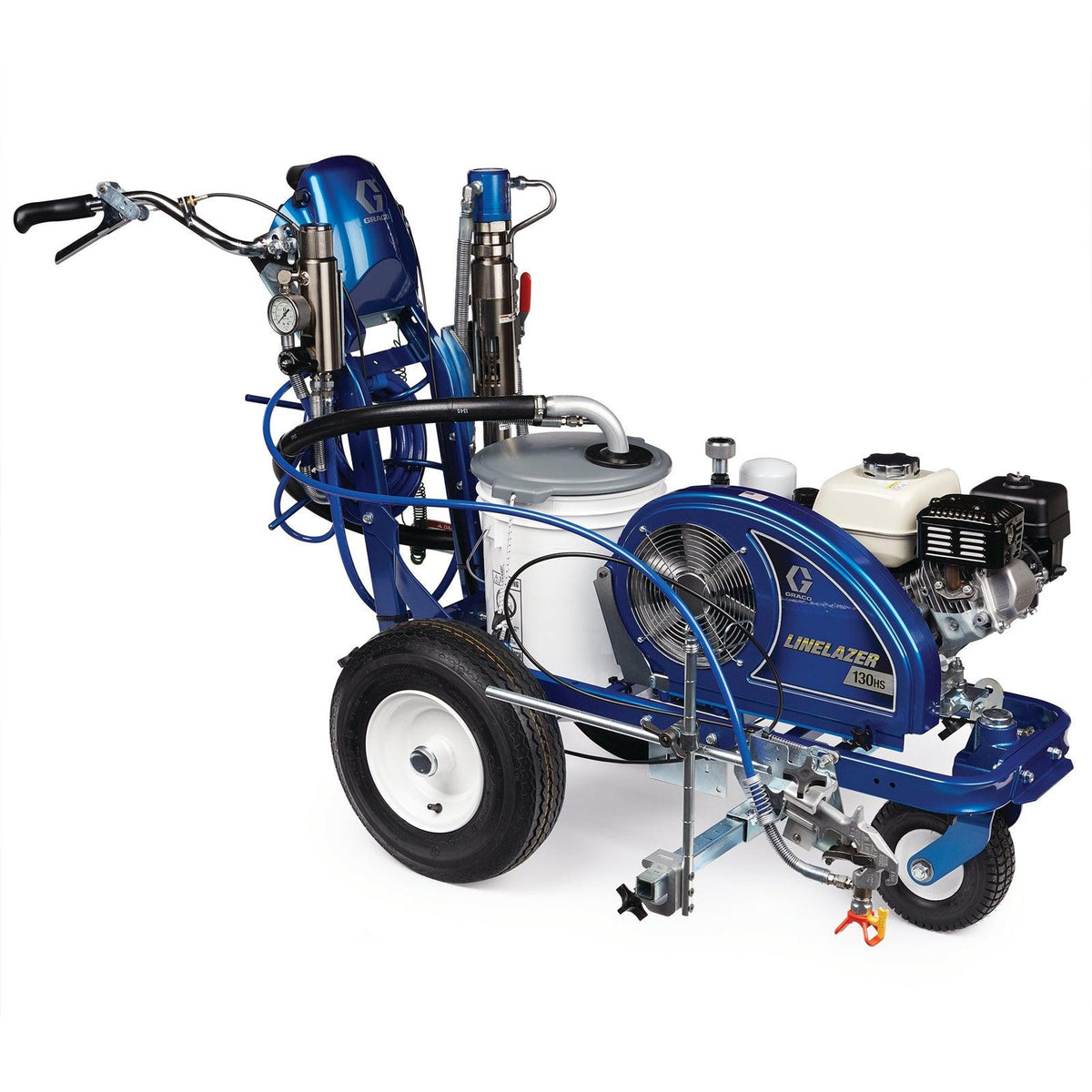

The LineLazer 130HS is the preferred hydraulic airless striping unit that consistently delivers everyday striping performance with proven power, day in and day out.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
-
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
-
QuikSelect Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
-
DualComfort Handlebar System
- Easy Handlebar Adjustment
-
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
-
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
-
High-Efficiency Hydraulic Motor
- Uninterrupted Performance
- No-Stall design
-
High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
-
Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
-
Storage Compartment
- New compartment for tips, guards and miscellaneous items
UPC Product: 00755652319948
Family Code: FAMLNS
Unit of Measure: EA
Height:
50.5 IN
| 128.27 CM
Length:
73.5 IN
| 186.69 CM
Width:
38.75 IN
| 98.425 CM
Volume:
83.235 FT3
| 2.357 M3
Chargeable Weight:
866.448 LBS
| 392.827 KG
Technical Specifications
| Compatible Surfaces | Pavement, Turf |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX120 |
| Fuel Tank Capacity (gal) | 0.66 |
| Fuel Tank Capacity (L) | 2.5 |
| Gun Activation | Manual |
| Includes | 喷嘴, チップ, Tips, Boquillas, 팁, 喷嘴座, ガード, Guard, protector, 가드, 喷枪, ガン, Gun, pistola, 건, 软管, ホース, Hose, manguera, 호스, 泵过滤器, ポンプフィルター, Pump Filter, filtro de bomba, 펌프 필터, 喉部密封液, TSL, TSL, TSL, TSL |
| Maximum Flow Rate (GPM) | 1.3 |
| Maximum Flow Rate (L/min) | 4.9 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Maximum Tip Size (cm) | 0.0940 |
| Maximum Tip Size (in) | 0.037 |
| Maximum Tip Size (mm) | 0.9398 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer |
| Number of Colors | One Color |
| Number of Guns | 1 |
| Number of Hoppers | 1 |
| Number of Pumps | 1 |
| Overall Height (cm) | 113.03 |
| Overall Height (in) | 44.5 |
| Overall Height (mm) | 1130.3000 |
| Overall Length (cm) | 173.36 |
| Overall Length (in) | 68.25 |
| Overall Length (mm) | 1733.55 |
| Overall Width (cm) | 87 |
| Overall Width (in) | 34.25 |
| Overall Width (mm) | 869.9500 |
| Power Rating (HP) | 4 |
| Power Rating (kW) | 2.98 |
| Pump Type | Endurance |
| Series | 130HS |
| Compatible Material | Road-Marking Paint |
| Weight (kg) | 119 |
| Weight (lb) | 263 |
| Type | Walk-Behind Line Striper |
| Power Source | Gas Hydraulic |
| Product Series | Standard |
