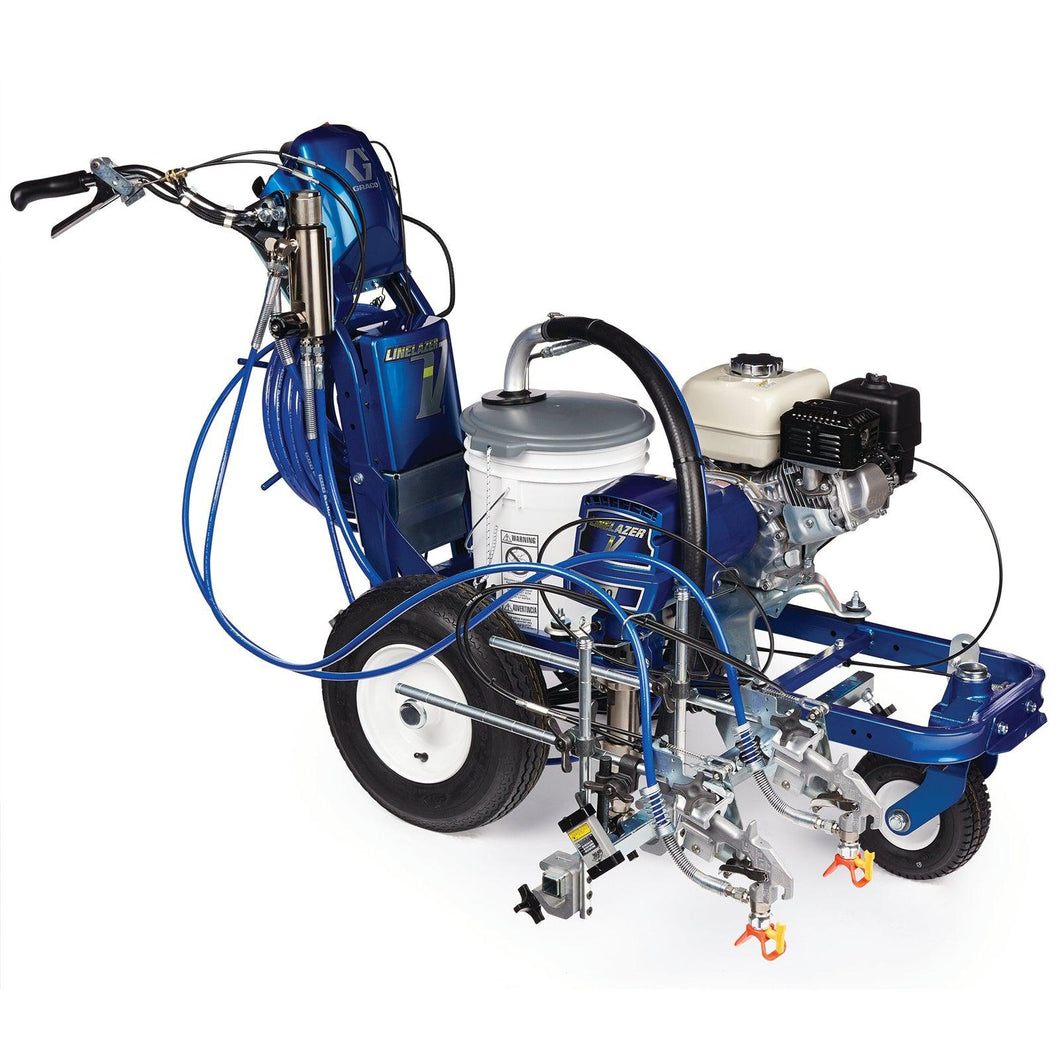

LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns

LineLazer V 5900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns

Regular price
$22,980.00
Sale price
$22,980.00
Quantity must be 1 or more


When it’s time for 1 or 2-gun airless line striping performance with extra power, the LineLazer V 5900 HP Automatic Series striper is an excellent choice. These durable striping machines deliver higher performance and consistent lines for all your basic striping needs.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Additional Features
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
    • LazerGuide 1700 Start/Stop Laser
UPC Product: 00755652350415
Family Code: MISC
Unit of Measure: EA
Height: 51 IN   |  129.54 CM
Length: 39 IN   |  99.06 CM
Width: 74 IN   |  187.96 CM
Volume: 85.177 FT3   |  2.412 M3
Chargeable Weight: 886.663 LBS  | 401.992 KG

Technical Specifications

Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX160
Fuel Tank Capacity (gal) 0.95
Fuel Tank Capacity (L) 3.6
Gun Activation Manual, Automatic
Includes 喷嘴, チップ, Tips, Boquillas, 팁, 喷嘴座, ガード, Guard, Protección, 가드, 喷枪, ガン, Gun, Pistola, 건, 软管, ホース, Hose, Manguera, 호스, 泵过滤器, ポンプフィルター, Pump Filter, Filtro de bomba, 펌프 필터, 喉部密封液, TSL, TSL, TSL, TSL
Maximum Flow Rate (GPM) 1.6
Maximum Flow Rate (L/min) 6
Maximum Sound Pressure Level (dB(A)) 87.1
Maximum Tip Size (cm) 0.0737
Maximum Tip Size (in) 0.029
Maximum Tip Size (mm) 0.7366
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Overall Height (cm) 113.03
Overall Height (in) 44.5
Overall Height (mm) 1130.3000
Overall Length (cm) 174.63
Overall Length (in) 68.75
Overall Length (mm) 1746.25
Overall Width (cm) 87
Overall Width (in) 34.25
Overall Width (mm) 869.9500
Power Rating (HP) 5.5
Power Rating (kW) 4.1
Pump Type Endurance
Series 5900
Compatible Material Road-Marking Paint
Weight (kg) 121
Weight (lb) 266
Type Walk-Behind Line Striper
Power Source Gas
Product Series HP Automatic
