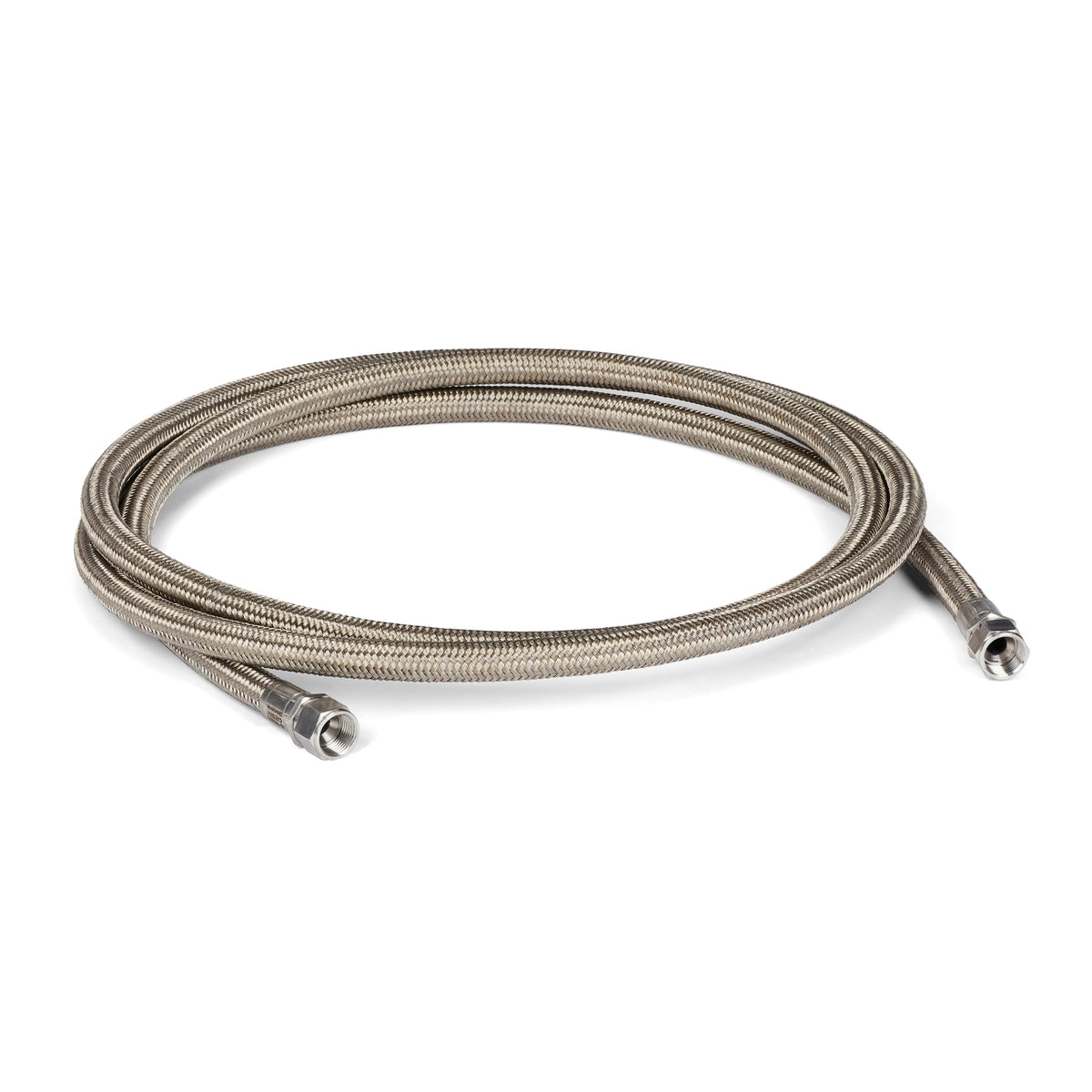

Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Feel free to call or chat with us for recommendations.
📦
Ships in 2-3 weeks, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- For use with Graco sealants and adhesives systems.
UPC Product: 00755652611851
Family Code: FAMAPA
Unit of Measure: EA
Height:
6.6 IN
| 16.764 CM
Length:
18.3 IN
| 46.482 CM
Width:
18.2 IN
| 46.228 CM
Volume:
1.272 FT3
| .036 M3
Chargeable Weight:
13.243 LBS
| 6.004 KG
Technical Specifications
| Hose Heating Type | Ambient |
|---|---|
| Inside Diameter (in) | 0.495 |
| Inside Diameter (mm) | 12.573 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°C) | 100 |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Size | 7/8 -14 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Maximum Working Pressure (bar) | 276 |
| Hose Length (m) | 3 |
| Hose Length (ft) | 10 |
| Voltage (V) | N/A |
| Thread Gender | Female |
| Maximum Working Pressure (MPa) | 27.6 |
| Hose Diameter (in) | 0.495 |
| Hose Diameter (mm) | 12.6 |
| JIC Size | JIC 10 |
