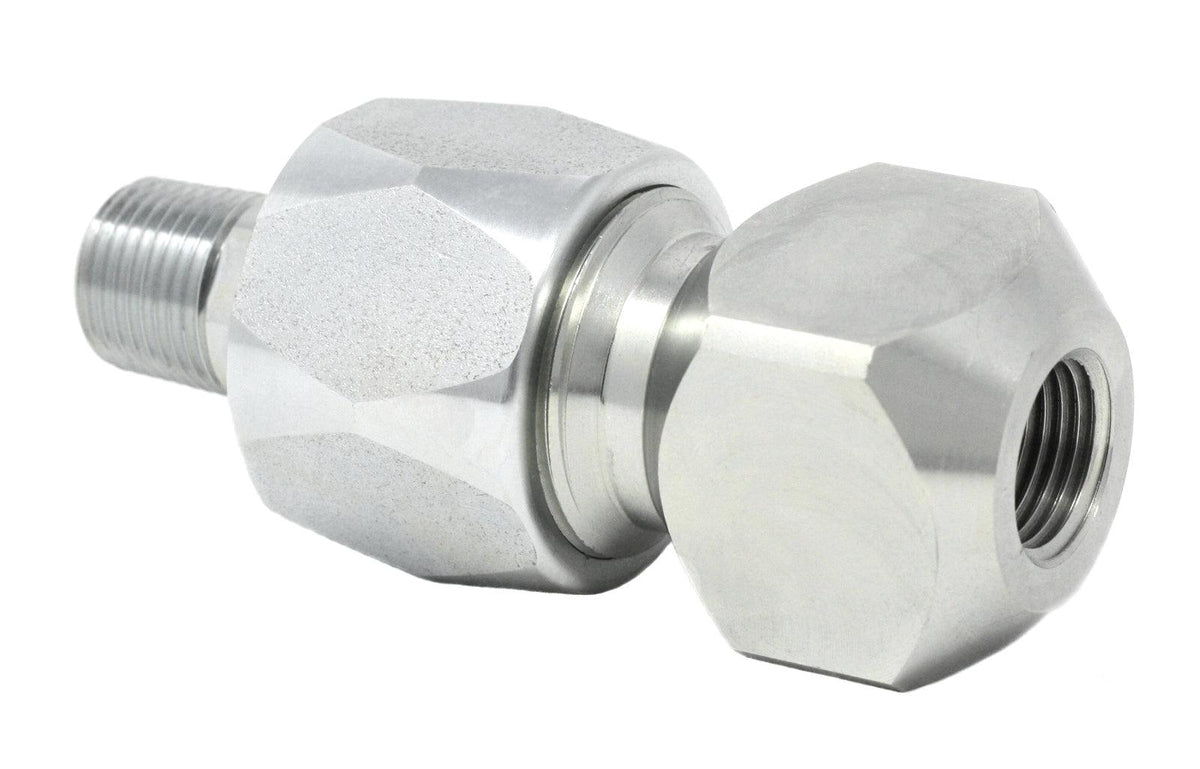

180º Straight Swivel - 1/2 inch (12.7 mm)
- Lubriquip part number 503-707-001
UPC Product: 00633955360686
Family Code: FAMCPT
Unit of Measure: EA
Height:
2.6 IN
| 6.604 CM
Length:
6.1 IN
| 15.494 CM
Width:
4.6 IN
| 11.684 CM
Volume:
.042 FT3
| .001 M3
Chargeable Weight:
1.89 LBS
| .86 KG
Technical Specifications
| Angle (°) | 180 |
|---|---|
| Connection Type | Threaded |
| For Use With | Pipe |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Size A (in) | 1/2 |
| Size A (mm) | 12.7 |
| Size B (in) | 1/2 |
| Size B (mm) | 12.7 |
| System of Measurement | Imperial |
| Thread Type | NPTF |
| Type | Connector |
| Style | Swivel |
| Maximum Working Pressure (MPa) | 20.7 |
