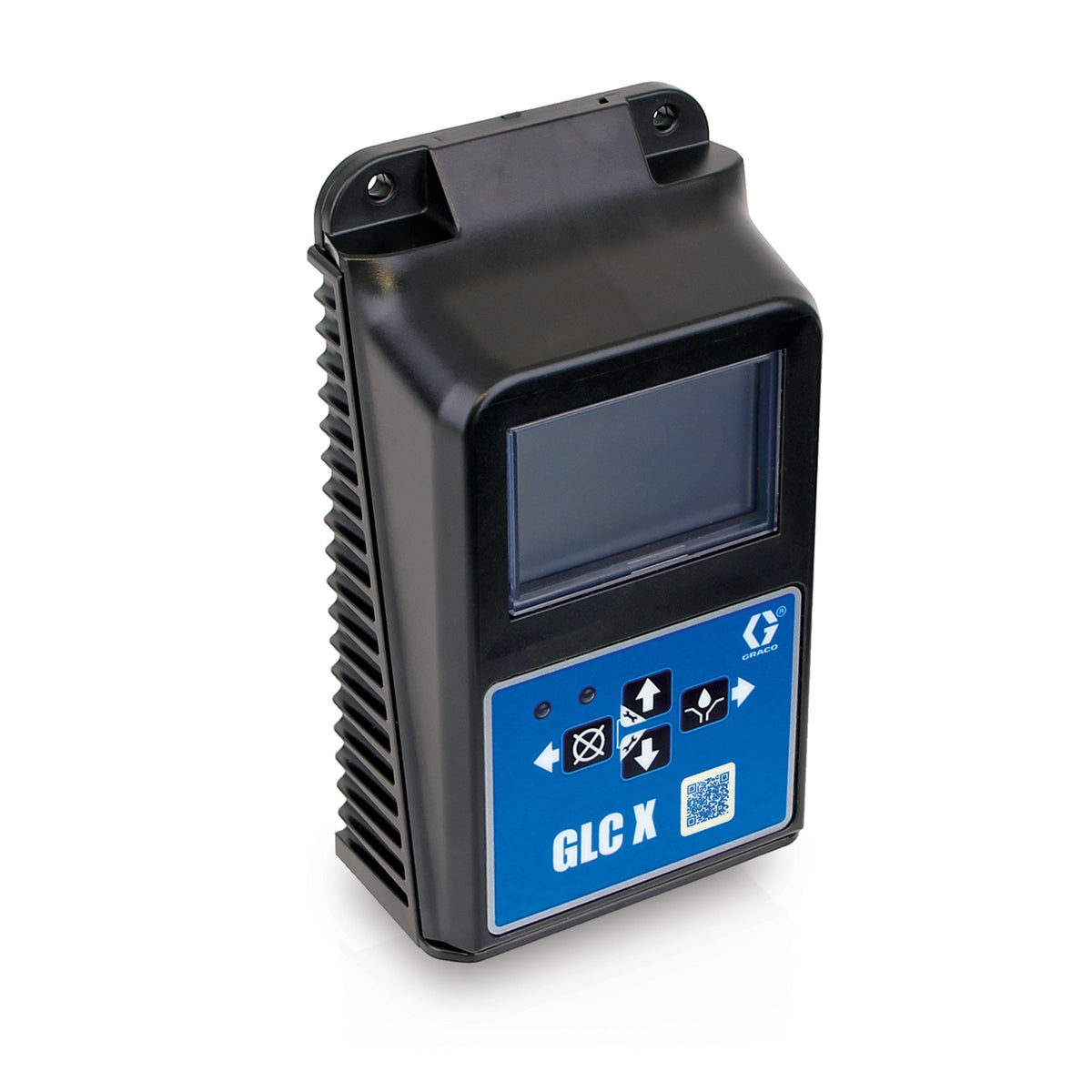

The powerful, new, easy-to-use Graco GLC X auto lubrication controller captures more information in more ways, so operators, technicians and managers can make faster, smarter decisions that drive better productivity.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Indoor/Outdoor Mountable (IP69K) - Designed to withstand all the elements, including high-pressure washes and inclement weather encountered at the harshest and dirtiest sites.
- Easy-to-Read LED Screen - Soft amber LED lighting capable of displaying text codes, faults and other data clearly in any ambient light without distracting operators.
- Real-Time System Reporting - Program and display a wide range of customisable functions – including lubrication intervals, pressure limits, lubricant levels and more.
- Smart Device and Mobile App - With the Auto Lube™ app, monitor lubrication levels, configure settings, track history and share important diagnostics.
- Universal Compatibility - One controller for all your lubrication systems simplifies training and inventory.
- Active Current Protection - 9-30 VDC, 10 Amp continuous power supply protects grease pumps from over current and entire system from misfires, electrical shorts and surges.
UPC Product: 00755652951780
Family Code: FAMCPT
Unit of Measure: EA
Height:
9.625 IN
| 24.448 CM
Length:
8 IN
| 20.32 CM
Width:
5 IN
| 12.7 CM
Volume:
.223 FT3
| .006 M3
Chargeable Weight:
2.32 LBS
| 1.052 KG
Technical Specifications
| Amperage (A) | 15 |
|---|---|
| Number of Pieces | 1 |
| Series | X |
| Type | Controller |
| Intrusion Rating | IP69K |
| Minimum Operating Temperature (°C) | -30 |
| Minimum Operating Temperature (°F) | -22 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Voltage (V dc) | 30 |
| Maximum Voltage (V) | 30 |
| Minimum Voltage (V dc) | 9 |
| Minimum Voltage (V) | 9 |
| Minimum Ambient Temperature (°F) | -22 |
| Minimum Storage Temperature (°C) | -30 |
| Minimum Storage Temperature (°F) | -22 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Weight (kg) | 319 |
| Weight (lb) | 0.7 |
| Power Consumption (W) | 450 |
| Overall Depth (cm) | 5 |
| Overall Depth (in) | 1.98 |
| Overall Height (cm) | 16.9 |
| Overall Height (in) | 6.66 |
| Overall Height (mm) | 169 |
| Overall Width (cm) | 9.2 |
| Overall Width (in) | 3.62 |
| Overall Width (mm) | 92 |
| Current Consumption (A) | 15 |
| Count Rate (counts/sec @ 50% duty cycle) | 5 |
| Maximum Program Time (min) | 99 |
| Maximum Program Time (sec) | 5999 |
| Minimum Program Time (hrs) | 0 |
| Minimum Program Time (min) | 0 |
| Minimum Program Time (sec) | 10 |
| Minimum Program Time (strokes) | 1 |
| Minimum Monitor Time (hrs) | 0 |
| Minimum Monitor Time (min) | 1 |
| Minimum Monitor Time (sec) | 0 |
| Minimum Monitor Time (strokes) | 1 |
| Maximum System Cycle Count | 100 |
| Minimum System Cycle Count | 1 |
| Auxiliary Alarm Max Switching Current (A) | 10 |
| Auxiliary Alarm Max Switching Voltage (VDC) | 9-30 |
| Auxiliary Alarm Voltage | 9-30 VDC |
| Low Level Alarm Max Switching Current (A) | 10 |
| Low Level Alarm Max Switching Voltage (VDC) | 30 |
| Pump Control Max Switching Current (A) | 10 |
| Pump Control Max Switching Voltage (VDC) | 30 |
| Pump Control Voltage (VDC) | 9-30 |
| Machine Count Control Input | Input 4 |
| Lubrication Level Input | Input 1: 10V |
| Power Source | Electric |
| Application | In-Plant Machinery, Off-Road Equipment, On-Road Vehicles |
| Control Mode | Timer, Pressure, Cycle |
| Model | GLC |
