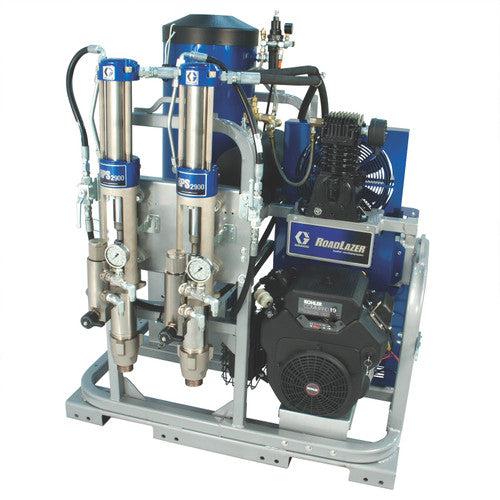

RoadPak Advanced Controller, RoadPak 2 Gun Arm, Slide-in Mounting Frame, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, Steerable Carriage
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
FEATURES
RoadPak 2-Pump System
Heavy-Duty RPS 2900 Hydraulic System
- No-stall design ensures unparalleled productivity
- Maximum pressure of 200 bar
- Proven Displacement Pump System, delivering reliable paint pumping performance for decades
- Prime valve recirculates paint to keep it mixed and ready for use
Bead Tank System
- ASME-rated, capable of dispensing up to 18 kg per minute
- Large fill spout opening simplifies material loading
RoadPak 2-Pump/2-Gun Arm
- Quick setup and high output
- 3-gun capacity
- Tool-free gun adjustments
Advanced Controller
- Reduces setup time
- Built-in advanced patterns for easy recall
- Pattern preview offers a visual display of selected colors and patterns
- Export feature provides "proof of job" documentation
Heavy-Duty Modular Frame System
- Durable steel frame designed for long-term use
- Easily add desired options in minutes to enhance your striping system
- Compact size allows it to fit almost anywhere, from pickup trucks to utility vehicle beds
Rear Seat Kit
- Simplifies operation with all controls within easy reach
Steerable Carriage
- Ensures precise, accurate lines
- Joystick controller with variable speed adjustment
- Driver can focus on the road while a second operator handles the striping
Heavy-Duty Compressor
- 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
- Accumulation tank supports up to 5 airless paint guns and 5 bead guns
Kohler® Power
- 19 HP (14.2 kW) Kohler engine
- Over 15 years of proven reliability
SPECIFICATIONS
| Bead System | Pressurized Bead System |
|---|---|
| Engine Brand | Kohler |
| Includes |
|
| Maximum Flow Rate (GPM) | 5 |
| Maximum Flow Rate (L/min) | 18.9 |
| Maximum Sound Pressure Level (dB(A)) | 91.7 |
| Maximum Working Pressure (bar) | 200 |
| Maximum Working Pressure (kPa) | 2000 |
| Maximum Working Pressure (psi) | 2900 |
| Model | RoadLazer |
| Number of Guns | 2 |
| Number of Pumps | 2 |
| Power Rating (HP) | 19 |
| Power Rating (kW) | 14.2 |
| Series | RoadPak |
| Type | Truck-Mounted Line Striper |
| Bead Tank Size (lb) | 450 |
| Mount Type | Slide-In Mounting Frame |
