Graco 25D275 RoadLazer RoadPak Pump System, Option 8

Graco 25D275 RoadLazer RoadPak Pump System, Option 8

Regular price
$90,590.00
Sale price
$90,590.00
Quantity must be 1 or more

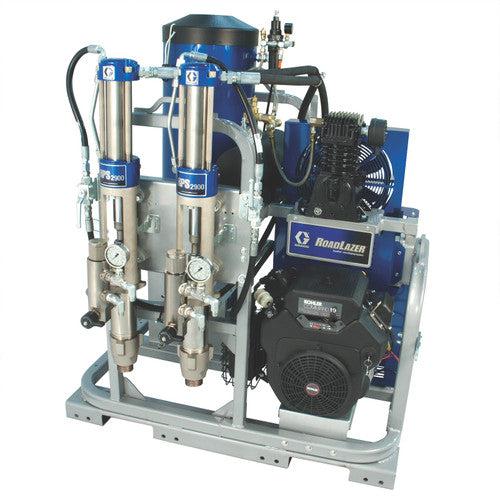

The Graco RoadLazer RoadPak System, with its modular design, combines the ease of use of a walk-behind striper with the high production speeds typically associated with Long Line trucks.

Option 8 is a truck-mounted system that includes a 1-pump RoadPak Pump System, a 450-pound Bead Tank, 2-Gun Arm, RoadView HD Camera System, Advanced Controller, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, and Steerable Carriage.

FEATURES

RoadPak 2-Pump System

Heavy-Duty RPS 2900 Hydraulic System

  • No-stall design for exceptional productivity
  • Maximum pressure of 200 bar
  • Proven Displacement Pump System, offering consistent paint pumping performance for decades
  • Prime valve recirculates paint, ensuring it stays mixed and ready for use

Bead Tank System

  • ASME-rated, capable of dispensing up to 18 kg per minute
  • Large fill spout simplifies material loading

RoadPak 2-Pump/2-Gun Arm

  • Fast setup with high output
  • 3-gun capacity
  • Tool-free gun adjustments

Advanced Controller

  • Minimizes setup time
  • Preloaded advanced patterns for quick recall
  • Pattern preview provides a visual display of selected colors and patterns
  • Export function for "proof of job" documentation

Heavy-Duty Modular Frame System

  • Built from durable steel for long-lasting use
  • Simple to add additional options quickly, optimizing your striping system
  • Compact design fits almost anywhere, from pickup trucks to utility vehicle beds

RoadView HD Camera System

  • In-cab HD display allows operators to see behind the paint and bead guns
  • Facilitates alignment with existing stripes
  • Offers variable camera views with 6mm and 16mm options

Rear Seat Kit

  • Simplifies operation with all controls within easy reach

Steerable Carriage

  • Delivers precise, accurate lines
  • Joystick controller with variable speed adjustment
  • Enables the driver to focus on the road while a second operator handles the striping

Heavy-Duty Compressor

  • 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
  • Accumulation tank supports up to 5 airless paint guns and 5 bead guns

Kohler® Power

  • 19 HP (14.2 kW) Kohler engine
  • Over 15 years of proven reliability

SPECIFICATIONS

Bead System Pressurized Bead System
Engine Brand Kohler
Includes

RoadPak Advanced Controller, RoadPak 2 Gun Arm, Slide-in Mounting Frame, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, Steerable Carriage, RoadView HD Camera System

Maximum Flow Rate (GPM) 5
Maximum Flow Rate (L/min) 18.9
Maximum Sound Pressure Level (dB(A)) 91.7
Maximum Working Pressure (bar) 200
Maximum Working Pressure (kPa) 2000
Maximum Working Pressure (psi) 2900
Model RoadLazer
Number of Guns 2
Number of Pumps 2
Power Rating (HP) 19
Power Rating (kW) 14.2
Series RoadPak
Type Truck-Mounted Line Striper
Bead Tank Size (lb) 450
Mount Type Slide-In Mounting Frame

;
