FEATURES

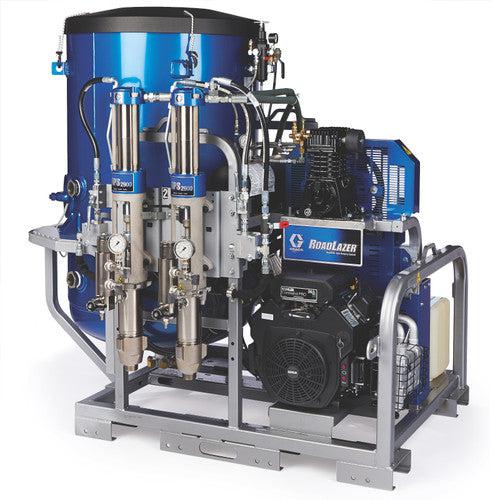

RoadPak 2-Pump System
- Heavy-Duty RPS 2900 Hydraulic System: No-stall design ensures top-tier productivity
- Maximum Pressure: 200 bar for efficient and reliable operation
- Proven Displacement Pump System: Delivers exceptional results in paint pumping over decades
- Prime Valve: Keeps paint mixed and ready by recirculating it
Bead Tank System
- ASME Rated: Capable of dispensing at a rate of up to 18 kg per minute
- Easy Loading: Large fill spout simplifies material loading
RoadPak 2-Pump/2-Gun Arm
- Fast Setup, High Output: Designed for quick deployment and high-efficiency performance
- 3 Gun Capacity: Supports up to 3 guns
- No-Tools Gun Adjustments: Easy to adjust guns without needing tools
Advanced Controller
- Reduced Setup Time: Built-in advanced patterns for fast recall
- Pattern Preview: Provides a quick visual confirmation of colors and patterns
- Export Capability: Enables "proof of job" documentation
Heavy-Duty Modular Frame System
- Durable Steel Frame: Built for long-lasting performance
- Easily Customizable: Quick and simple option additions to optimize your striping system
- Compact Size: Fits easily in a variety of spaces, including pickup beds or flatbed trucks
Rear Seat Kit
- User-Friendly Operation: All controls are easily accessible
Steerable Carriage
- Improved Accuracy: Joystick controller with variable speed for more precise lines
- Dual Operator System: Driver can focus on the road, while a second operator handles striping
Heavy-Duty Compressor
- Specifications: 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
- Supports Multiple Guns: Accumulation tank can accommodate up to 5 airless paint guns and 5 bead guns
Kohler® Power
- Reliable Engine: 19 HP (14.2 kW) Kohler engine with over 15 years of proven durability
SPECIFICATIONS
| Bead System | Pressurized Bead System |
|---|---|
| Engine Brand | Kohler |
| Includes |
|
| Maximum Flow Rate (GPM) | 5 |
| Maximum Flow Rate (L/min) | 18.9 |
| Maximum Sound Pressure Level (dB(A)) | 91.7 |
| Maximum Working Pressure (bar) | 200 |
| Maximum Working Pressure (kPa) | 2000 |
| Maximum Working Pressure (psi) | 2900 |
| Model | RoadLazer |
| Number of Guns | 2 |
| Number of Pumps | 2 |
| Power Rating (HP) | 19 |
| Power Rating (kW) | 14.2 |
| Series | RoadPak |
| Type | Truck-Mounted Line Striper |
| Bead Tank Size (lb) | 1350 |
| Mount Type | Slide-In Mounting Frame |
