Graco 25D283 RoadLazer RoadPak HD Pump System, Option HD 4

Graco 25D283 RoadLazer RoadPak HD Pump System, Option HD 4

Regular price
$111,350.00
Sale price
$111,350.00
Quantity must be 1 or more


The RoadPak HD is a high-performance striping machine that delivers twice the output, supports 5 or more guns for striping, and includes several enhancements to boost both productivity and line precision.

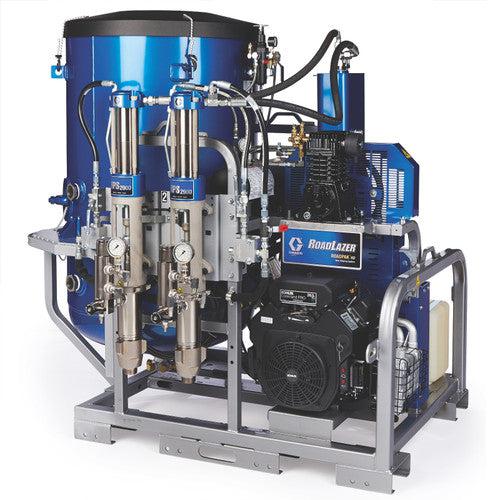

Option HD4 is a truck-mounted system equipped with a 2-pump RoadPak HD Pump System, a 1,350-pound Bead Tank, a 2-Pump 3-Gun RoadPak HD Gun Arm, RoadView HD Camera System, Advanced Controller, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, and Steerable Carriage.

FEATURES

RoadPak HD 2-Pump System

  • Enhanced Performance: Delivers up to double the output, reaching up to 37.9 LPM (10 GPM).
  • Heavy-Duty RPS 2900 Hydraulic System: No-stall design ensures continuous productivity.
  • Maximum Pressure: Can handle up to 200 bar.
  • Proven Displacement Pump System: Known for delivering consistent and reliable paint pumping results over decades.
  • Prime Valve: Keeps paint mixed and ready to use by allowing for recirculation.

Bead Tank System:

  • ASME rated and capable of dispensing up to 18 kg of material per minute.
  • Features a large fill spout for easy loading.

RoadPak HD 2-Pump/3-Gun Arm:

  • Quick setup and high output.
  • Supports 5+ guns: 5 spray guns and 5 bead guns.
  • EasyMark Gun Adjustment System: Provides simple guide marks for quick gun alignment and easy operation.

Advanced Controller:

  • Streamlines setup with built-in advanced patterns for instant recall.
  • Pattern preview lets you visualize the selected colors and patterns quickly.
  • Export functionality allows for “proof of job” documentation.

Heavy-Duty Modular Frame System:

  • Built with a durable steel frame for long-lasting performance.
  • Easily customizable in minutes to optimize your striping system.
  • Compact size fits easily in various spaces, from pickup trucks to utility vehicle beds.

RoadView HD Camera System:

  • In-Cab HD Display for viewing behind the paint and bead guns.
  • Easily aligns new stripes with old lines.
  • Offers adjustable views with 6mm and 16mm camera options.

Rear Seat Kit:

  • Convenient control access for easy operation.

Steerable Carriage:

  • Provides more accurate line application.
  • Joystick controller with variable speed settings, allowing the driver to focus on the road while a second operator manages the striping.

Heavy-Duty Compressor:

  • Delivers 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min).
  • Supports up to 5 airless paint guns and 5 bead guns with the accumulation tank.

Kohler® Engine:

  • Powered by a 19 HP (14.2 kW) Kohler engine.
  • Proven reliability with over 15 years of service.

SPECIFICATIONS

Bead System Pressurized Bead System
Engine Brand Kohler
Includes

RoadPak Advanced Controller, RoadPak HD 2 Gun Arm, Slide-in Mounting Frame, Simple Guide System, Gun Lift Winch Kit, Rear Seat Kit, Steerable Carriage, RoadView HD Camera System

Maximum Flow Rate (GPM) 10
Maximum Flow Rate (L/min) 37.8
Maximum Sound Pressure Level (dB(A)) 95.2
Maximum Working Pressure (bar) 200
Maximum Working Pressure (kPa) 2000
Maximum Working Pressure (psi) 2900
Model RoadLazer
Number of Guns 3
Number of Pumps 2
Power Rating (HP) 26.5
Power Rating (kW) 19.8
Series RoadPak HD
Type Truck-Mounted Line Striper
Bead Tank Size (lb) 1350
Mount Type Slide-In Mounting Frame

;
