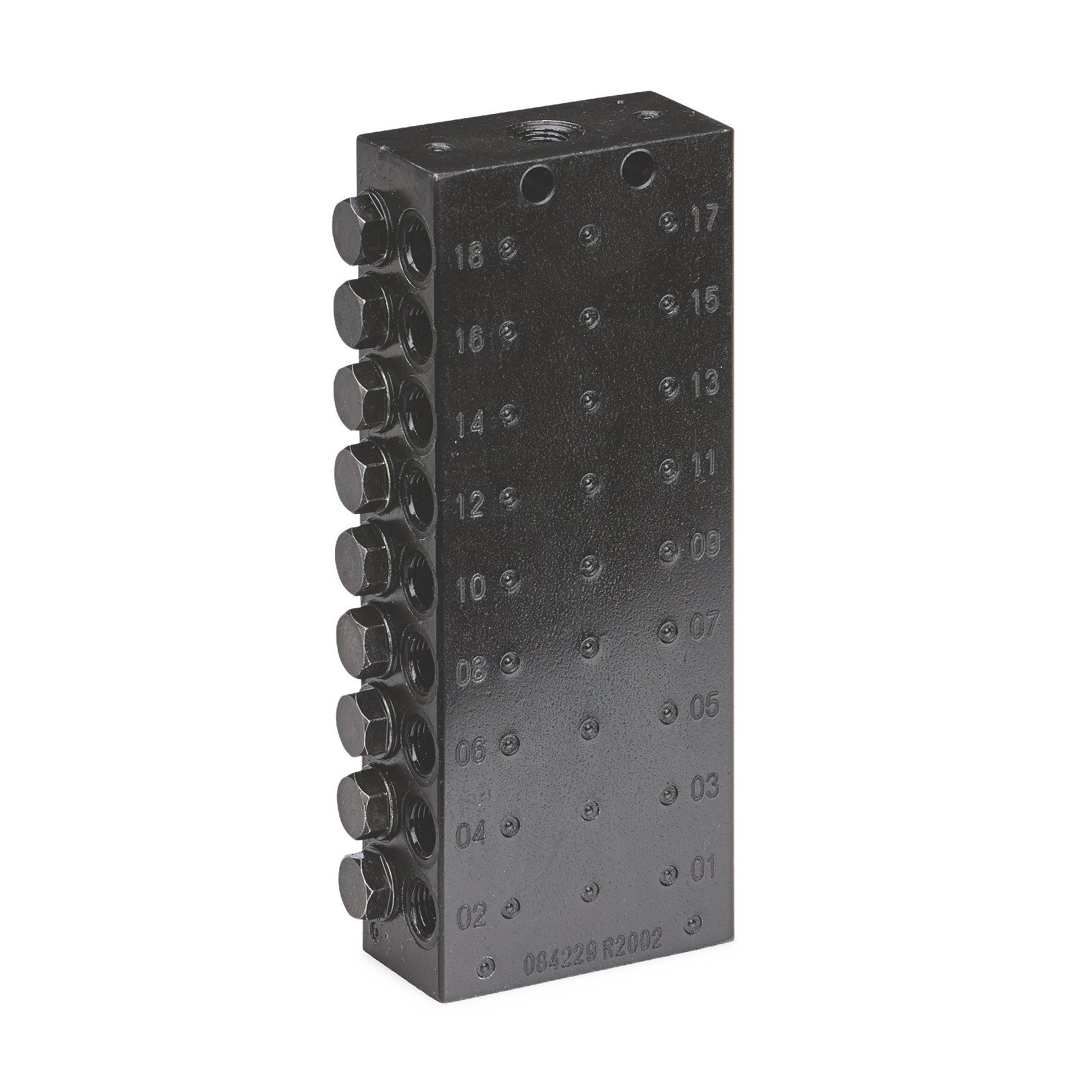

Graco CSP Divider Valve, 1/8 inch NPT, 18 Outlets
Graco CSP Divider Valve, 1/8 inch NPT, 18 Outlets

Graco CSP Divider Valve, 1/8 inch NPT, 18 Outlets

Regular price
$428.00
Sale price
$428.00
Quantity must be 1 or more


Compact Series Progressive (CSP) valve with broad market versatility. Combine with field-proven G-Series pumps for a complete system solution.

  • 1/8 in. NPT inlet

  • Space efficient design with 18 outlets, without indicator

  • Outlets can be combined to meet larger bearing needs

  • Built-in durability with Zinc Iron plating to stand up to harsh environments

  • High output pressure - maximum working pressure of 350 bar (5076 psi) for both oil and grease

UPC Product: 00755652413424
Family Code: FAMMPM
Unit of Measure: EA
Height: 1.5 IN   |  3.81 CM
Length: 7.3 IN   |  18.542 CM
Width: 4.2 IN   |  10.668 CM
Volume: .027 FT3   |  .001 M3
Chargeable Weight: 4.41 LBS  | 2 KG

Technical Specifications

Minimum Working Pressure (bar) 15
Maximum Working Pressure (psi) 5076
Outlet Size (mm) M10
Minimum Working Pressure (psi) 217.5
Inlet Thread Type NPT
Inlet Size (in) 0.125
Number of Outlets 18
Minimum Output Volume (cm³) 0.2
Maximum Working Pressure (bar) 350
Maximum Operating Temperature (°F) 212
Cycle Indicator None
Outlet Thread Gender Female
Minimum Working Pressure (kPa) 1500
Maximum Working Pressure (kPa) 34974
Maximum NLGI Grade #2
Material Carbon Steel
Inlet Size (mm) 3.1750
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 100
Inlet Size (cm) 0.3175
Type Divider Valve
Divider Valve Series CSP
Application On-Road Vehicles, Off-Road Equipment
Model Trabon
Series CSP
Discharge Per Piston Stroke (in³) N/A
