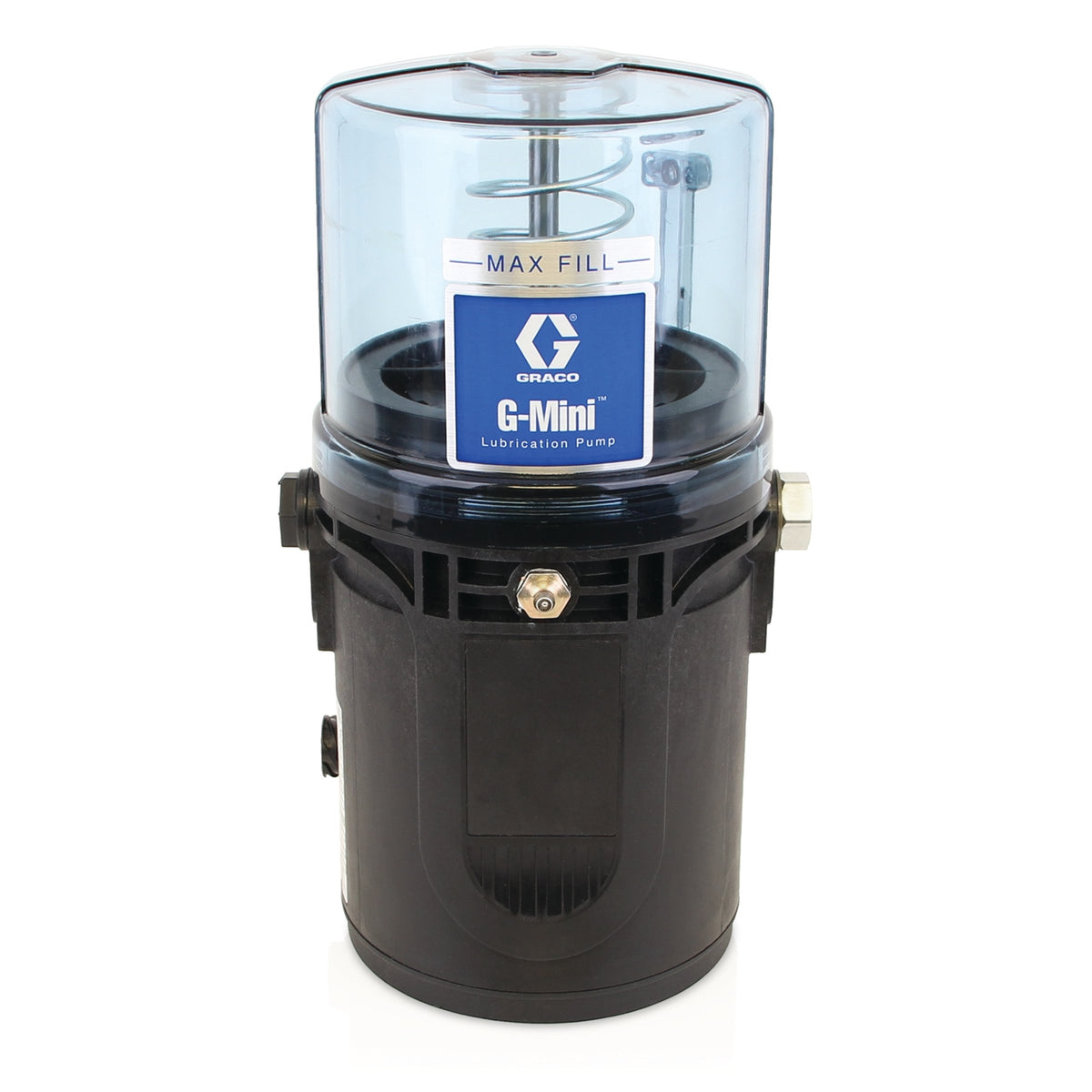

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication with a small footprint to suit more types of machine. Use it to simplify everyday maintenance, extend life cycles and optimise uptime. It’s rugged and tough, perfect for handling the daily 24/7 rigours of any job – however big or small. Best of all, it comes with a modest price tag – boosting your productivity and profitability.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Follower Plate and Stir Paddle – this unique combination combats oil separation while ensuring the pump element ‘loading chamber’ is always full.
- 5-Wire CPC Power Cable – this multifunctional cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
- 1 litre reservoir option
- One Pump Element – 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)
- No controller – pair with either an external controller or PLC.
- Rugged construction – designed to withstand the harshest of environments; IP69K rated.
UPC Product: 00755652992189
Family Code: FAMLPM
Unit of Measure: EA
Height:
39.37 CM
| 15.5 IN
Length:
11.825 IN
| 30.036 CM
Width:
11.825 IN
| 30.036 CM
Volume:
1.254 FT3
| .036 M3
Chargeable Weight:
13.057 LBS
| 5.92 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy |
| Compatible Material | Grease |
| Fluid Inlet Type | 用于加注储罐的加油嘴接头, リザーバー充填用の管継ぎ手, Zerk Fitting to Fill Reservoir, Zerk fitting to fill reservoir, Raccord Zerk au réservoir de remplissage, Conexión de la grasera Zerk para llenar el depósito, 저장소 채우기용 저크 피팅, Schmiernippel zum Befüllen des Schmiermittelbehälters, Smeernippel voor het vullen van het reservoir |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | 递进式, 先進的シリーズ, Series Progressive, Series Progressive, Série Progressive, Serie progresiva, 프로그레시브 시리즈, Progressivsystem, Progressive-serie |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Working Pressure (bar) | 280 |
| Maximum Working Pressure (psi) | 4061 |
| Minimum Operating Temperature (°C) | -15 |
| Minimum Operating Temperature (°F) | 5 |
| Model | G-Mini |
| Reservoir Size (L) | 1 |
| Voltage (V dc) | 24 |
| Weight (lb) | 8.8 |
| Wetted Material | Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Amorphous Polyamide, Nylon |
| Compatible Metering Device | Series Progressive |
| Control Options | External Controller |
| IP Rating | IP69K |
| Maximum Flow Rate (ci/min) | 3 |
| Maximum Voltage (V dc) | 32 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | Up to 2 |
| Overall Depth (in) | 6.57 |
| Overall Height (in) | 12.2 |
| Overall Width (in) | 6.97 |
| Power Connection Type | CPC |
| Voltage | 24 |
| Approvals | CE, EAC |
