Designed to custom fit lubrication systems and control when sections or zones of the system will receive lubricant
Normally Closed
DC models meet typical application requirements

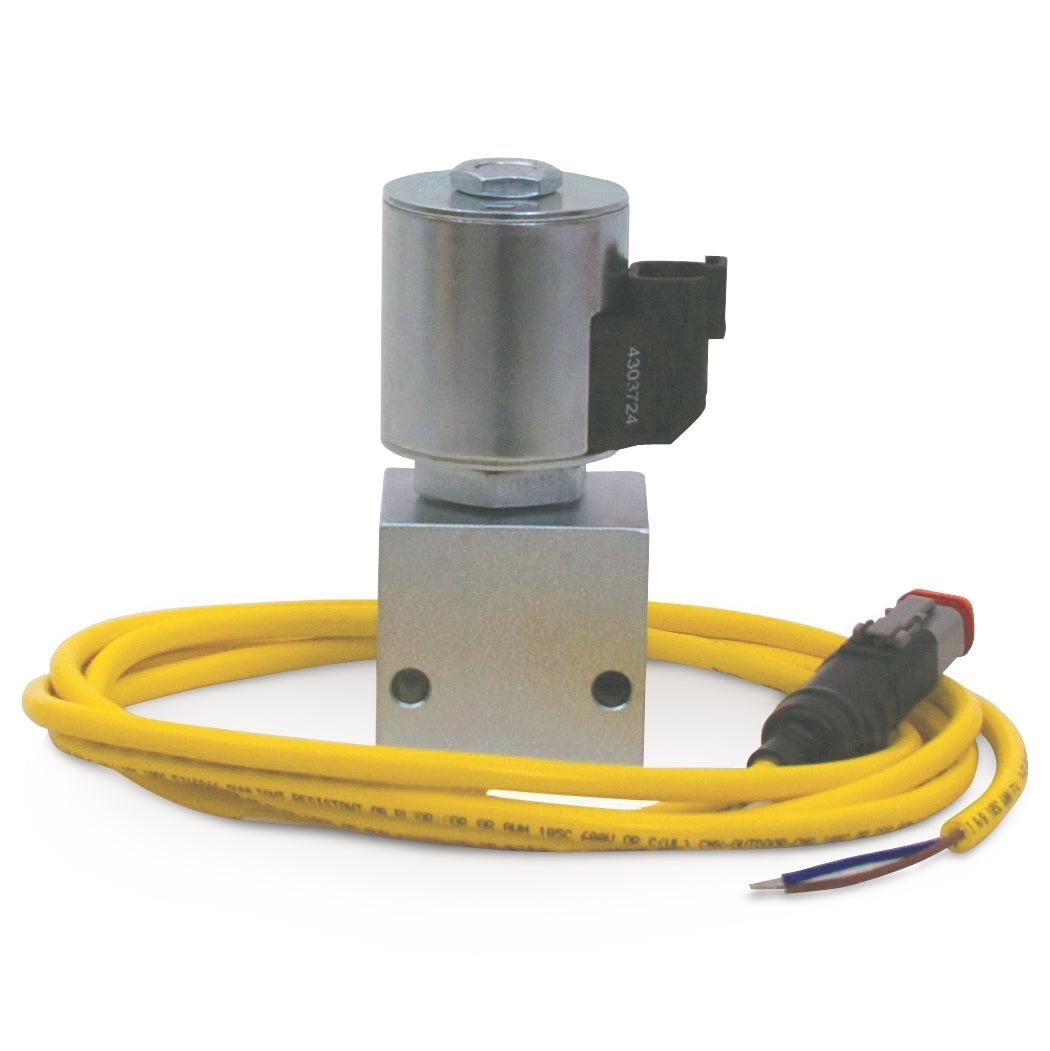

Two-way valve, 24 VDC, normally open, Deutsch cable, 3500 psi (241 bar)
UPC Product: 633955170513
Family Code: FAMMPM
Unit of Measure: EA
Height:
6 IN
| 15.24 CM
Length:
6 IN
| 15.24 CM
Width:
5 IN
| 12.7 CM
Volume:
.104 FT3
| .003 M3
Chargeable Weight:
3.2 LBS
| 1.45 KG
Technical Specifications
| Amperage (A) | 0.8 |
|---|---|
| Compatible Material | Grease |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Type | NPT |
| IP Rating | IP69K |
| Maximum NLGI Grade | #2 |
| Outlet Size (cm) | 0.635 |
| Outlet Size (in) | 1/4 |
| Outlet Size (mm) | 6.35 |
| Outlet Thread Type | NPT |
| Overall Height (cm) | 9.779 |
| Overall Height (in) | 3.85 |
| Overall Height (mm) | 97.79 |
| Overall Width (cm) | 5.08 |
| Overall Width (in) | 2 |
| Overall Width (mm) | 50.8 |
| Power Connection Type | Deutsch DT Series 2 Pin |
| Power Rating (W) | 18.2 |
| Type | Zone Valve |
| Wetted Material | Carbon Steel, Buna-N |
