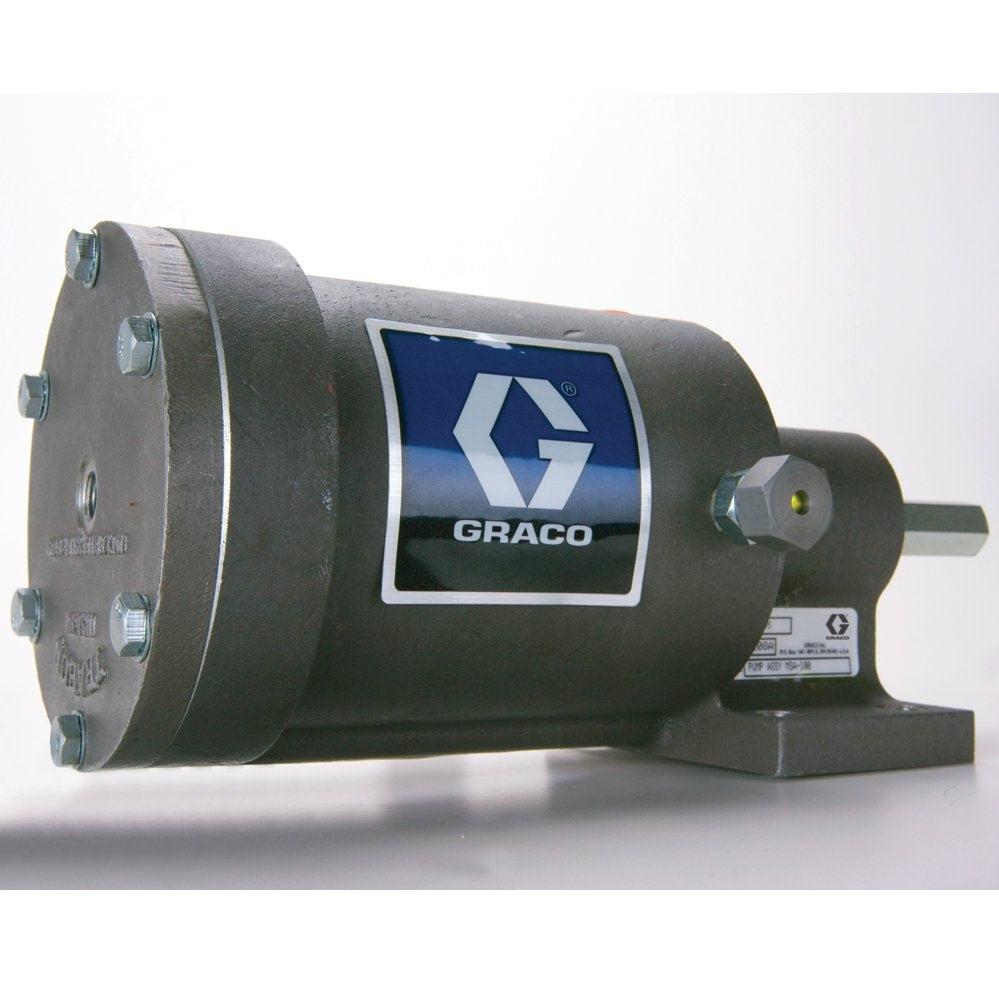

Graco MSA-100™ Pneumatic Pump

Graco MSA-100™ Pneumatic Pump

Regular price
$2,610.00
Sale price
$2,610.00
Quantity must be 1 or more


MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and larger outputs are required.

  • Ideal for applications where space is a premium
  • Handles high pressure lubricant feed of direct line intake
  • Used with or without a reservoir for the ultimate flexibility
  • Lubriquip part number 140-000-171
UPC Product: 00633955348745
Family Code: FAMMPM
Unit of Measure: EA
Height: 12 IN   |  30.48 CM
Length: 13.2 IN   |  33.528 CM
Width: 12 IN   |  30.48 CM
Volume: 1.1 FT3   |  .031 M3
Chargeable Weight: 16 LBS  | 7.26 KG

Technical Specifications

Type Pneumatic Piston Pump
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Type NPSF
Application In-Plant Machinery
Compatible Material Oil, Grease
Fluid Outlet Size (in) 0.25
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Type NPSF
Material Aluminum
Maximum Air Inlet Pressure (bar) 9.65
Maximum Air Inlet Pressure (kPa) 965
Maximum Air Inlet Pressure (psi) 140
Maximum Cycle Rate (CPM) 30
Maximum Fluid Output Pressure (psi) 3000
Maximum NLGI Grade #2
Maximum Working Pressure (bar) 206.8
Maximum Working Pressure (kPa) 20680
Maximum Working Pressure (psi) 3000
Model MSA
Power Type Pneumatic
Series 100
Compatible Metering Device Series Progressive
Maximum Fill Inlet Pressure (bar) 34.5
Maximum Fill Inlet Pressure (kPa) 3450
Maximum Fill Inlet Pressure (psi) 500
Overall Depth (cm) 17.6
Overall Depth (in) 6.94
Overall Depth (mm) 176
Overall Height (cm) 14.5
Overall Height (in) 5.69
Overall Height (mm) 145
Overall Width (cm) 32.6
Overall Width (in) 12.83
Overall Width (mm) 326
Maximum Working Pressure (MPa) 20.7
Minimum Air Inlet Pressure (psi) 60
maximum_fluid_output_pressure_bar 207
