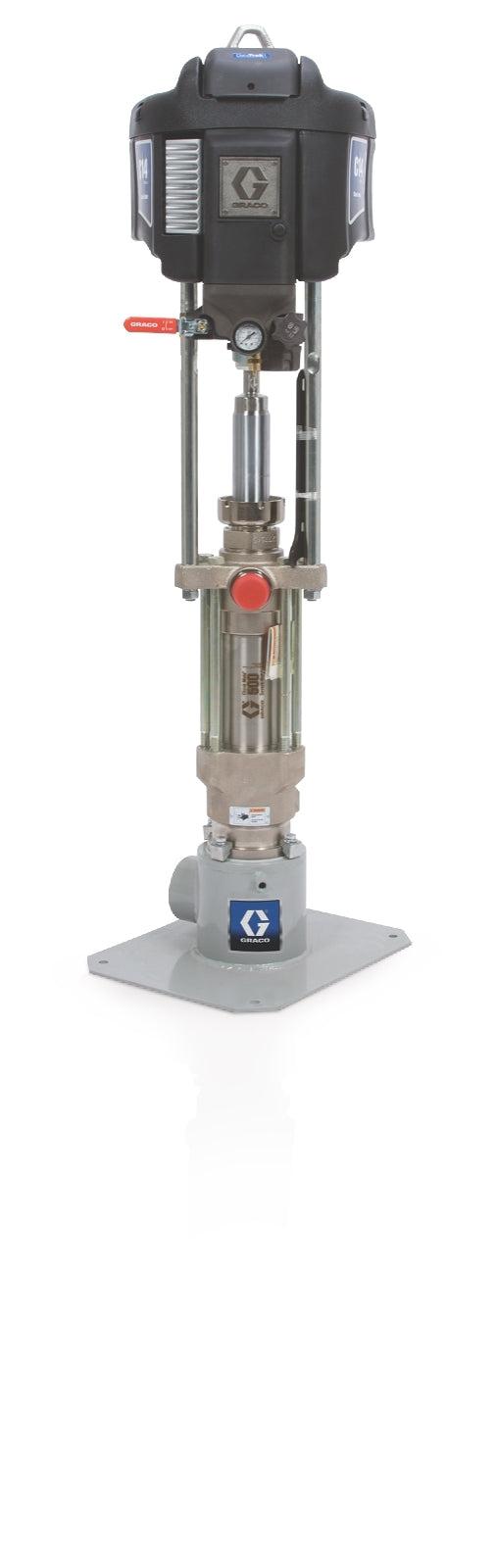

Move large amounts of grease fast! Proven Graco NXT technology gives you the best value for the money - fewer parts, faster repairs and long-lasting durability.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
- Intuitive, easy-to-use controls give you pump diagnostics to track material usage and plan for routine maintenance
- Long-lasting durability - Check-Mate pump is a time-tested, proven performer
- Reduces icing and noise - The NXT air motor is up to 50% quieter than previous models
- Integrated ram and pump control is easy to use
-
NXT Air Motor
- Modular design for easier maintenance
- Rugged body armor won't rust or dent
- Highest technology air motor on the market
-
Integrated Air Controls
- Lockable easy-turn regulator
- Front-mounted for easy access
- Compact and modular
- Built-in filtration
-
Xtreme® Coupler
- Quick-disconnect coupler for easy maintenance
-
Replaceable Outlet Fitting
- Reduces repair costs
-
Piston Valve with Floating Piston Seal
- For maximum pressure balance over a range of material viscosities
-
Replaceable Seat
- Minimizes service costs
UPC Product: 00633955550438
Family Code: FAMNXT
Unit of Measure: EA
Height: 54.864 CM | 21.6 IN
Length: 50.4 IN | 128.016 CM
Width: 16.8 IN | 42.672 CM
Volume: 10.584 FT3 | .3 M3
Chargeable Weight: 164 LBS | 74.39 KG
Technical Specifications
| Application | Grease |
|---|---|
| Compatible Material | Grease |
| Fluid Outlet Size (cm) | 2.54 |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Size (mm) | 25.4 |
| Maximum Flow Rate (GPM) | 3.2 |
| Maximum Working Pressure (bar) | 434 |
| Maximum Working Pressure (kPa) | 43000 |
| Maximum Working Pressure (psi) | 6200 |
| Air Inlet Size (in) | 0.75 |
| Wetted Material | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Electroless Zinc Plating, Electroless Chrome Plating, PTFE, UHMWPE |
| Type | Piston Pump Package |
| Maximum Working Pressure (MPa) | 43.4 |
| Model | Check-Mate |
