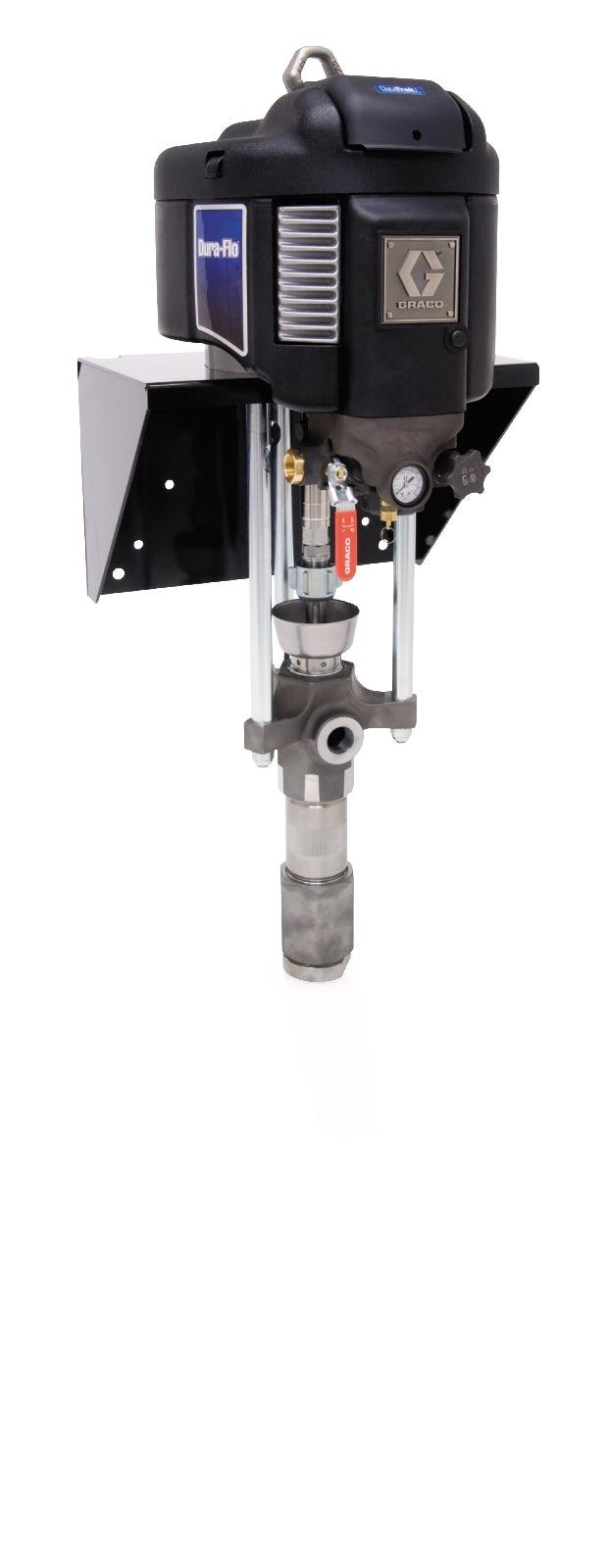

Tested to outperform and outlast all other pumps on the market – with its long-life design and intuitive, easy-to-use controls – the NXT Dura-Flo pump is the best value for the money. Fewer parts, faster repairs and long-lasting durability.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
-
Optional DataTrak™ Control
- Intuitive, easy-to-use DataTrak control gives you pump diagnostics, material usage tracking and pump runaway protection.
-
NXT Air Motor
- Modular design for easier maintenance with rugged body armor that won’t rust or dent.
-
Modular Air Valves
- Easy-to-repair valve eliminates stalling and contains de-icing controls.
-
Integrated Air Controls
- Easy-turn, lockable regulator is front-mounted for easy access. Compact and modular with built-in filtration.
-
Piston Valve with Floating Piston Seal
- For maximum pressure balance over a range of material viscosities.
UPC Product: 00633955370494
Family Code: FAMNXT
Unit of Measure: EA
Height: 0 IN | 0 CM
Length: 0 IN | 0 CM
Width: 0 IN | 0 CM
Volume: 0 FT3 | 0 M3
Chargeable Weight: 0 KG | 0 LBS
Technical Specifications
| Application | Industrial |
|---|---|
| Compatible Material | Oil |
| Fluid Inlet Size (cm) | 5.0800 |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 50.8000 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Includes | 12.1:1 Dura-Flo 泵, 12:1 Dura-Flo ポンプ, 12.1:1 Dura-Flo Pump, Bomba Dura-Flo 12.1:1, 12.1:1 Dura-Flo 펌프, 에어 모터, 하부, 벽 장착형, 空气马达, エアモーター, Air Motor, motor neumático, 下缸体, 下側, Lower, pie de bomba, 壁挂式, 壁面取付け, Wall Mount, montaje en pared |
| Maximum Working Pressure (bar) | 82 |
| Maximum Working Pressure (kPa) | 8200 |
| Maximum Working Pressure (psi) | 1190 |
| Motor Type | Pneumatic |
| Mount Location | Wall Mount |
| Pump Ratio | 12:1 |
| Maximum Flow Rate (gpm @ 60 cpm) | 9.2 |
| Air Inlet Size (in) | 0.75 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Wetted Material | CS, Leather |
| Maximum Fluid Working Pressure (psi) | 1190 |
| Type | Piston Pump Package |
| Power Type | Pneumatic |
| Maximum Working Pressure (MPa) | 8.2 |
| Maximum Air Working Pressure | 100 |
| Model | Dura-Flo |
