While critical bearings are hard at work on your largest machine tools, Graco's line of centralised and automatic lubrication systems is delivering precise amounts of lubricant at frequent intervals to every lube point–even in hard to reach areas.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.

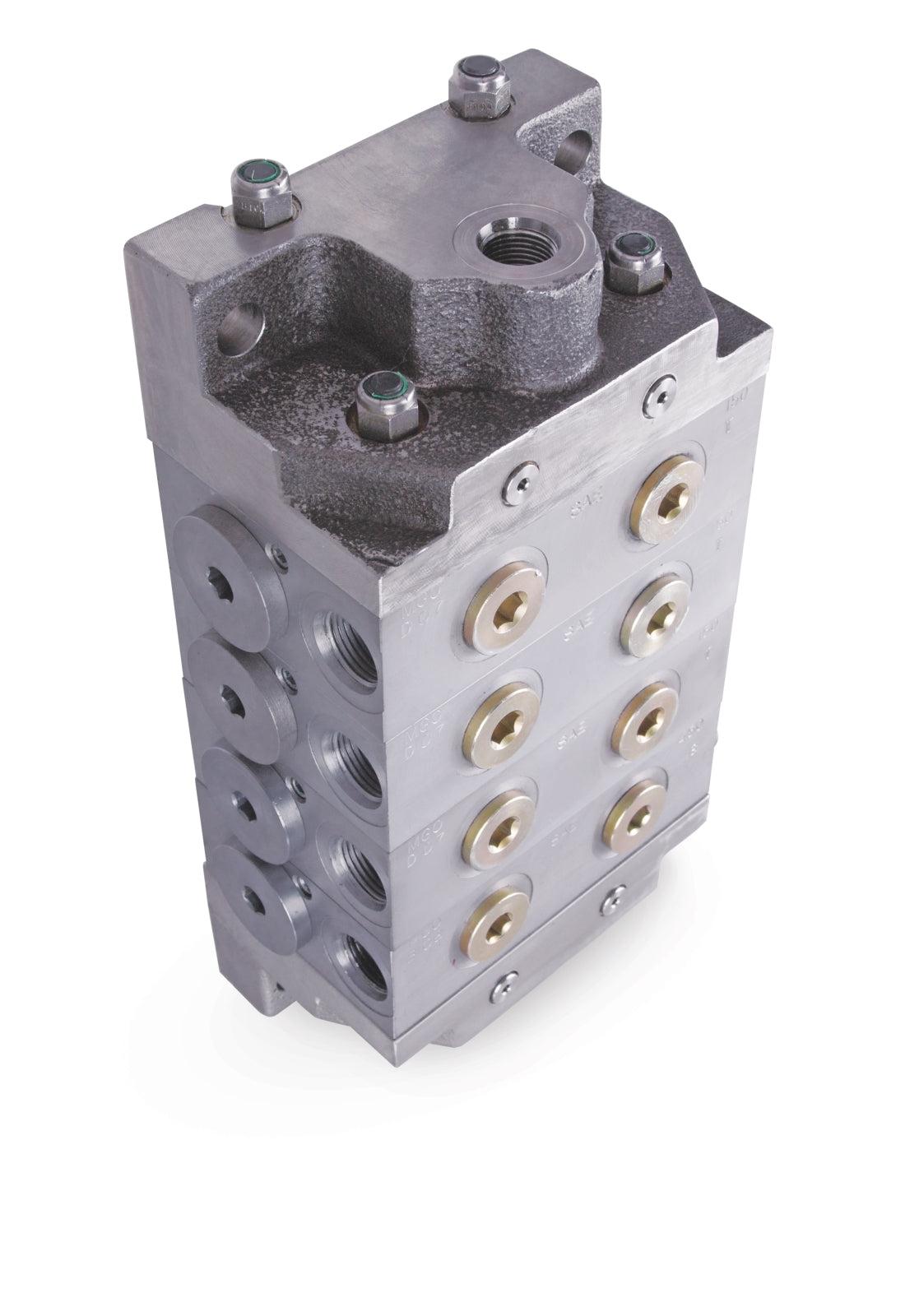

- Lubricates large bearings
- Delivers up to 19.7 cubic cm (1.2 cubic in.) per cycle and has a wide range of accessories to monitor critical lubrication points
- Largest output available with 22 outlets and 11 working sections
- SAE porting for a sealed outlet to ensure leak-free life
- TFE standard seals allow for maximum fluid compatibility and high temperature use
UPC Product: 00633955656208
Family Code: FAMMPM
Unit of Measure: EA
Height: 12 IN | 30.48 CM
Length: 24 IN | 60.96 CM
Width: 10.8 IN | 27.432 CM
Volume: 1.8 FT3 | .051 M3
Chargeable Weight: 60 LBS | 27.22 KG
Technical Specifications
| Maximum Working Pressure (psi) | 6000 |
|---|---|
| Inlet Thread Type | SAE |
| Maximum Working Pressure (bar) | 413 |
| Cycle Indicator | None |
| Outlet Thread Type | SAE |
| Maximum Working Pressure (kPa) | 41300 |
| Maximum NLGI Grade | #2 |
| Material | Carbon Steel |
| Compatible Material | Oil, Grease |
| Type | Divider Valve |
| Divider Valve Series | MGO |
| Application | In-Plant Machinery |
| Model | Trabon |
| Series | MGO |
